Electronic Brake Control Module

COMPONENT

VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U)

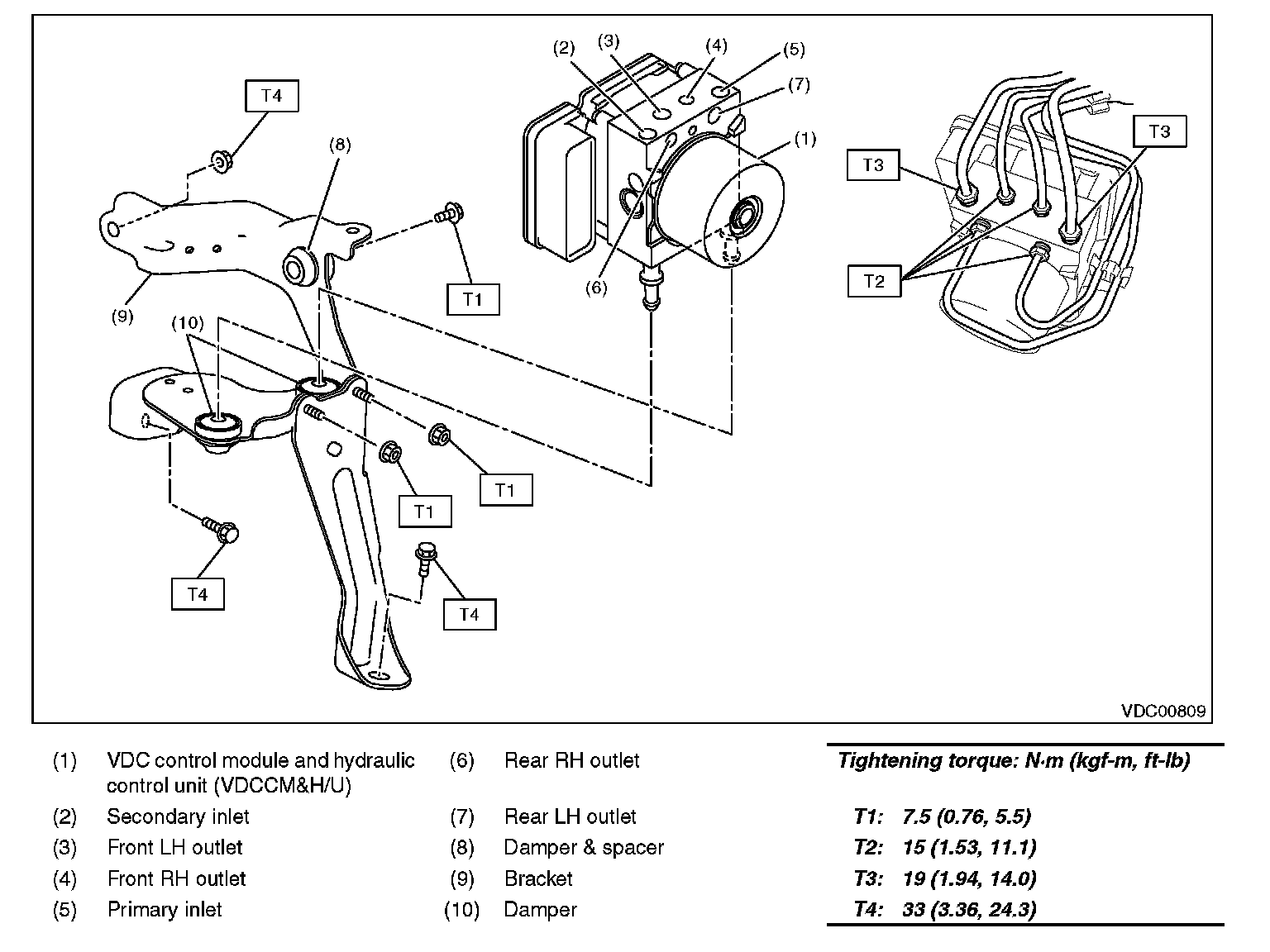

^ Models without EyeSight

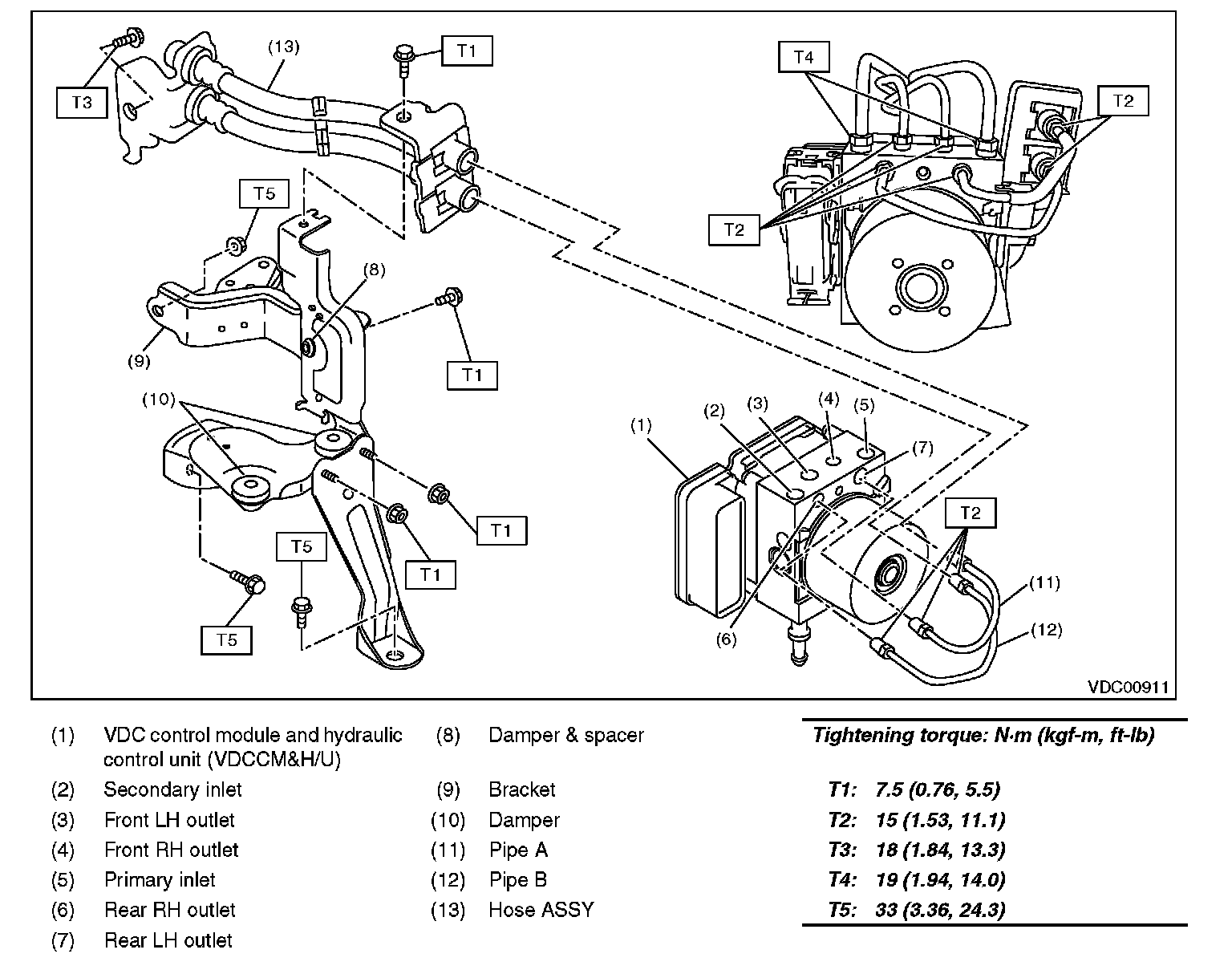

^ Models with EyeSight
