Front Axle Disassembly

Front Axle

DISASSEMBLY

1) Remove the four bolts from the front housing, and remove the front hub unit bearing and disc cover.





CAUTION:

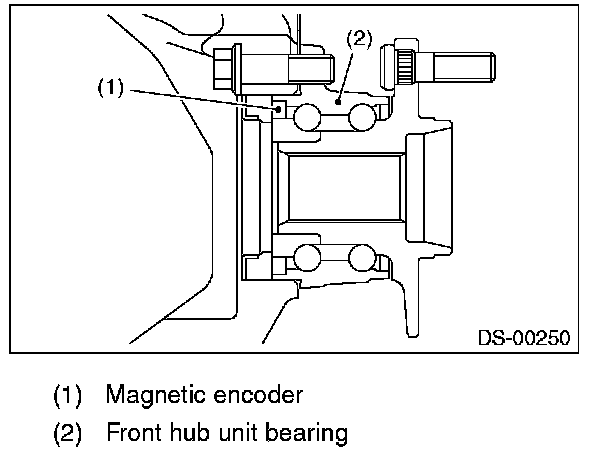

^ Do not get closer the tool which charged magnetism to magnetic encoder.
^ Be careful not to damage the magnetic encoder.





2) Disassemble the front hub unit bearing.
