Installation

Rear Stabilizer

INSTALLATION

CAUTION:
^ Be sure to use a new flange nut.
^ Always tighten bushings with wheels in full contact with the ground and the vehicle at curb weight.

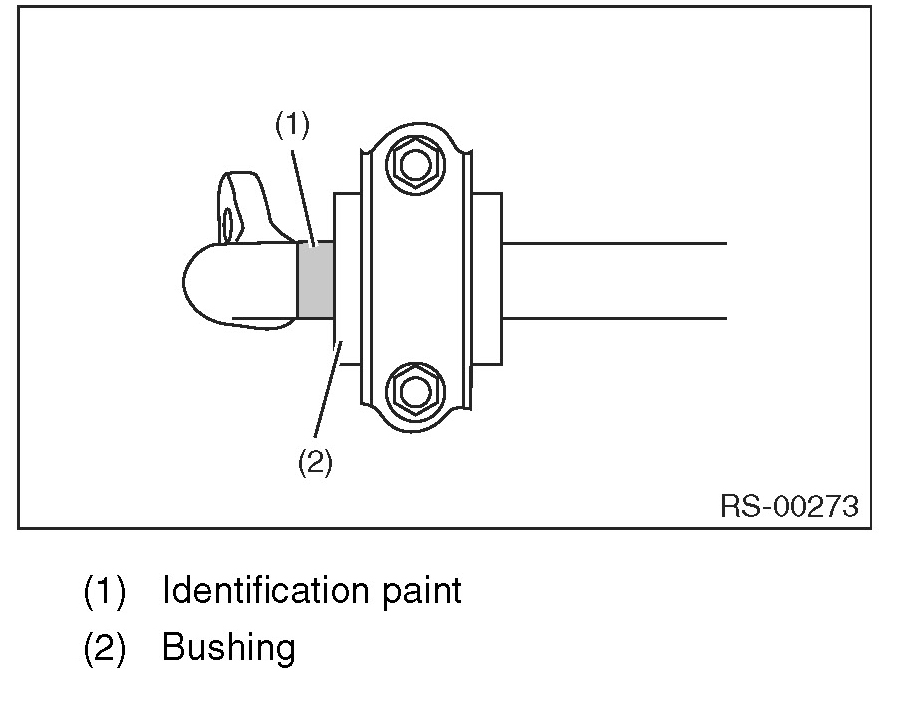

^ When installing, align the edge of identification paint on the stabilizer to the end face of the bushing.





Install in the reverse order of removal.

Tightening torque:
Stabilizer link
60 Nm (6.1 kgf-m, 44 ft-lb)
Stabilizer clamp
38 Nm (3.9 kgf-m, 28 ft-lb)
