Home >> Subaru >> 2012 >> Tribeca F6-3.6L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> Brake Rotor/Disc

Brake Rotor/Disc

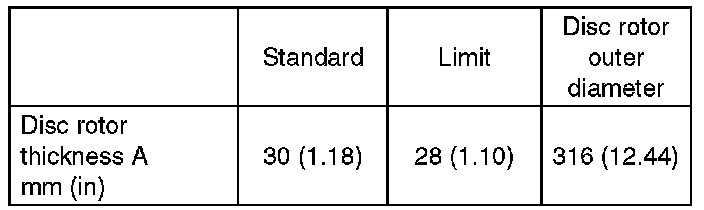

Brake Rotor

Front





Disc rotor runout limit 0.05 mm (0.0020 in)

Rear





Disc rotor runout limit 0.05 mm (0.0020 in)
