Vanity Lamp: Service and Repair
Vanity Mirror Light
REMOVAL
1.
Disconnect the ground cable from battery.
2.

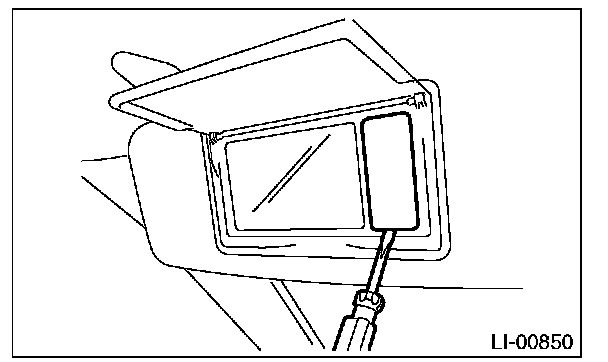

Insert a screwdriver at the edge of the lens, and remove the lens.
3.

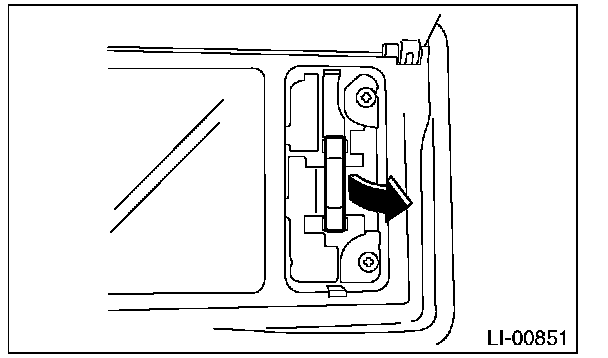

Remove the bulb.
INSTALLATION
Install in the reverse order of removal.
