Driver/Vehicle Information Display: Testing and Inspection

Multi-function Display (MFD) System

INSPECTION

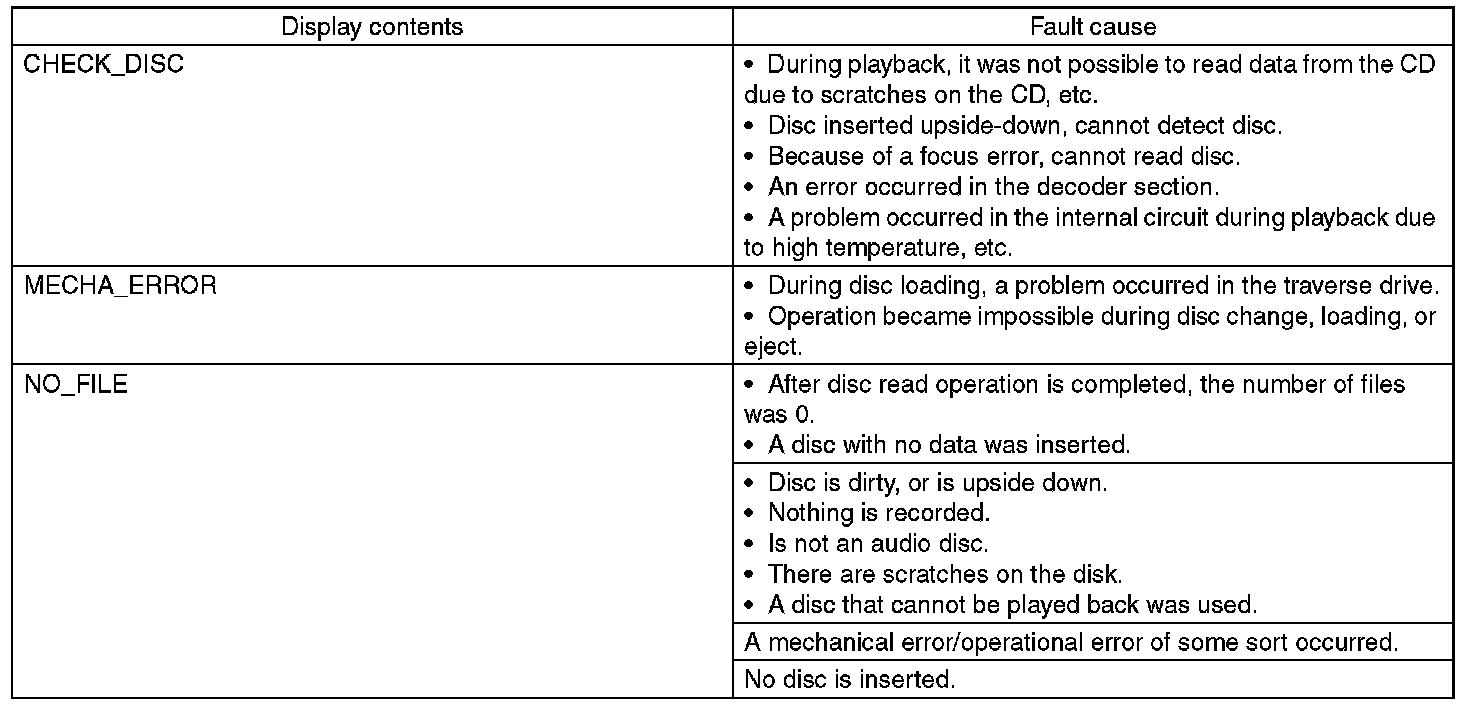

MFD ERROR DISPLAY AND FAULT CONTENT






NOTE: When the above errors are displayed, check the disc, and if no problems can be found, repair or replace the unit.
