Subaru
>>
2012
>>
Tribeca F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

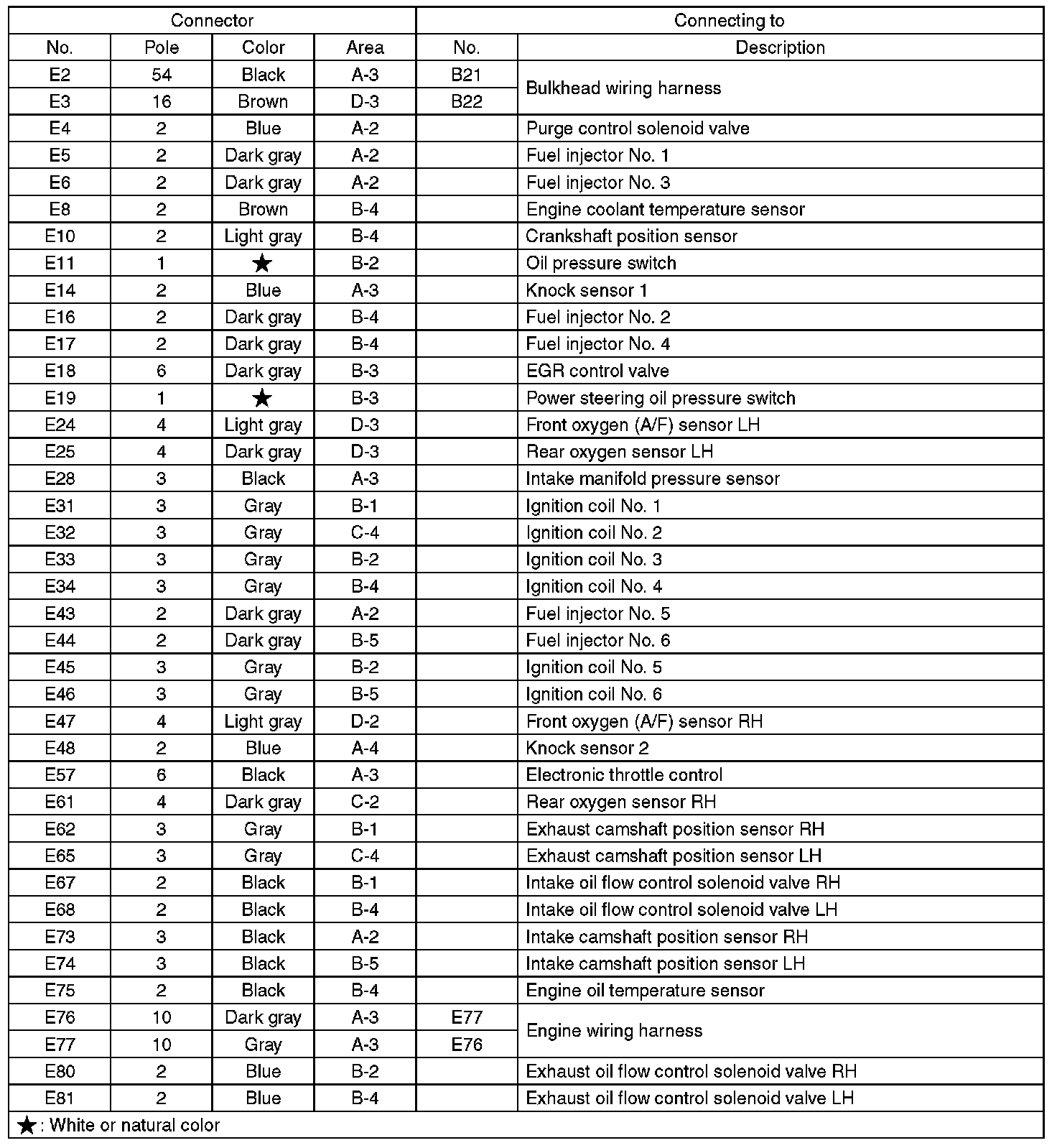

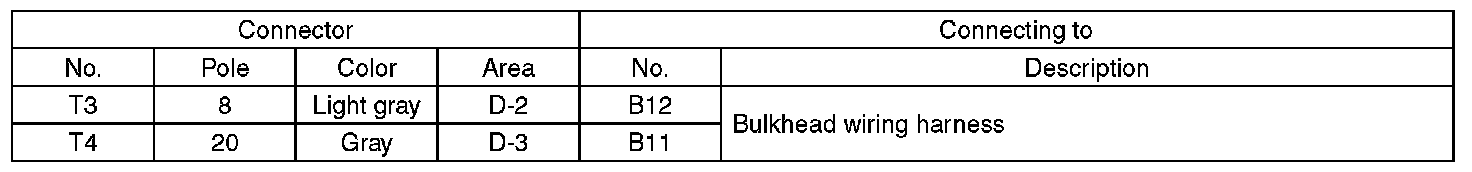

E2-E81 & AT1-AT4 & T3-T4
E2-E81 & AT1-AT4 & T3-T4

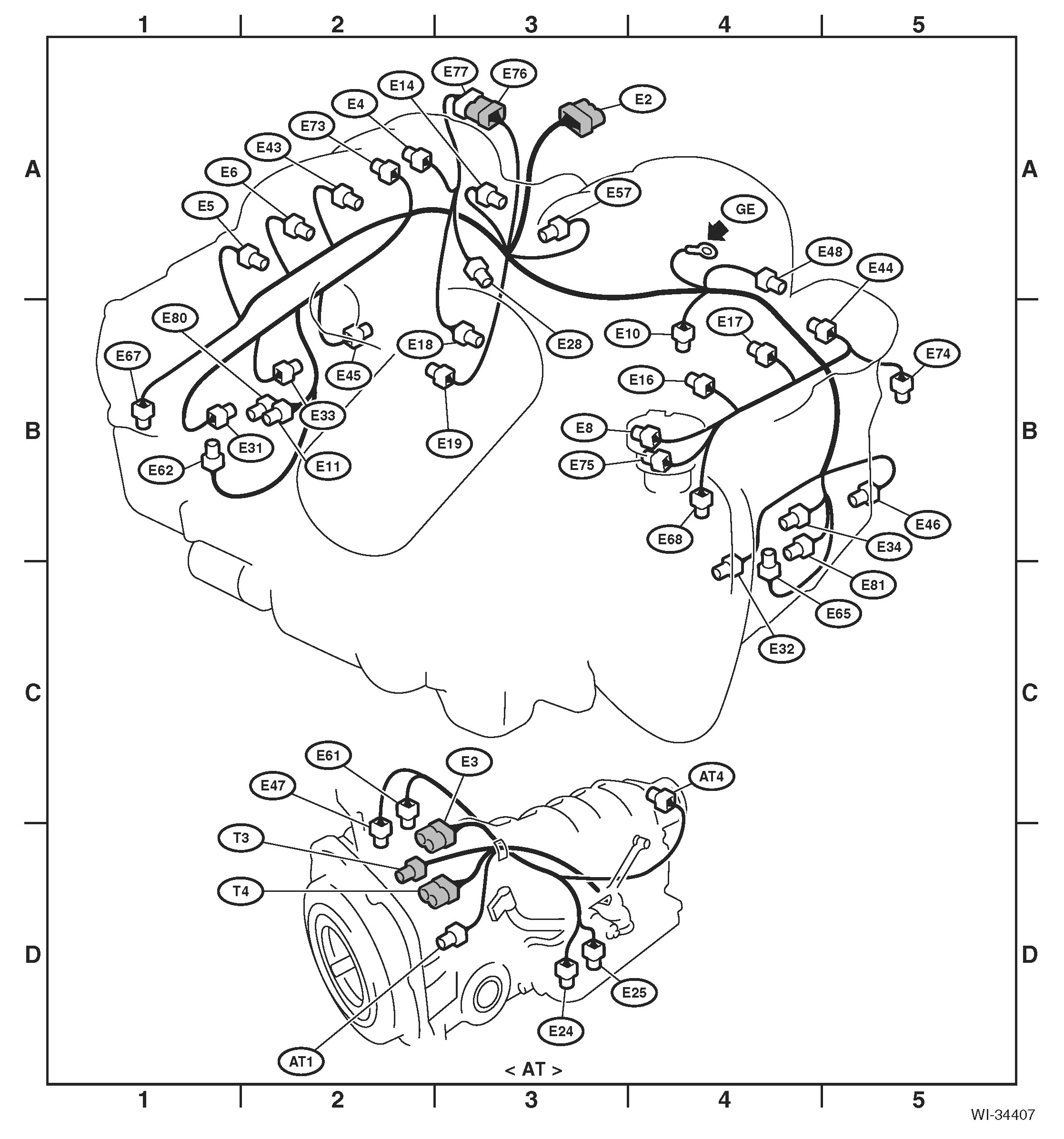

Engine Wiring Harness and Transmission Cord
LOCATION
