Home >> Subaru >> 2012 >> Tribeca F6-3.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> D33-D142 & R26-R248

D33-D142 & R26-R248

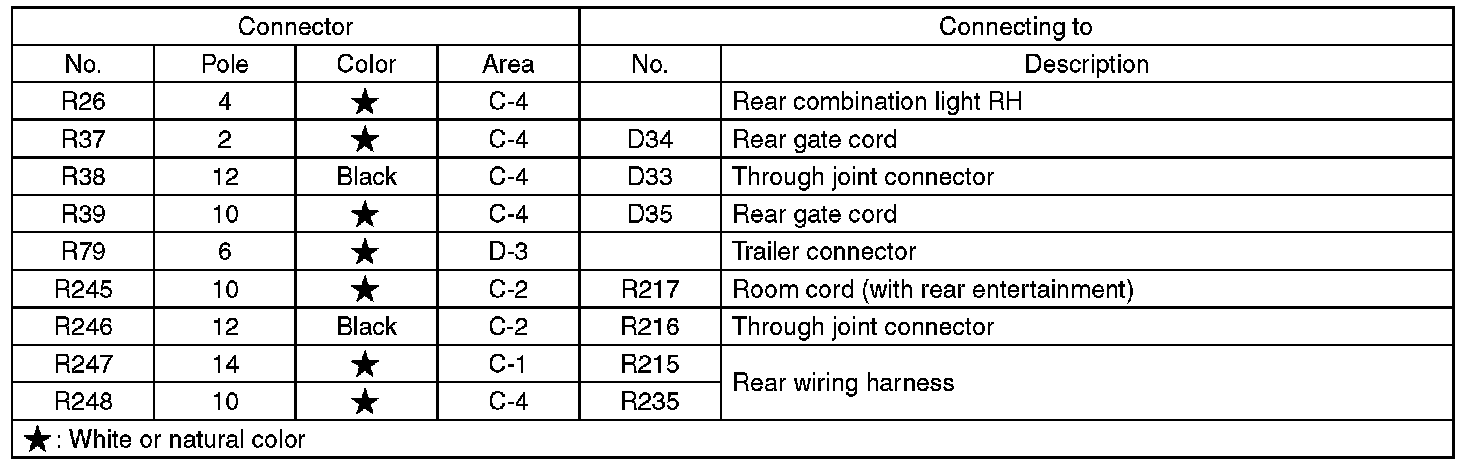

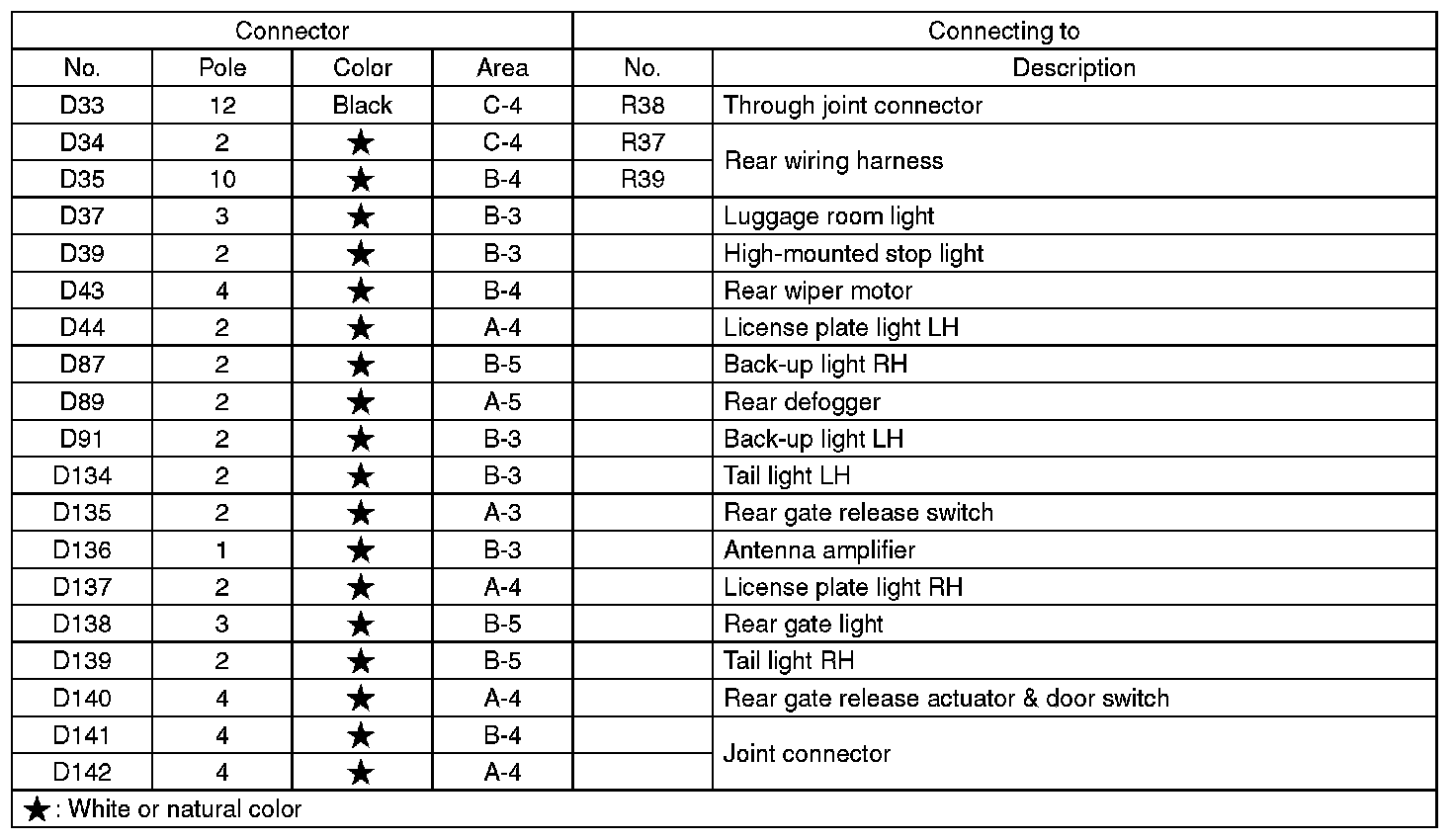

Rear Wiring Harness and Rear Gate Cord

LOCATION
