Mud Flap: Service and Repair

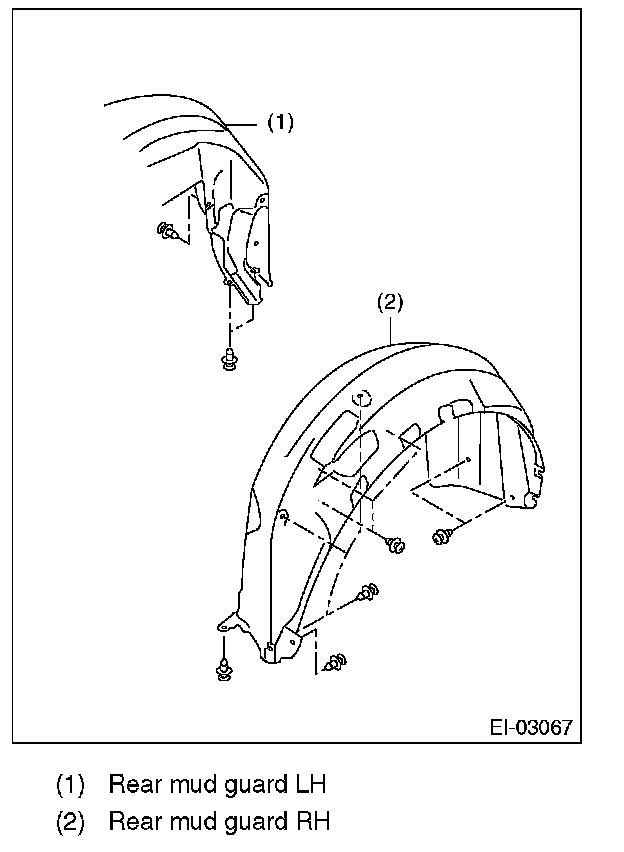

Mud Guard







REMOVAL

1. Remove the wheels.
2. Loosen the clips to remove mud guard.
- Front mud guard







- Rear mud guard







INSTALLATION

Install in the reverse order of removal.
