Sun Shade: Service and Repair

Sunshade

REMOVAL

1. Remove the glass lid.

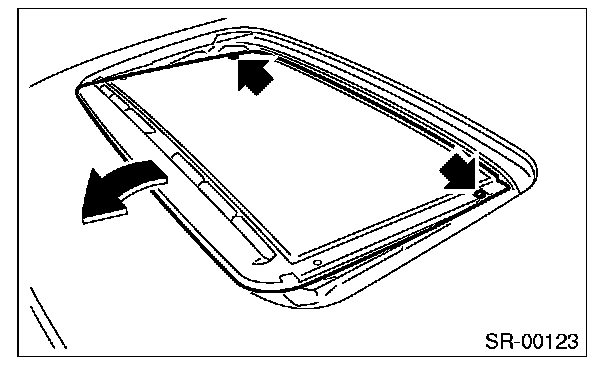

2. Loosen the TORX(R) bolt to remove the front sunshade bracket.







3. Pull the sunshade until the rear sunshade bracket comes into the sight, then loosen the TORX(R) bolts to remove the sunshade.







INSTALLATION

Install in the reverse order of removal.
