Tweeter

Tweeter

REMOVAL

1. FRONT
1. Disconnect the ground cable from the battery.
2. Remove the front door trim.
3. Remove the side deflector duct.

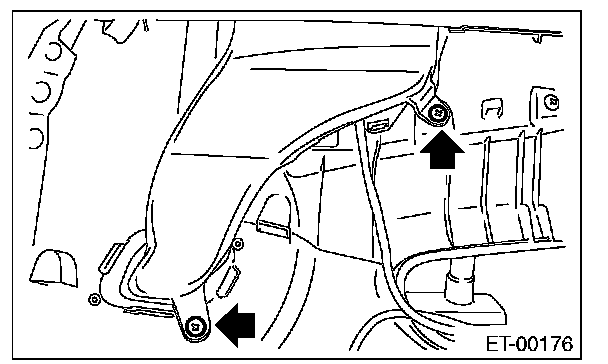

4. Remove the tweeter mounting screws.






5. Remove the tweeter.

2. REAR
1. Disconnect the ground cable from battery.
2. Remove the tweeter from the roof trim.






3. Disconnect the harness connector.

INSTALLATION
Install in the reverse order of removal.
