Security and Locks

Security System

INSPECTION

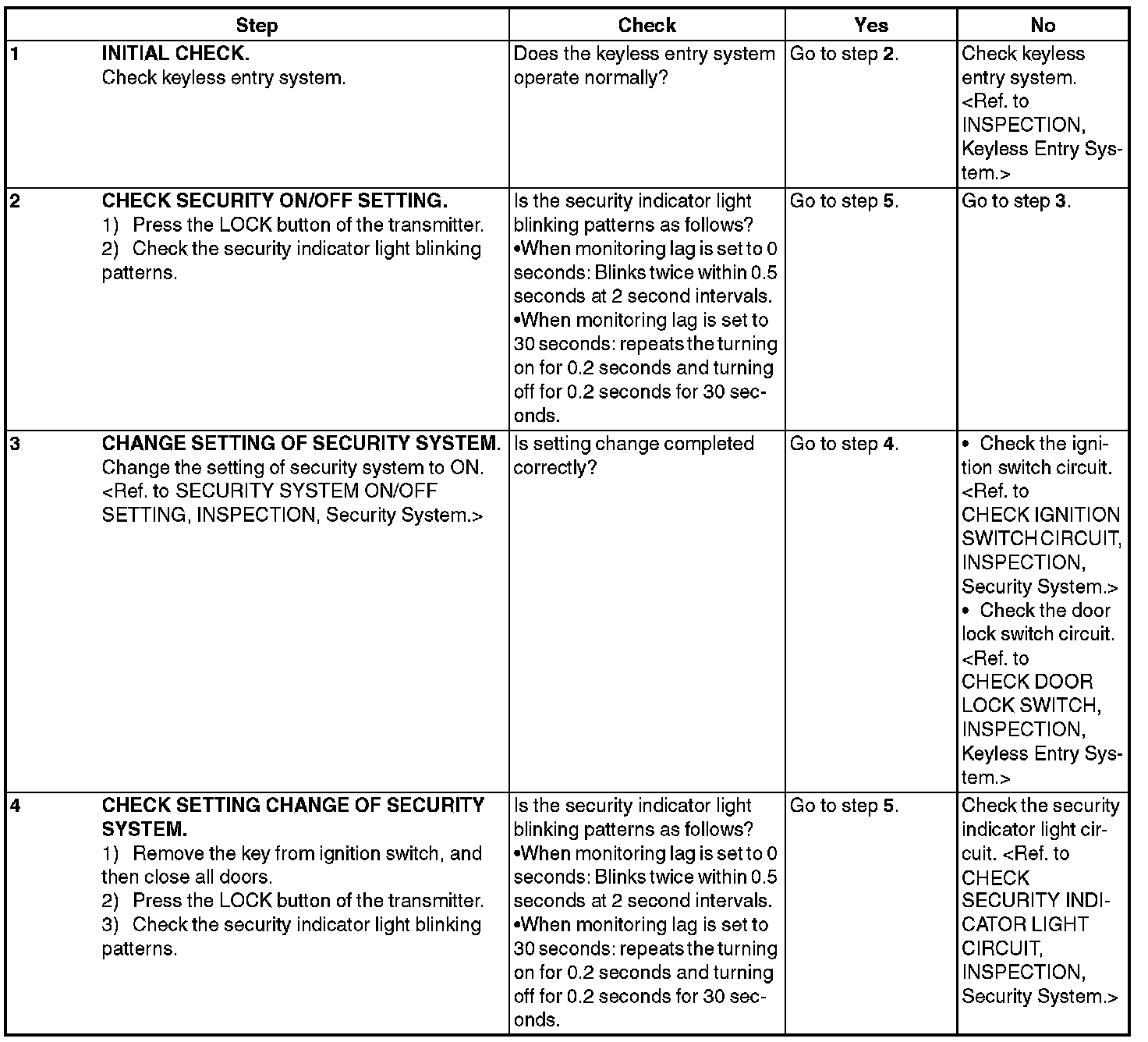

BASIC DIAGNOSTIC PROCEDURE









NOTE: Check the function settings of the body integrated unit if any of the following symptoms appear. Basic Diagnostic Procedure
- The horn does not sound even when the security system operates.
- The horn sounds when setting the security to ON using the keyless transmitter.
