Secondary Speed Sensor Replacement

Secondary Speed Sensor

REMOVAL

CAUTION:
Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.

1) Remove the transmission from the vehicle.

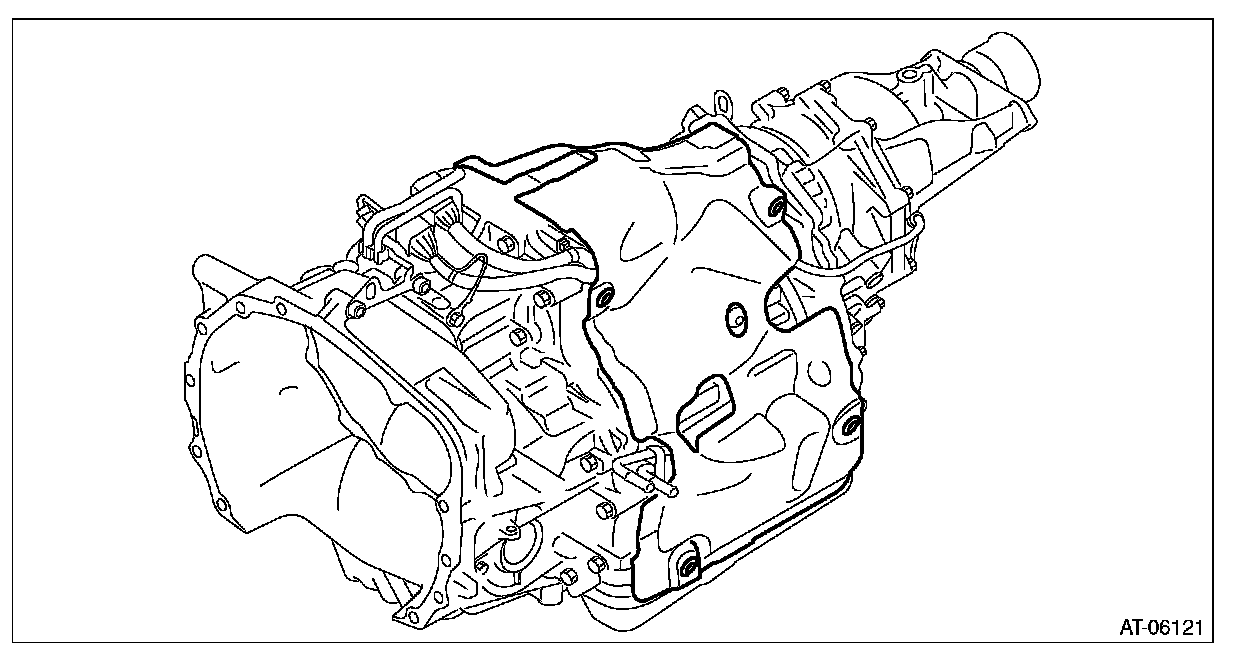

2) Remove the transmission cover on the transmission upper side.





3) Remove the harness connector from secondary speed sensor.

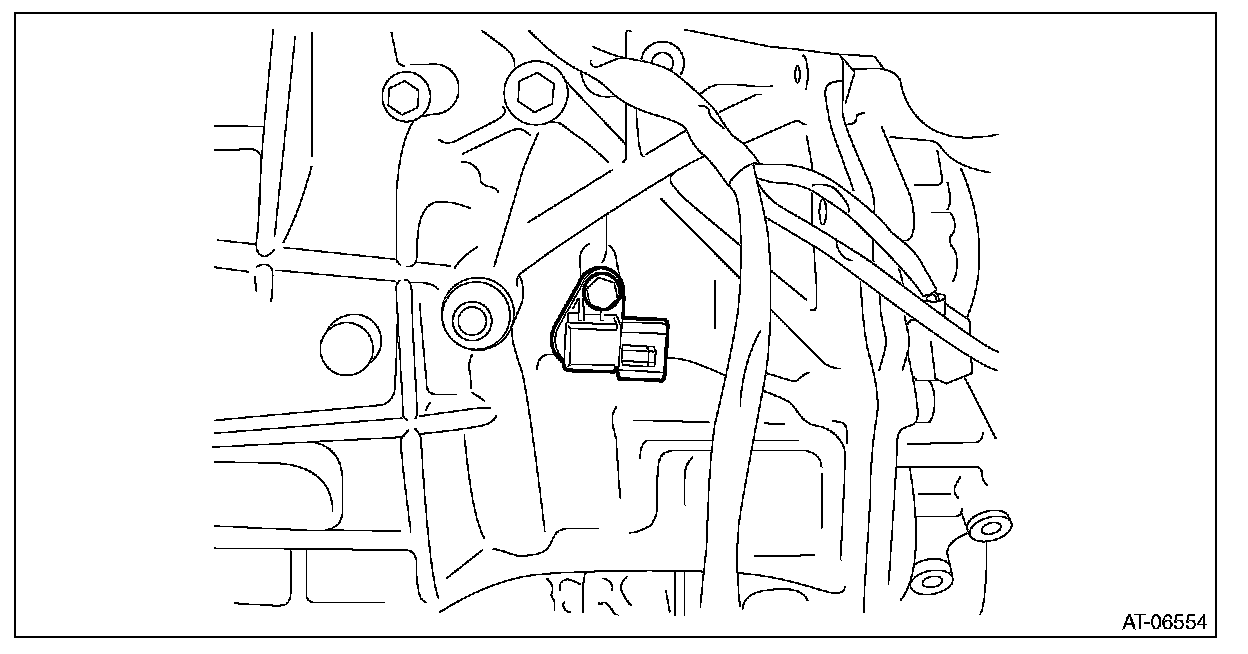

4) Remove the secondary speed sensor.





INSTALLATION

CAUTION:
Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.

Install in the reverse order of removal.

NOTE:
^ Use new O-rings.
^ Apply CVTF to the O-ring.

Tightening torque:
Secondary speed sensor
5 Nm (0.5 kgf-m, 3.7 ft-lb)
Transmission cover
8 Nm (0.8 kgf-m, 5.9 ft-lb)
