CVT Fluid Condition Check

CVTF

CONDITION CHECK

NOTE:

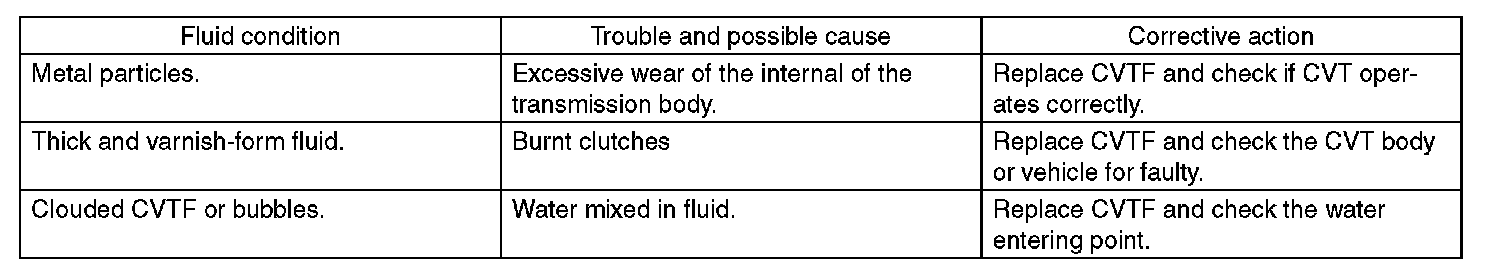

When replacing CVTF, determine the condition inside the transmission body by inspecting the drained CVTF.
