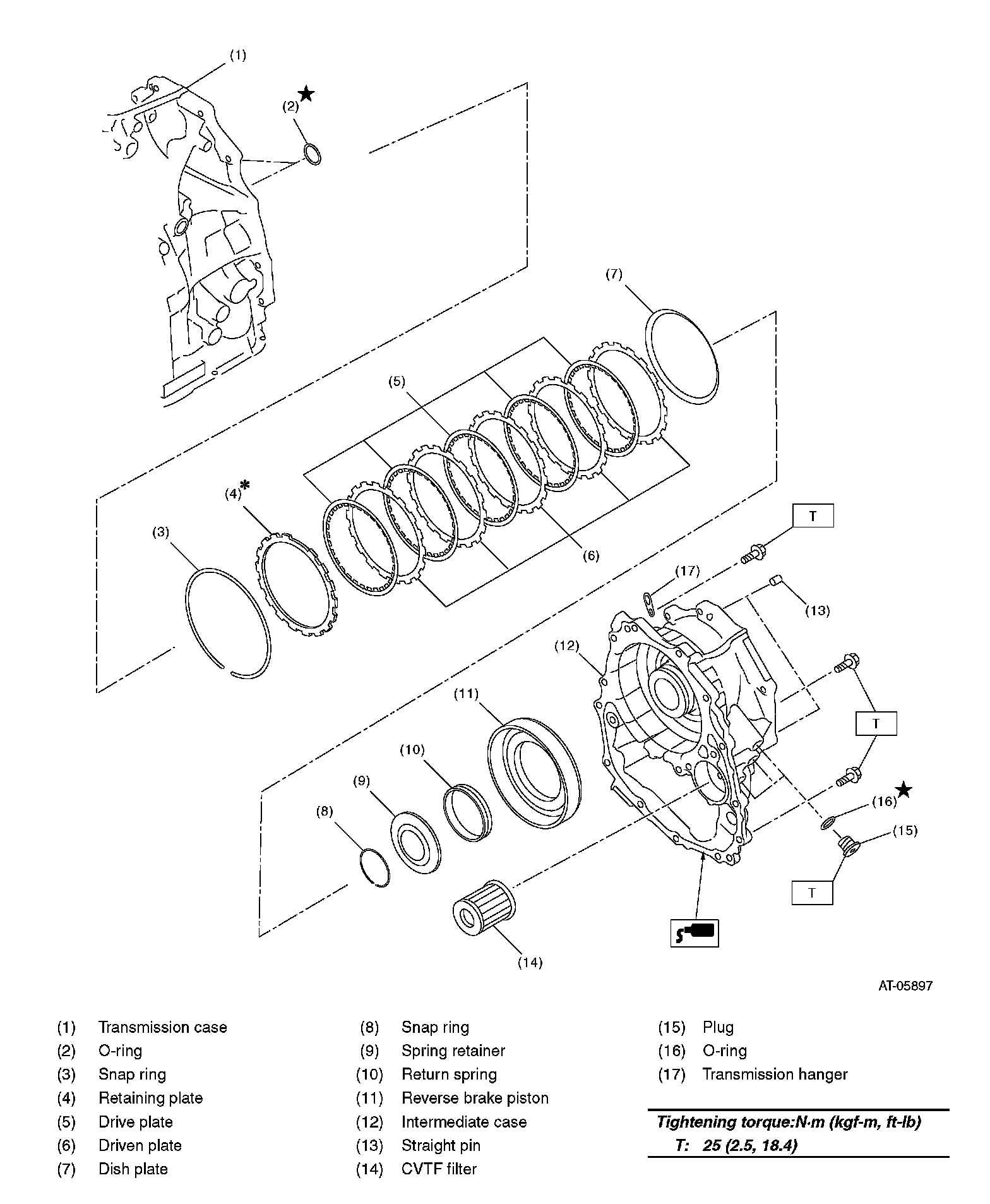

Reverse Brake Assembly and Intermediate Case
Reverse Brake Assembly and Intermediate Case
REVERSE BRAKE ASSEMBLY AND INTERMEDIATE CASE
