Installation

AT Shift Lock Solenoid and "P" Range Switch

INSTALLATION

Install in the reverse order of removal.

NOTE:

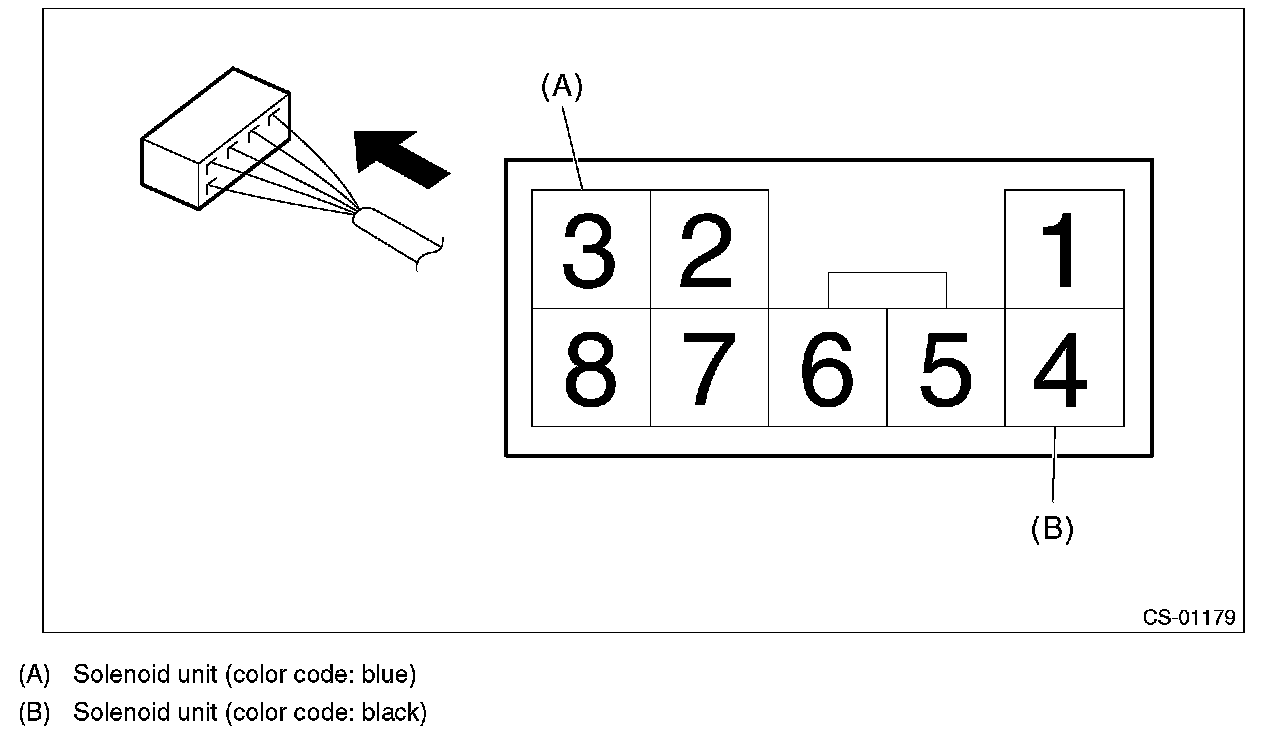

Insert the solenoid unit terminals to the harness connector.
