Steering Mounted Controls Assembly: Testing and Inspection
Steering Satellite SwitchINSPECTION

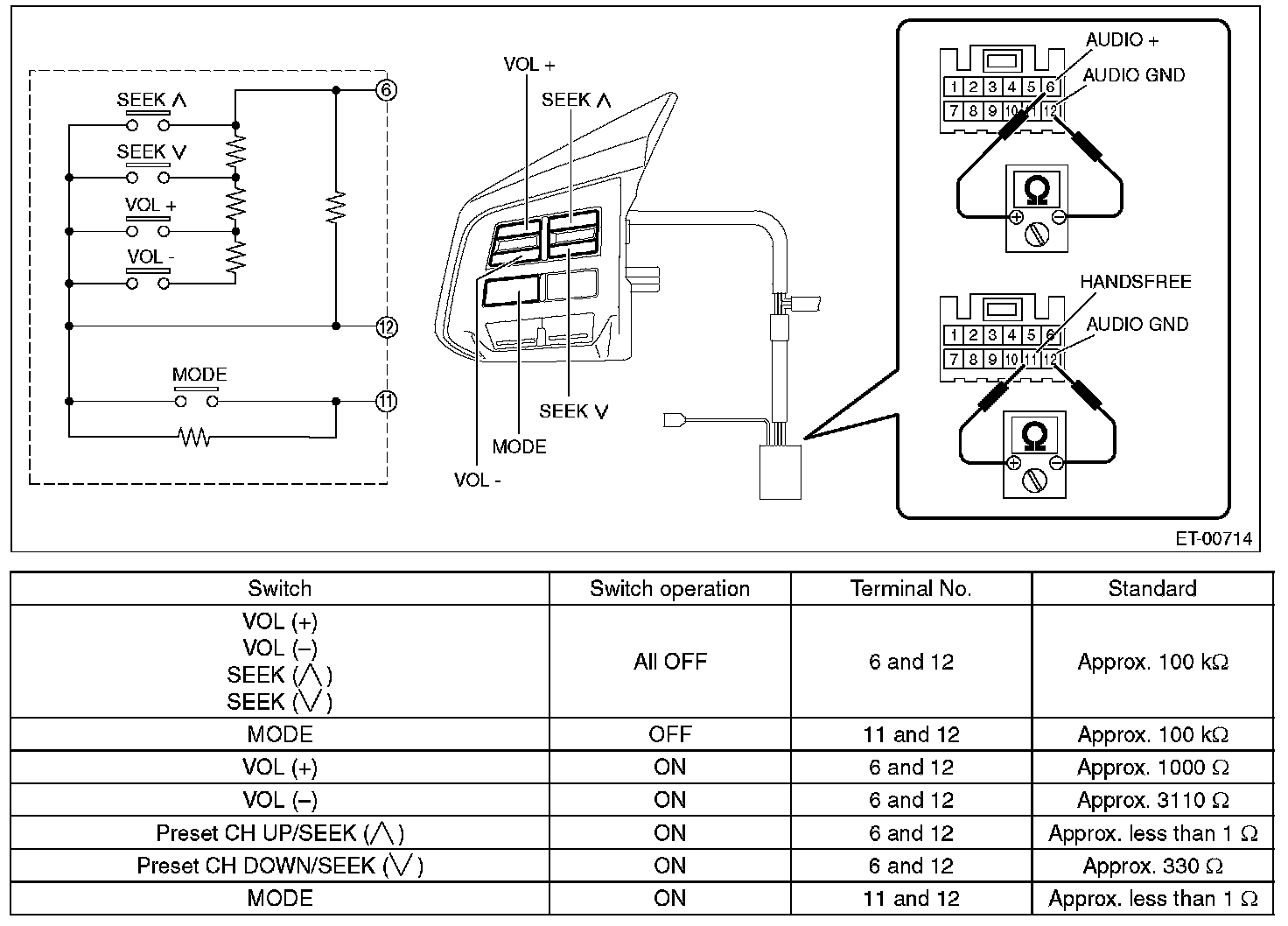

1. Measure the resistance between satellite switch connector terminals.
- Audio operation

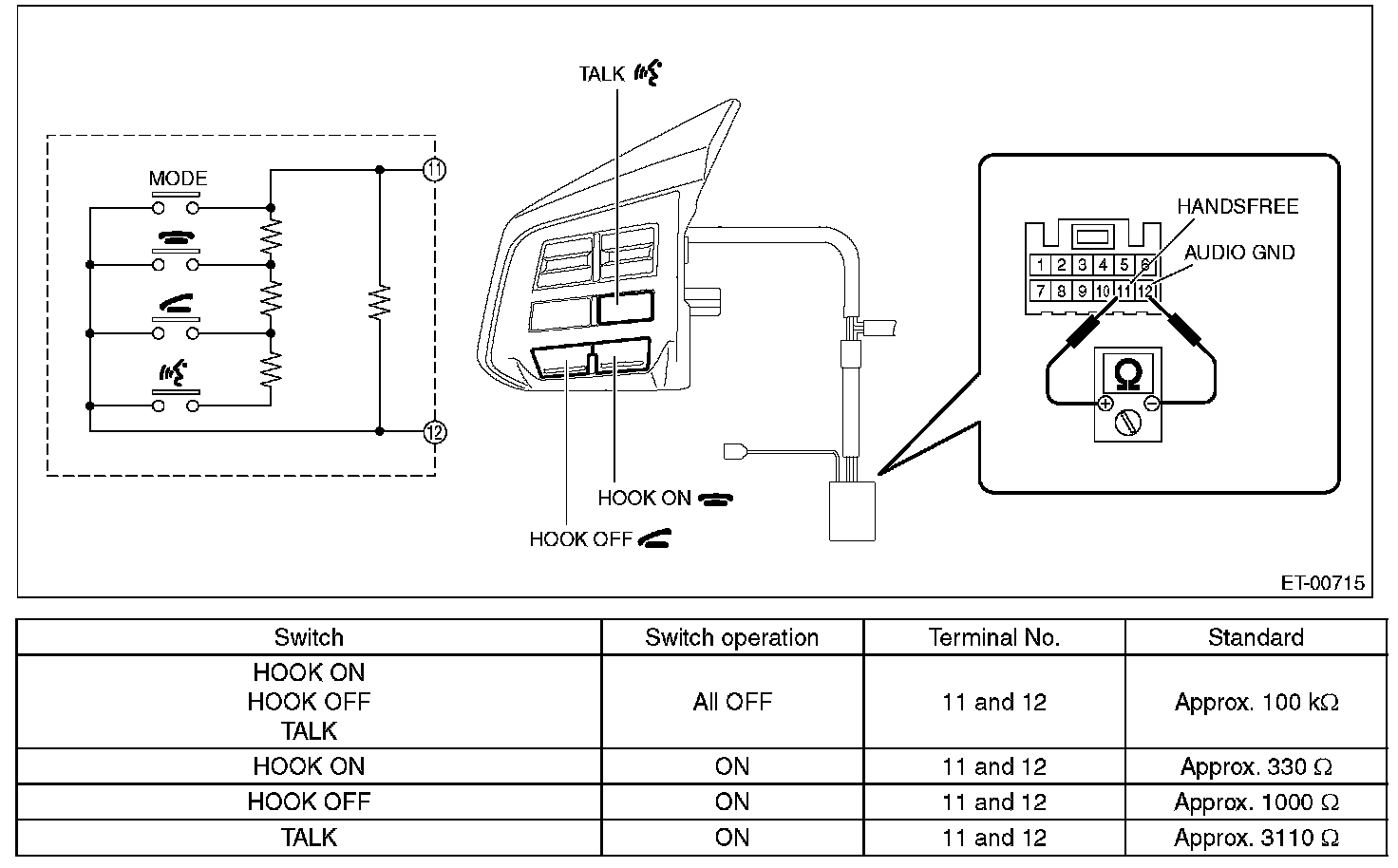

- Handsfree operation
2. If the result of the measurement is not at the standard value, replace the satellite switch.
