AT Shift Lock Control System

AT Shift Lock Control System

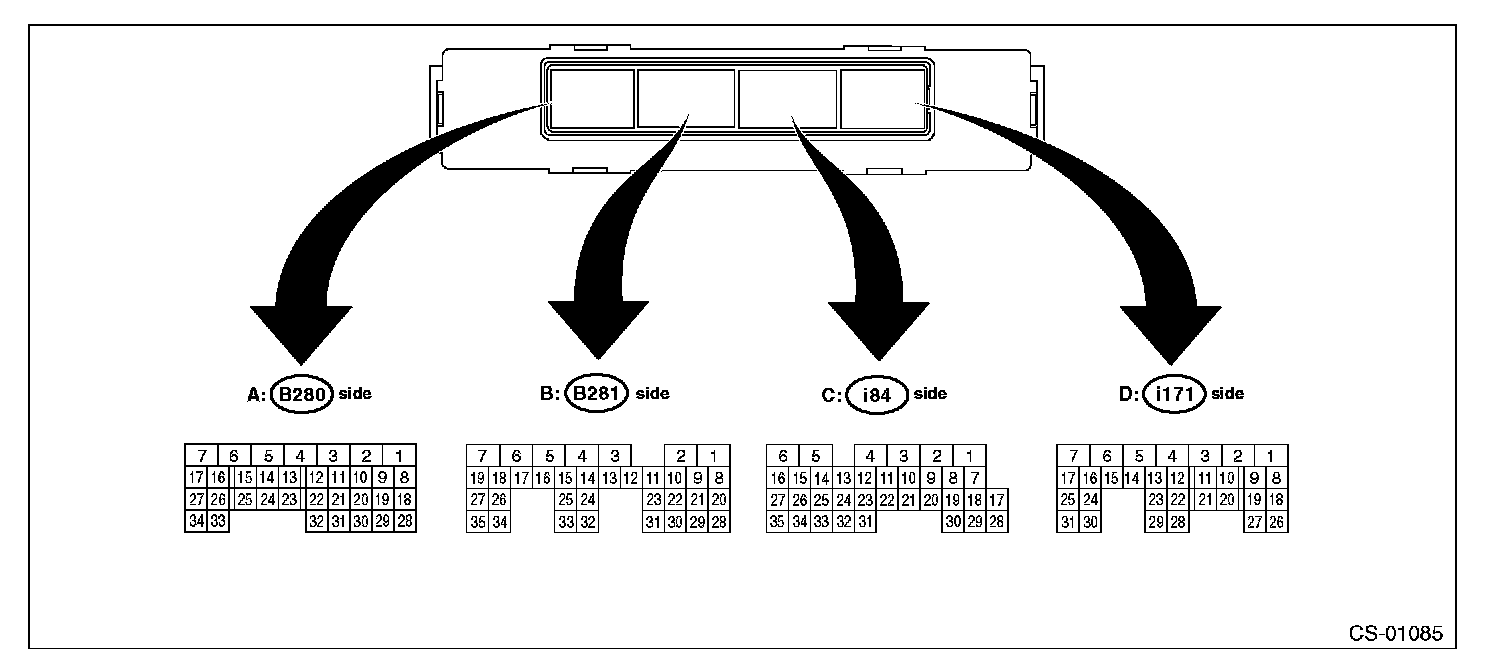

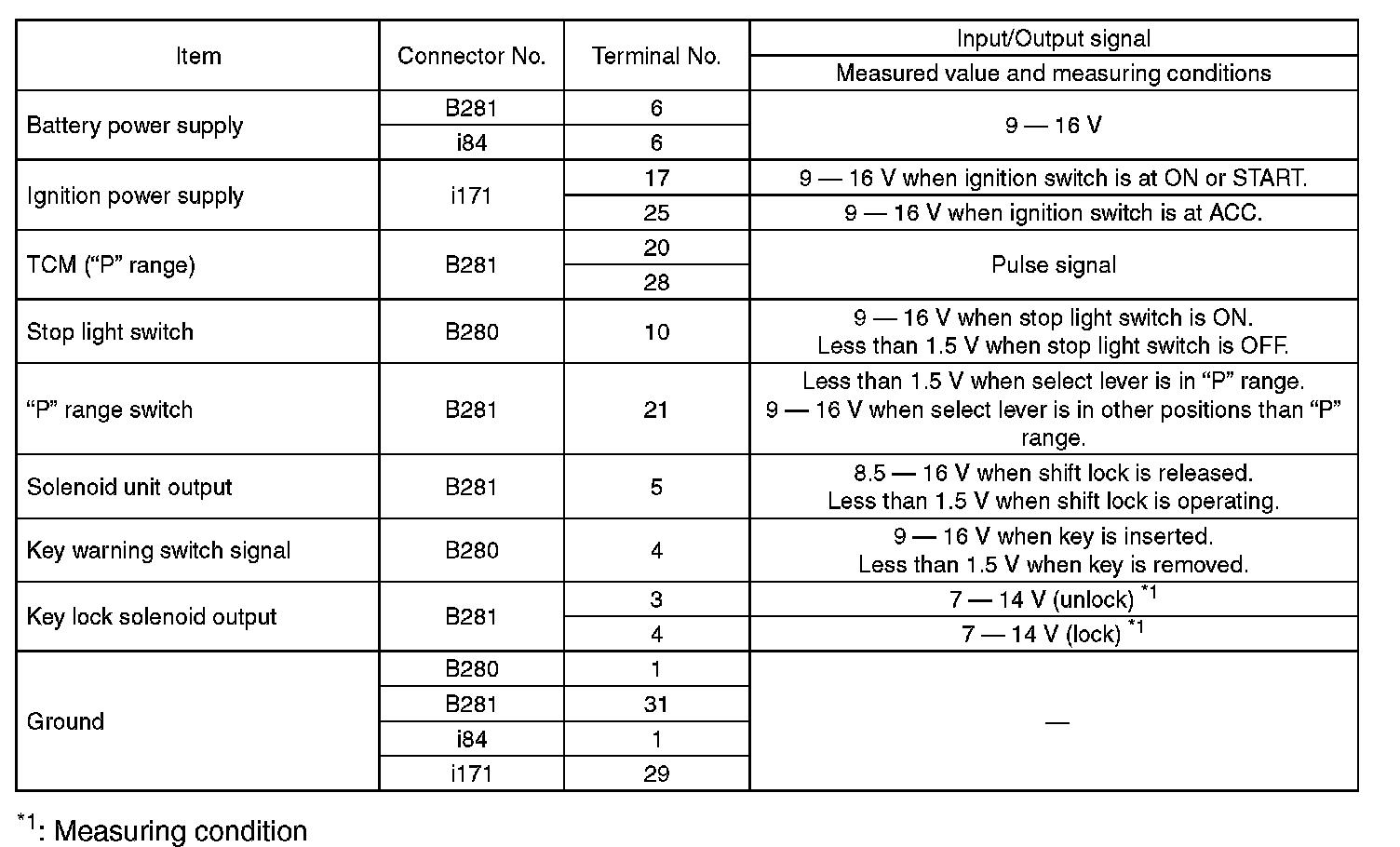

ELECTRICAL SPECIFICATION

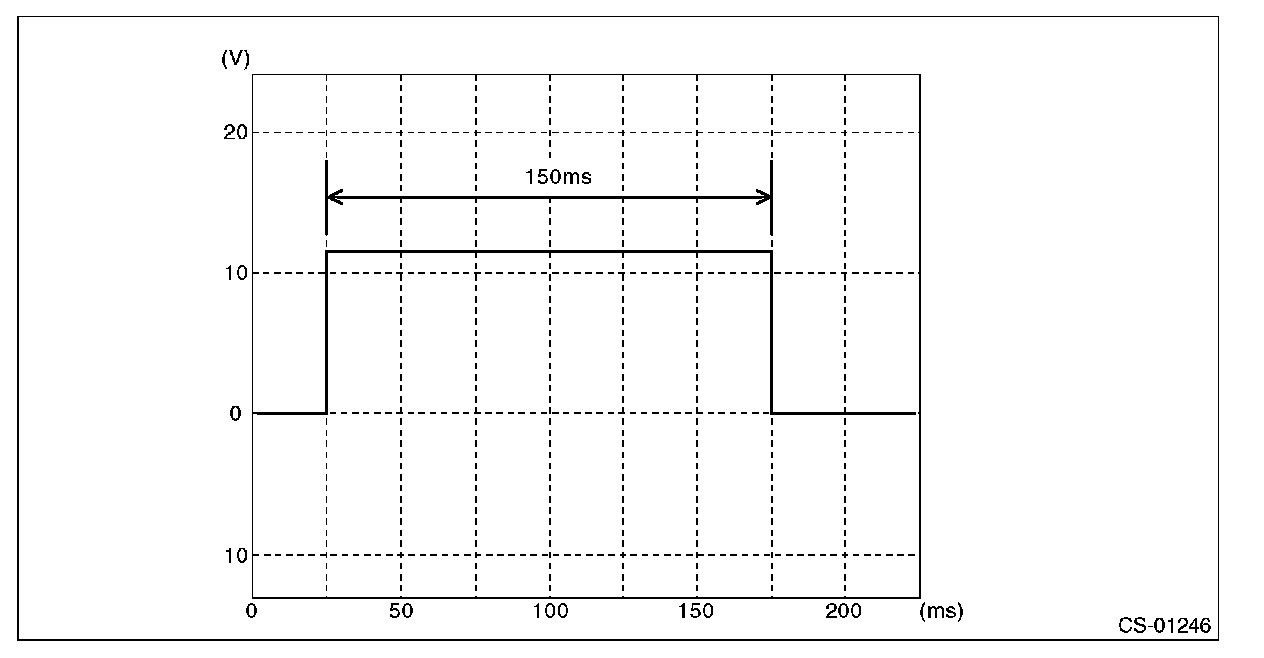

Output signal for key lock solenoid (unlock)

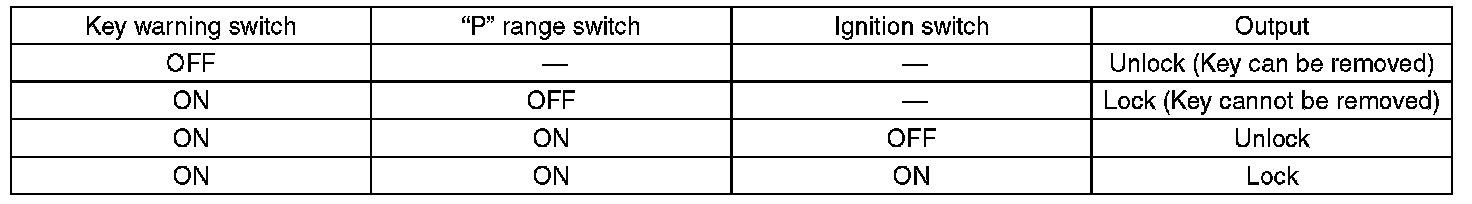

Output signal for key lock solenoid (lock)
