Intake Air Duct: Service and Repair

Air Intake Duct

REMOVAL

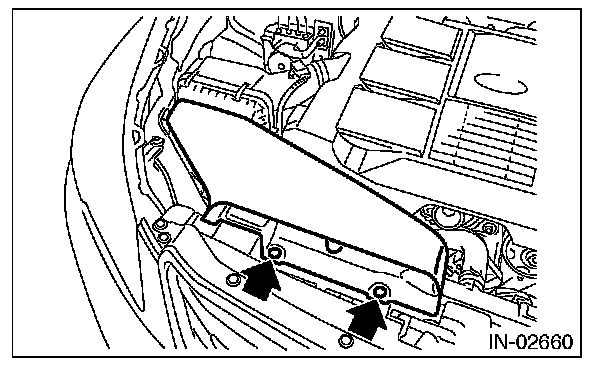

1. Remove the clip securing the air intake duct.
2. Remove the air intake duct.






INSTALLATION

Install in the reverse order of removal.
