Malfunction Indicator Light Remains Blinking

MALFUNCTION INDICATOR LIGHT REMAINS BLINKING

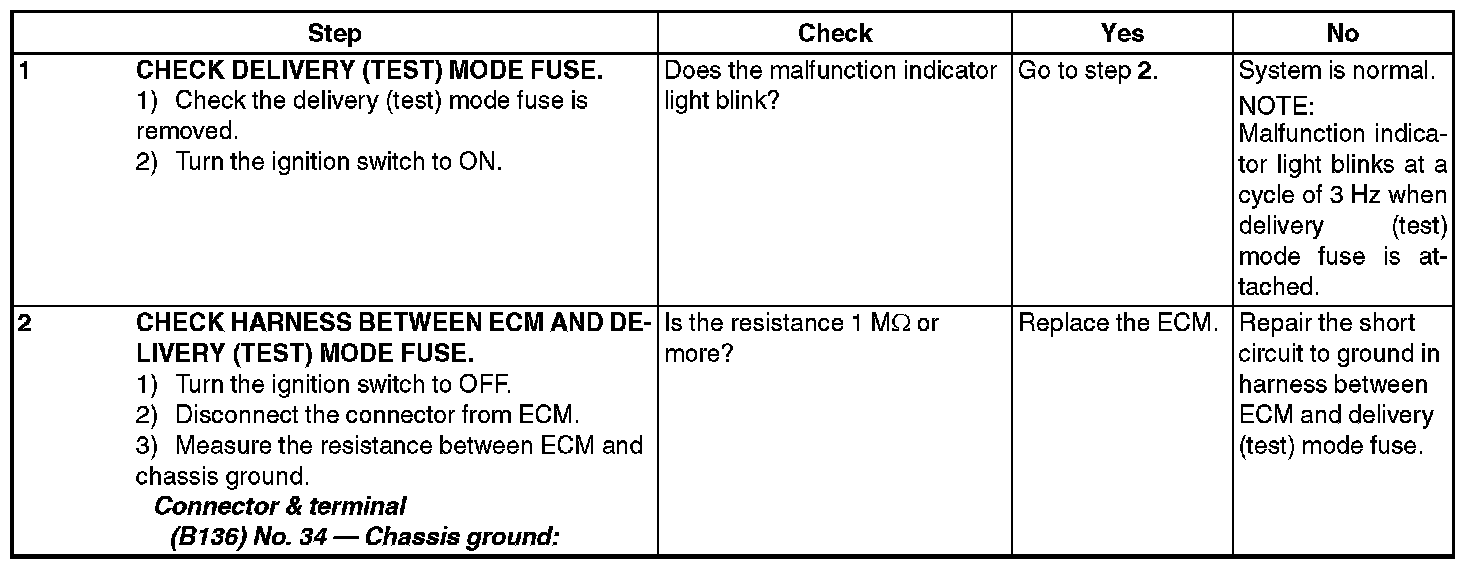

DIAGNOSIS:
The delivery (test) mode fuse circuit is short-circuited to ground.

TROUBLE SYMPTOM:
Malfunction indicator light blinks when delivery (test) mode fuse is not connected.

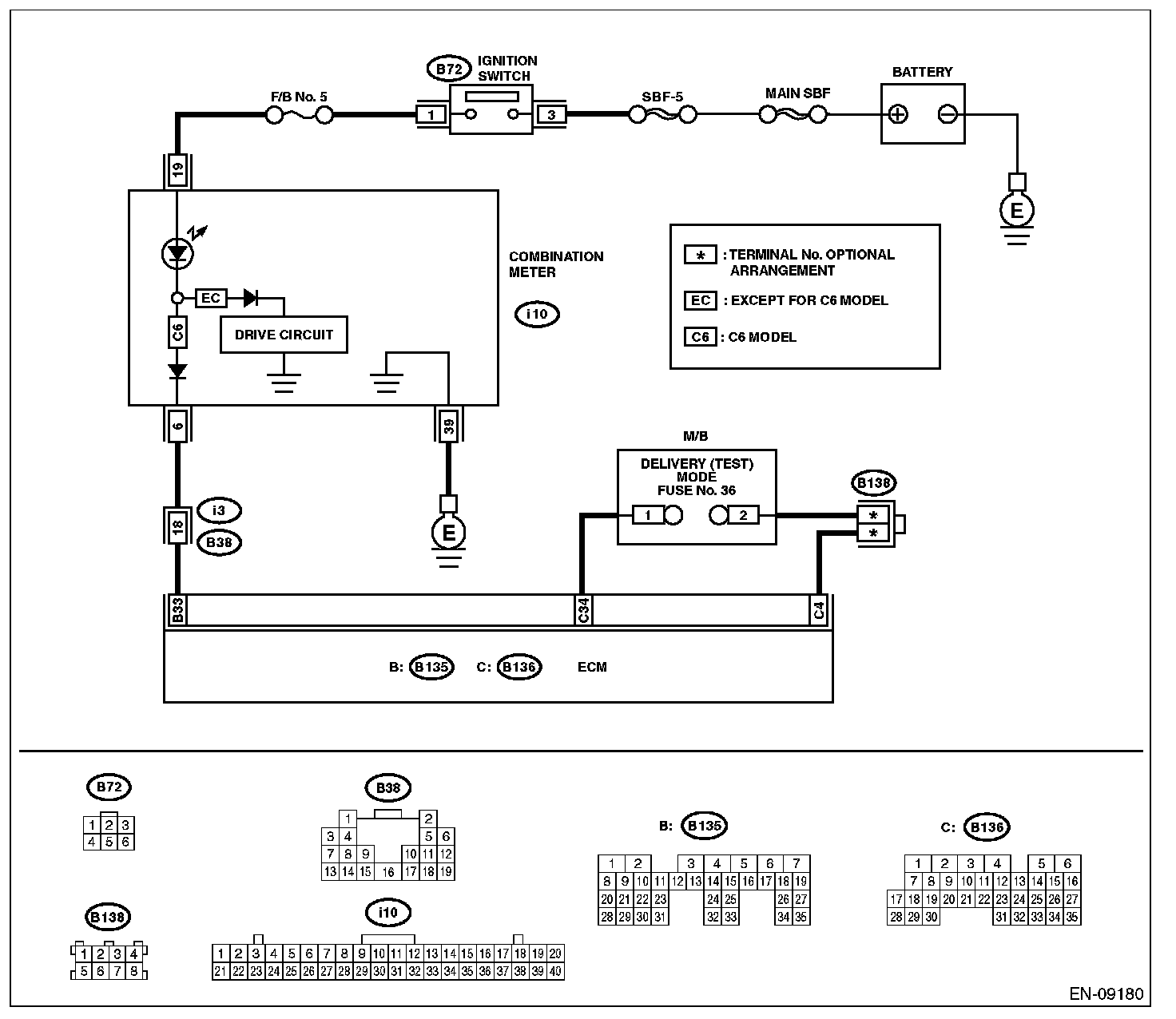

WIRING DIAGRAM:
