Malfunction Indicator Light Does Not Come ON

MALFUNCTION INDICATOR LIGHT DOES NOT COME ON

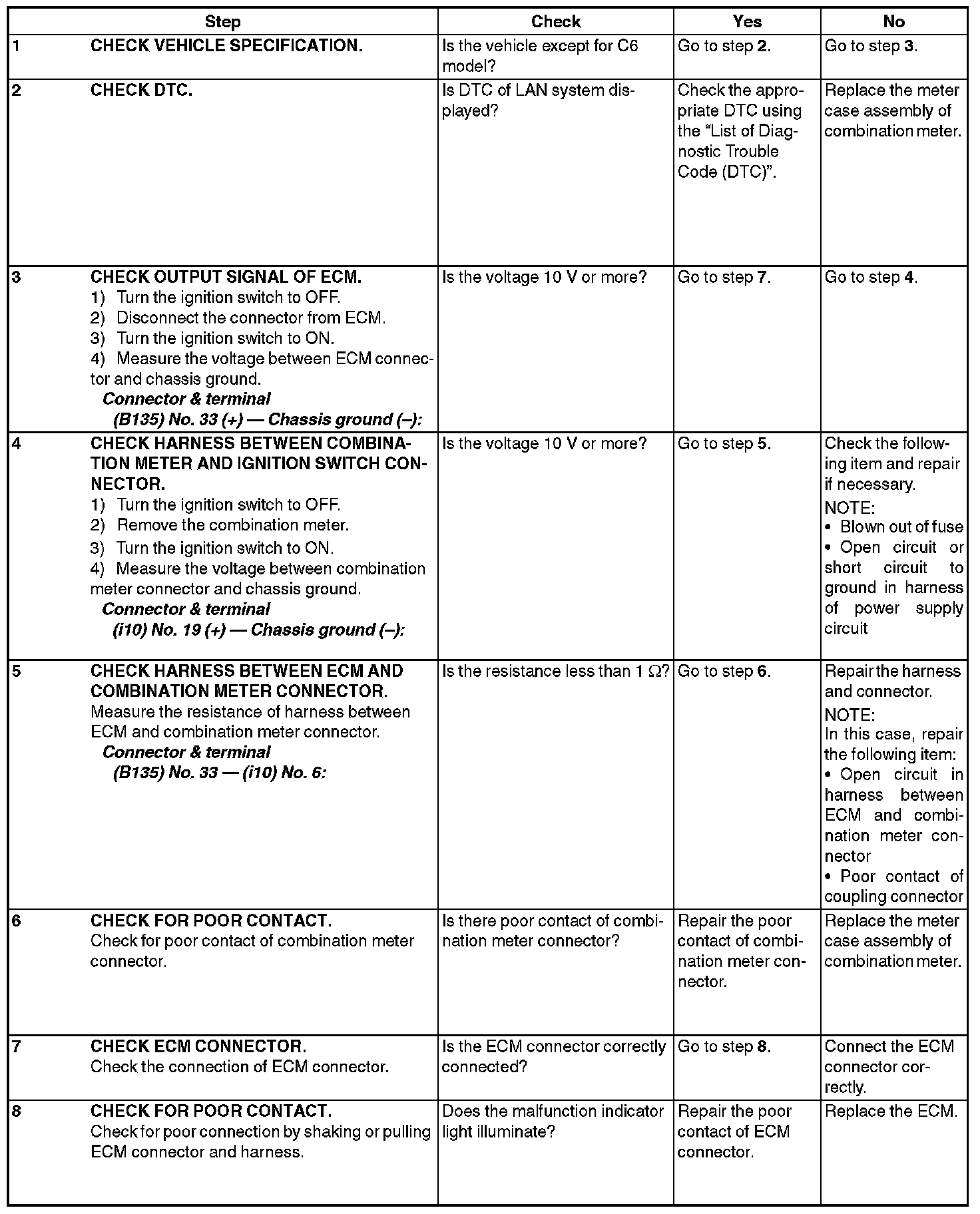

TROUBLE SYMPTOM:
When the ignition switch is turned to ON (engine OFF), malfunction indicator light does not illuminate.

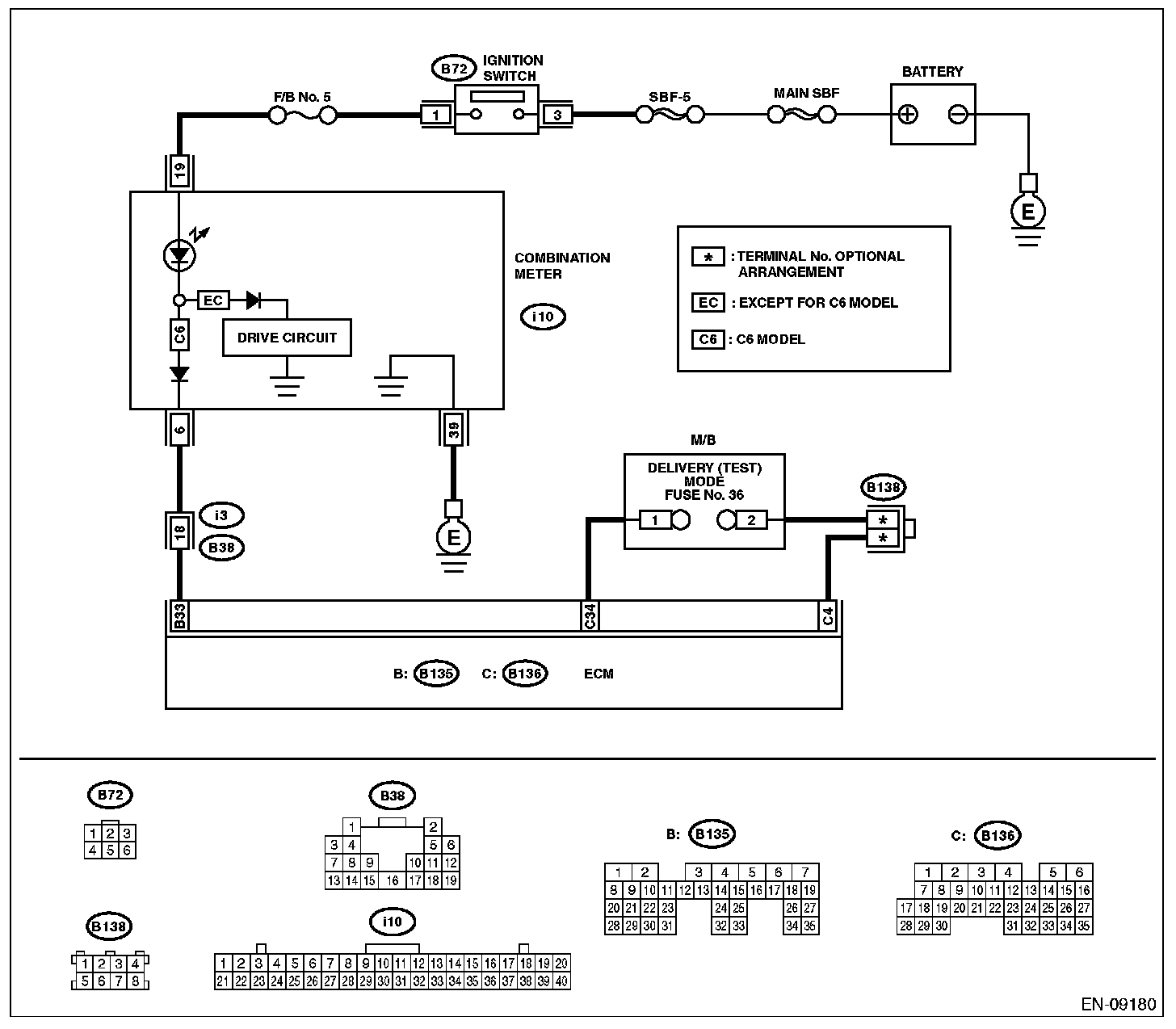

WIRING DIAGRAM:
