Engine (Diagnostics)

Electrical Component Location

LOCATION

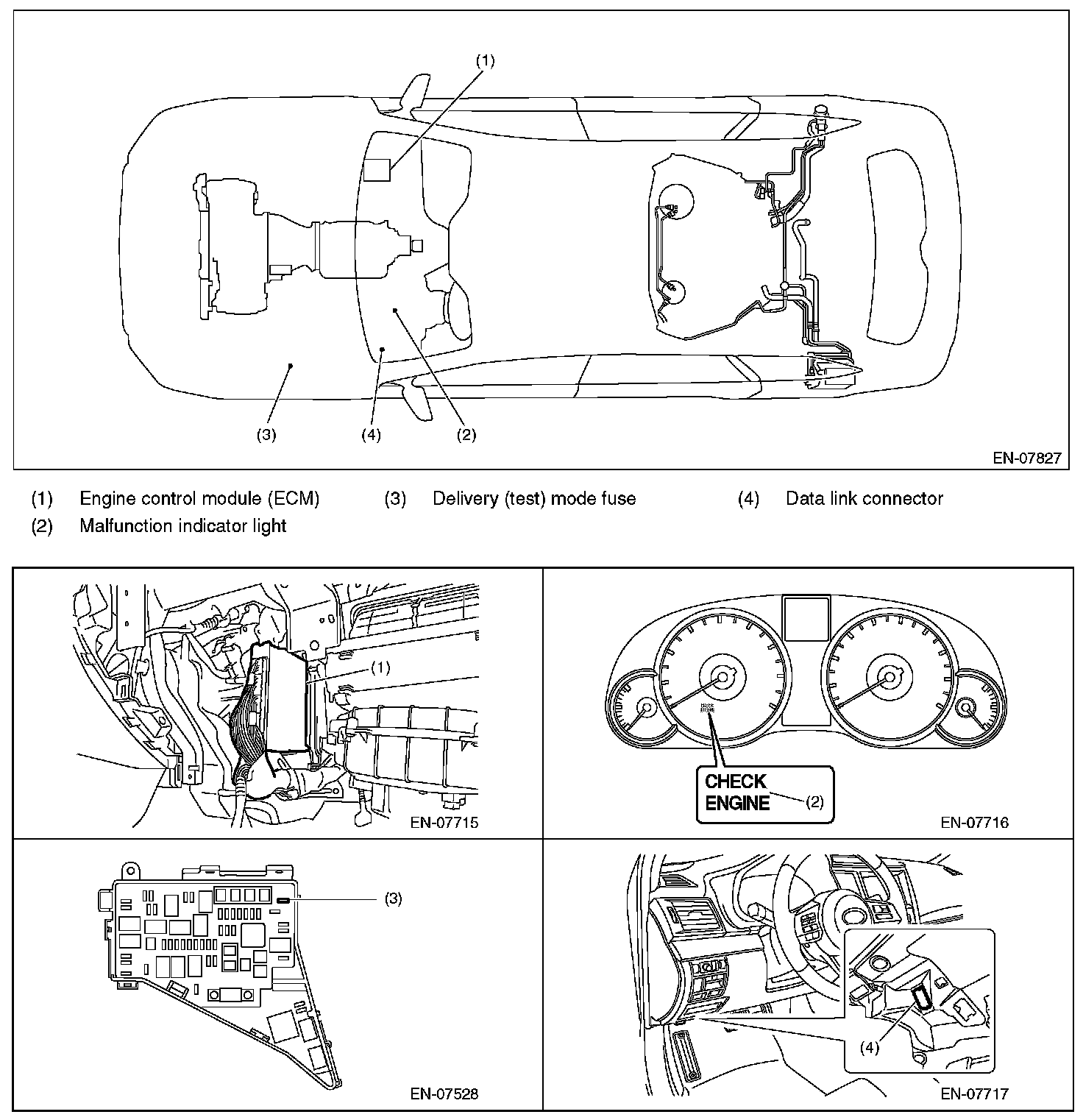

CONTROL MODULE

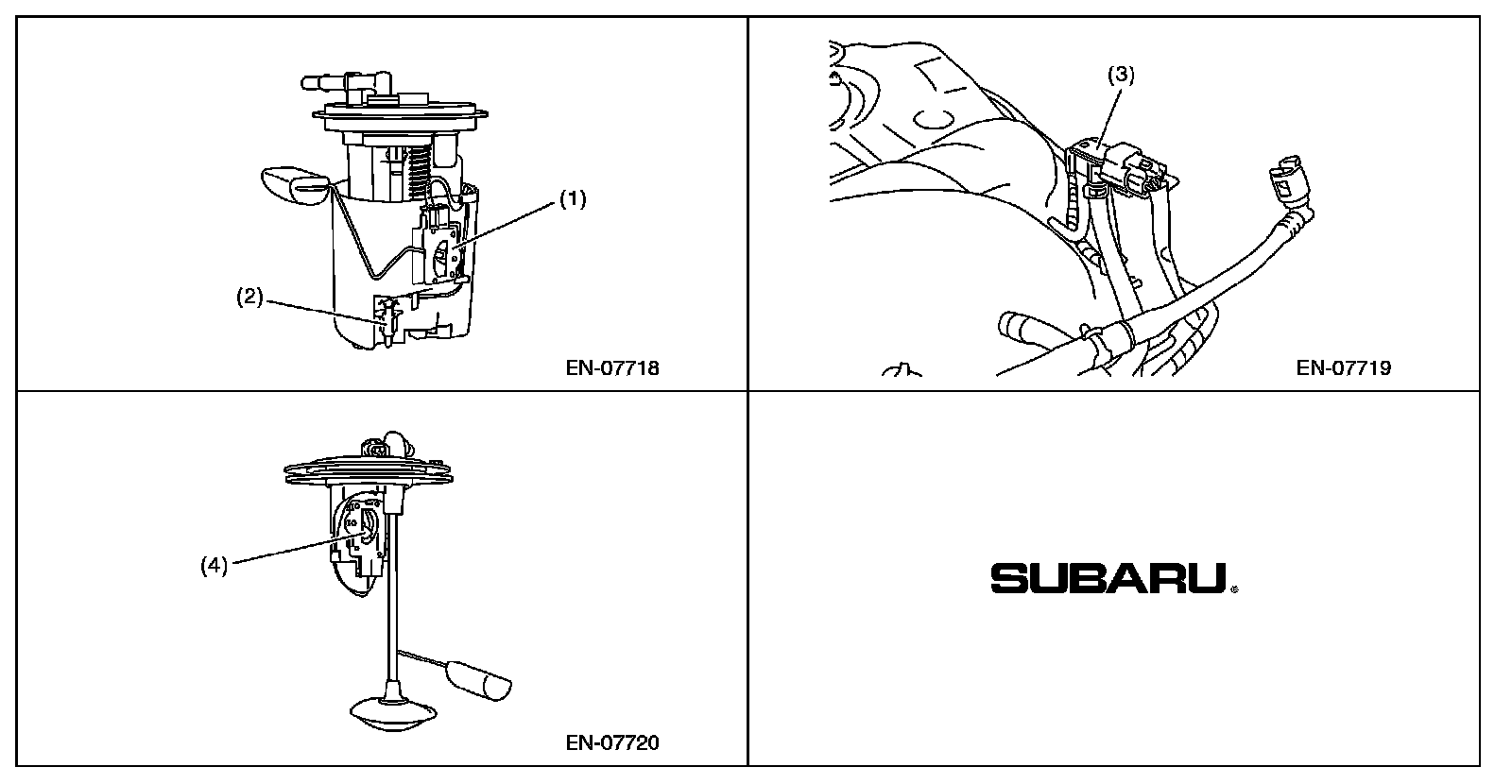

SENSOR

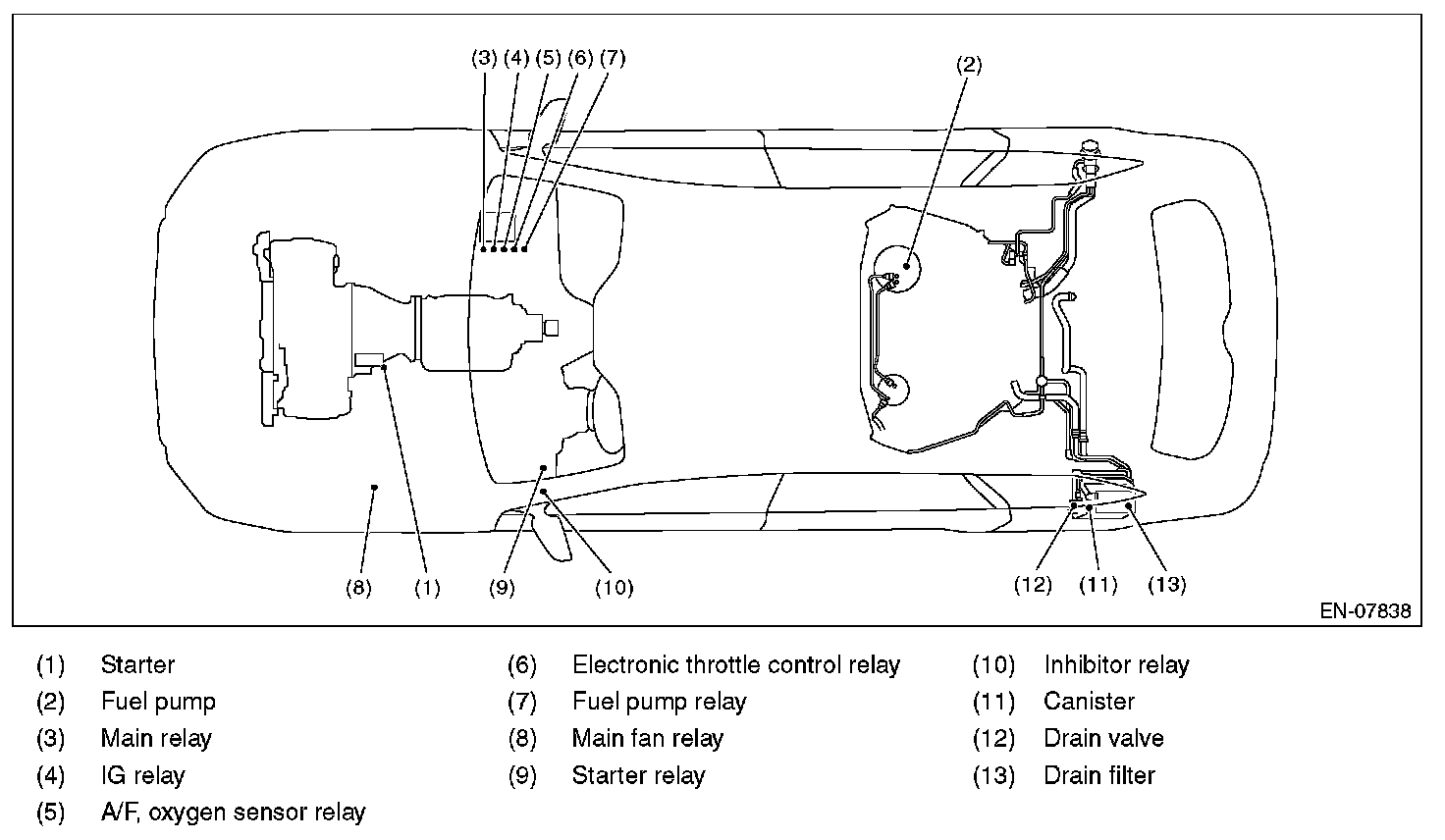

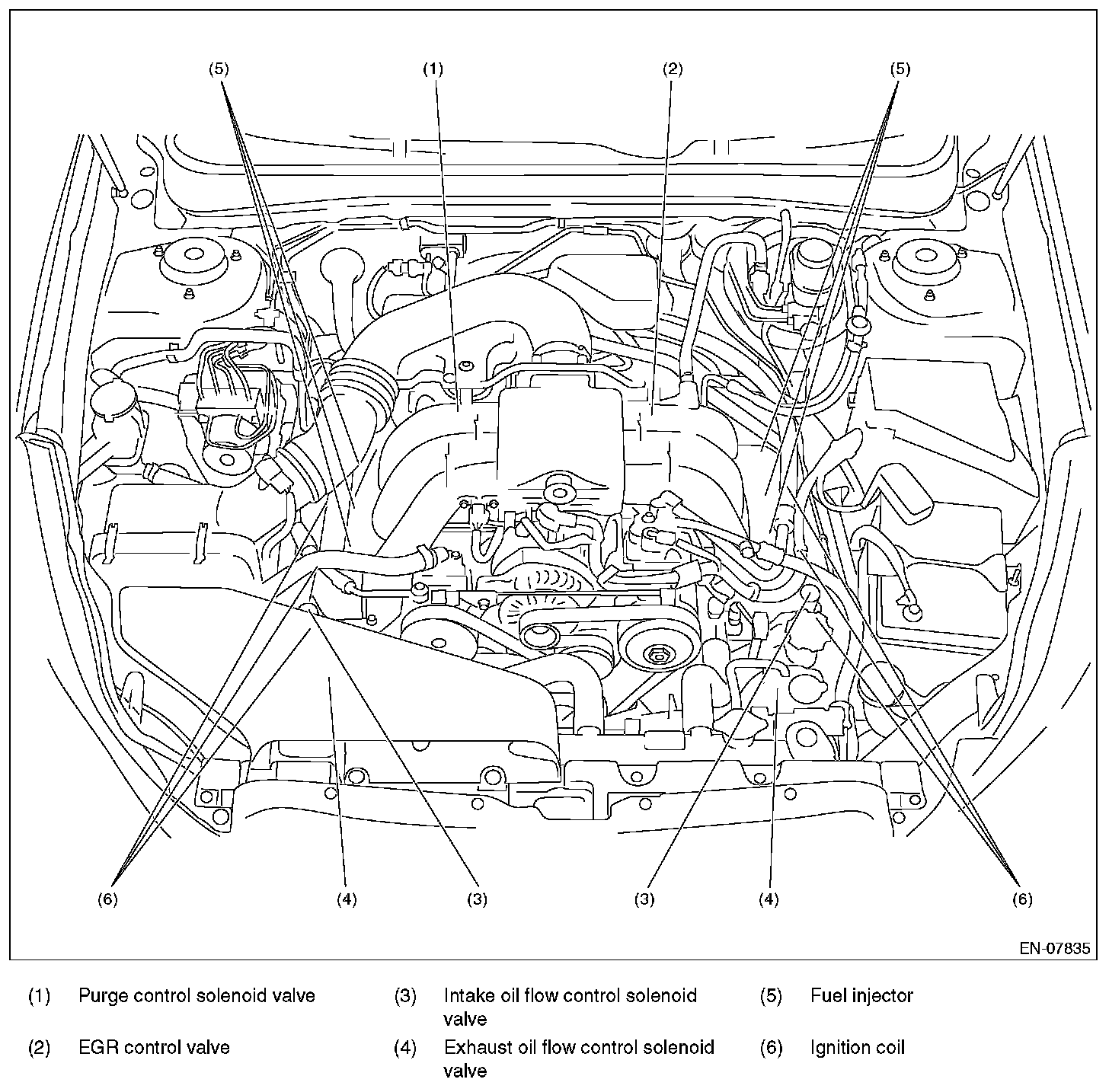

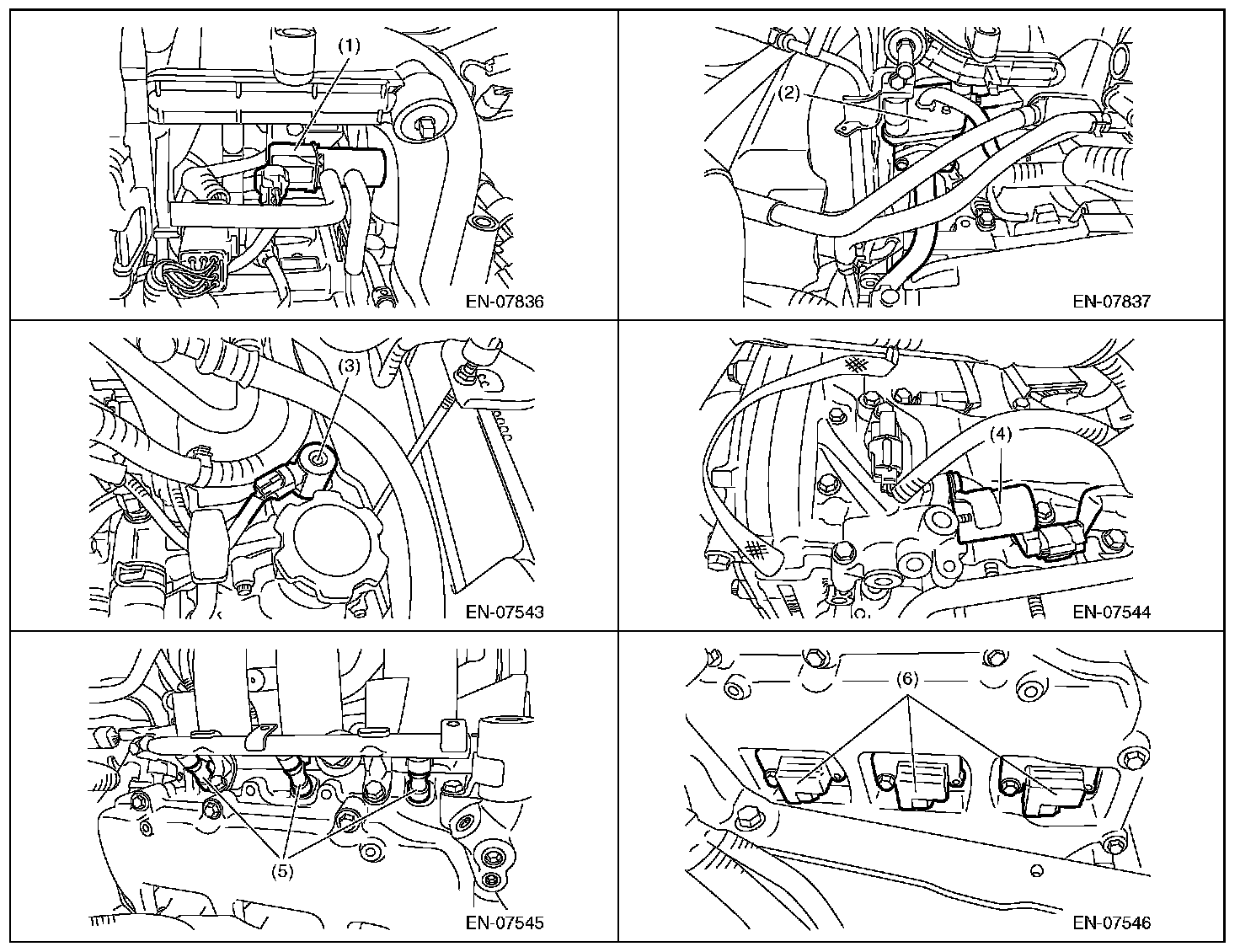

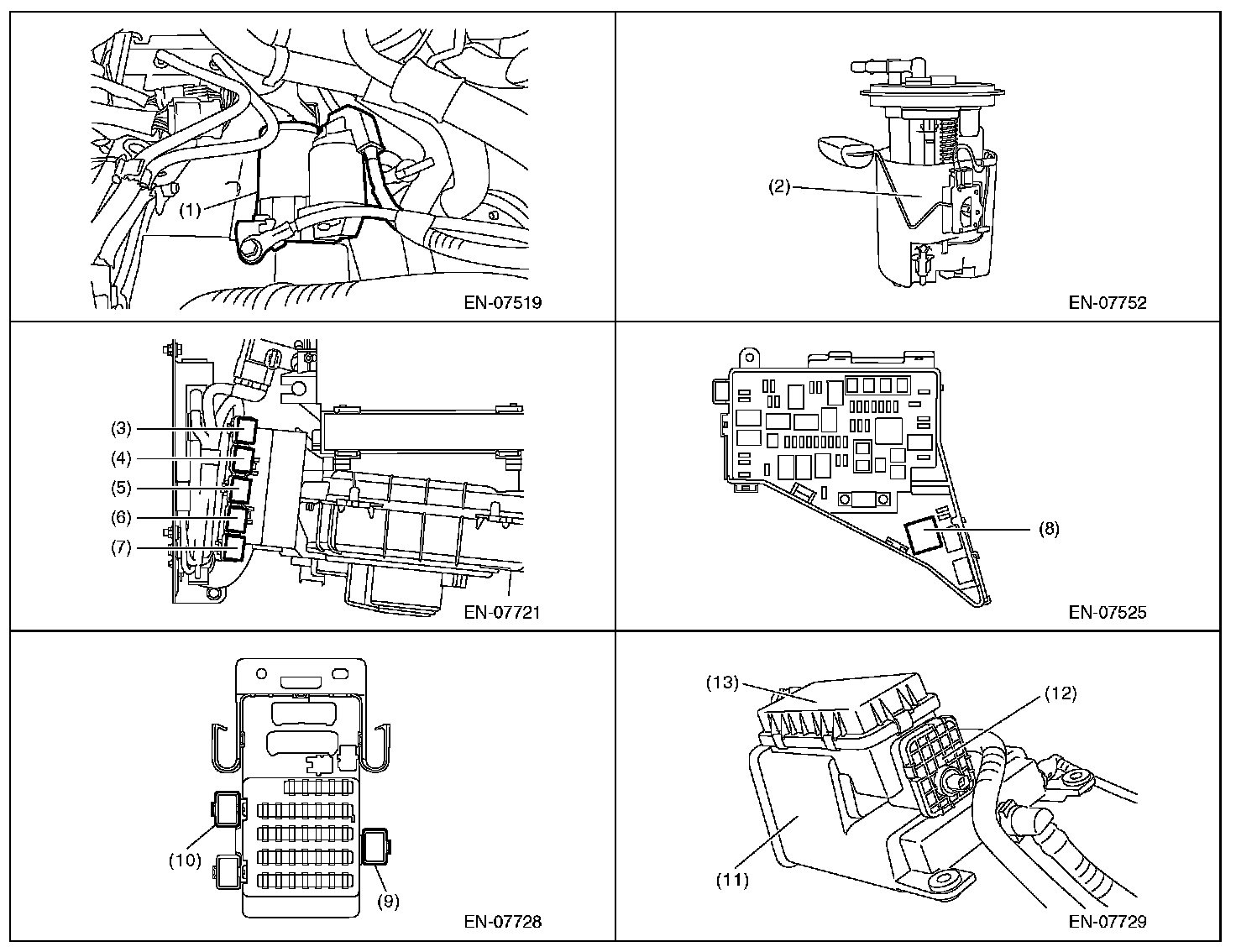

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
