Rear Turn Signal Light Bulb

REAR TURN SIGNAL LIGHT BULB

REMOVAL

1. SEDAN MODEL
1. Disconnect the ground cable from battery.

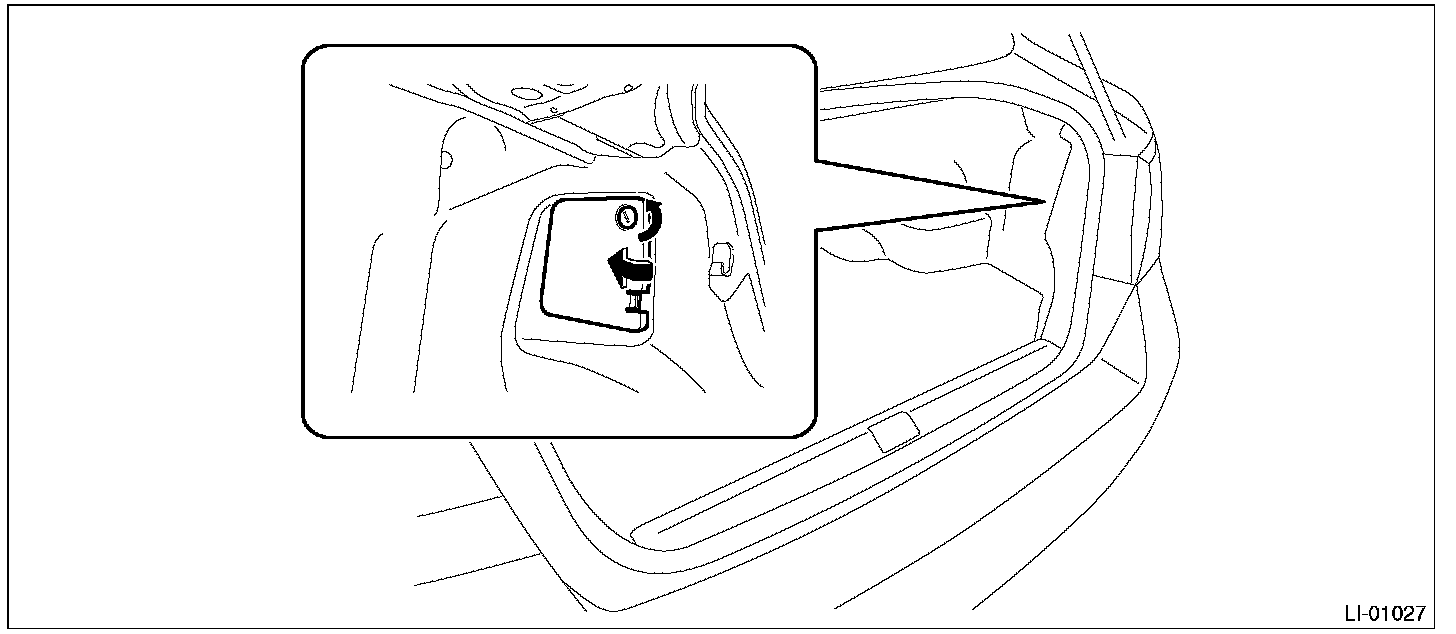

2. Release the lock and remove the bulb inspection cover of trunk room trim.

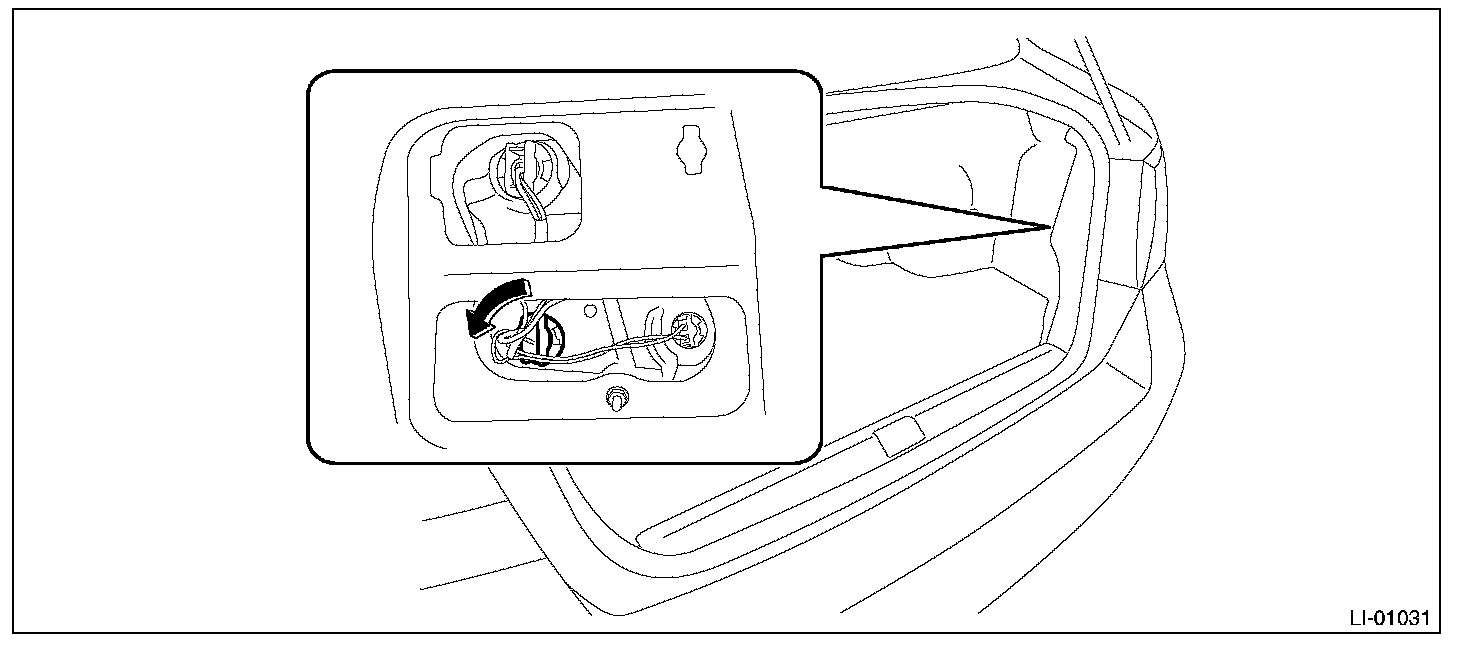

3. Remove the bulb socket and rear turn signal light bulb.






2. OUTBACK MODEL
1. Disconnect the ground cable from battery.

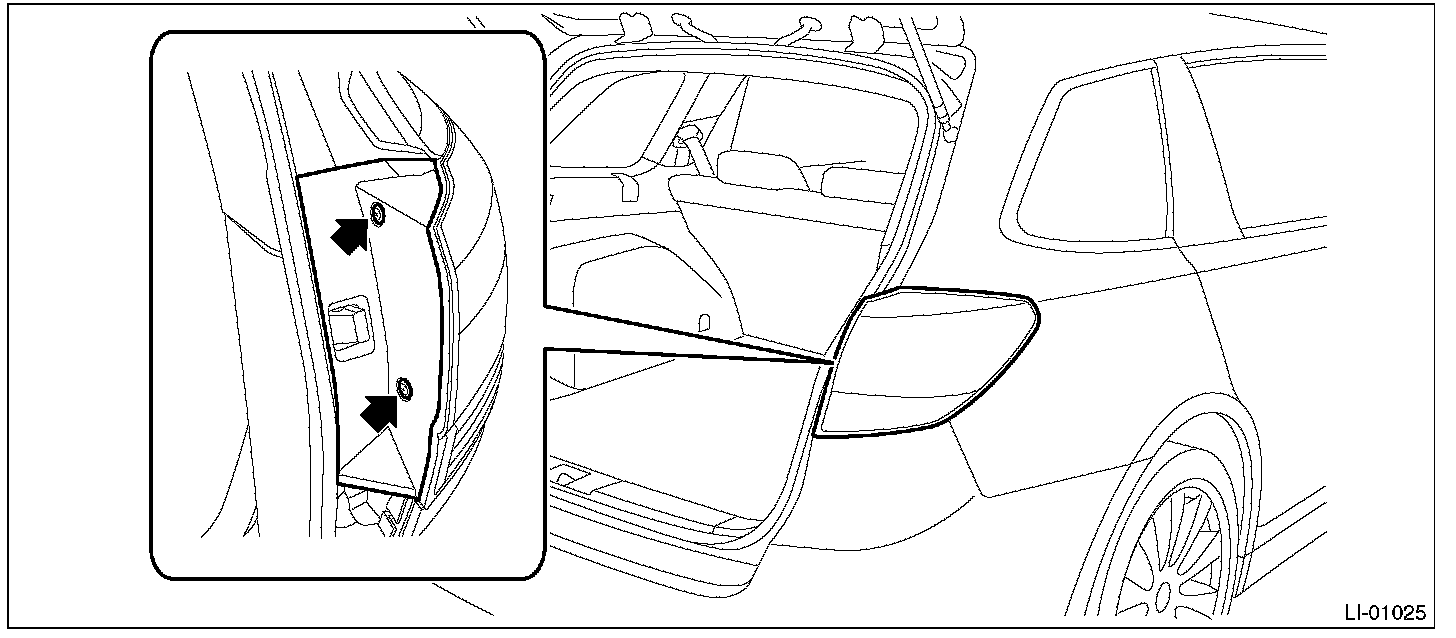

2. Remove the clips and detach the rear combination light covers.






3. Remove the rear combination light assembly.

CAUTION: Be careful not to damage the clips.

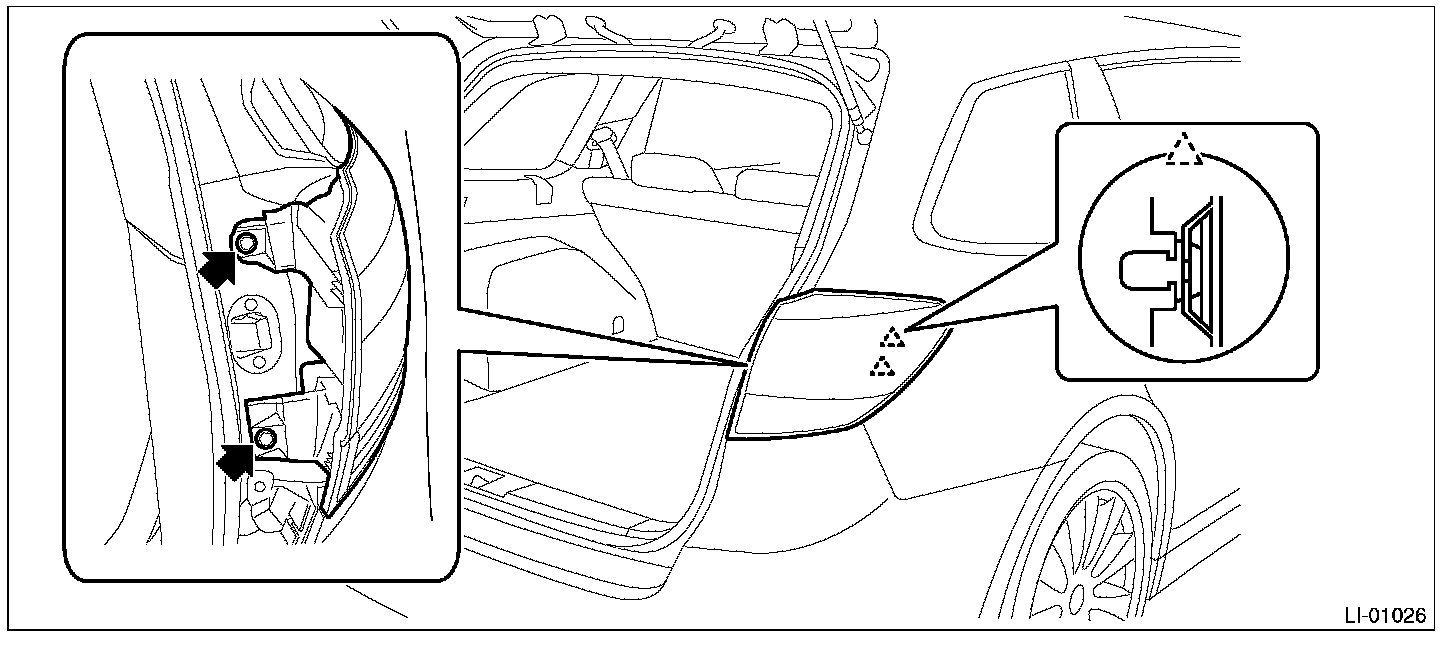

1. Release the bolts and clips, then pull out the rear combination light assembly to the vehicle rear.
2. Disconnect the connector and remove the rear combination light assembly.

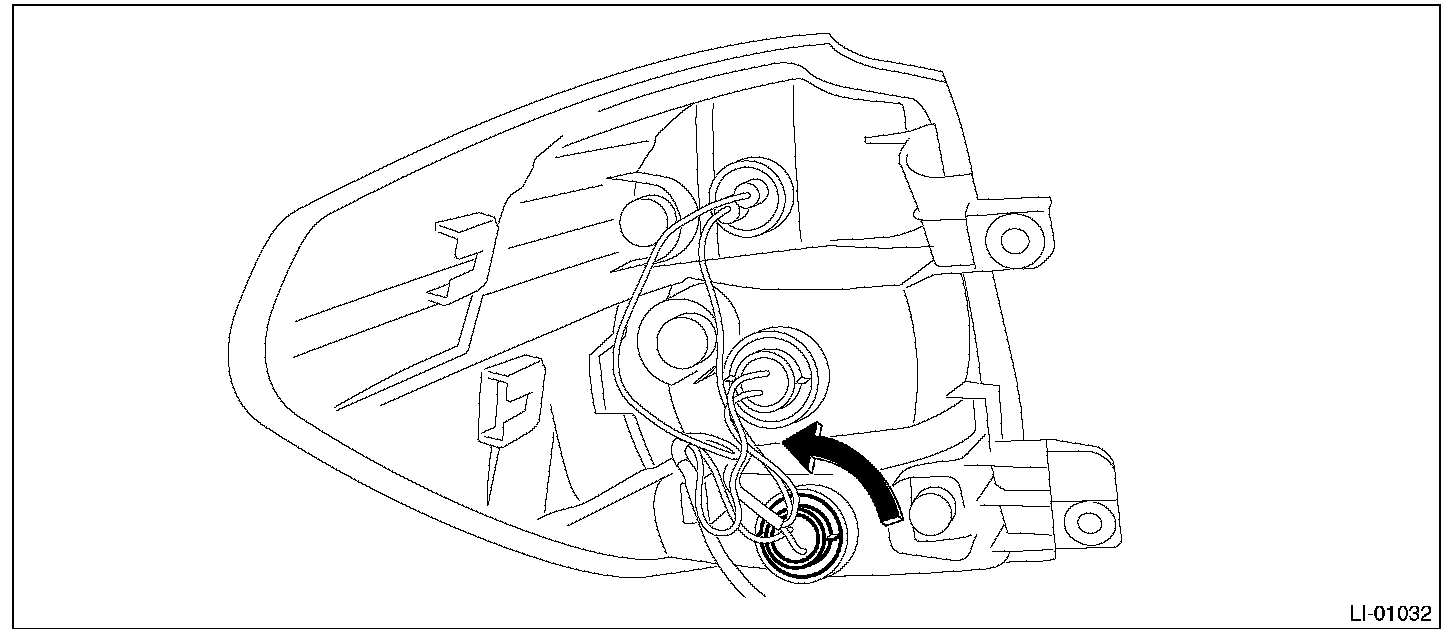

4. Remove the bulb socket and rear turn signal light bulb.






INSTALLATION
Install each part in the reverse order of removal.

Tightening torque:
Rear combination light ASSY: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
