Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Check Fuel Level Sensor
Check Fuel Level Sensor
Combination Meter System

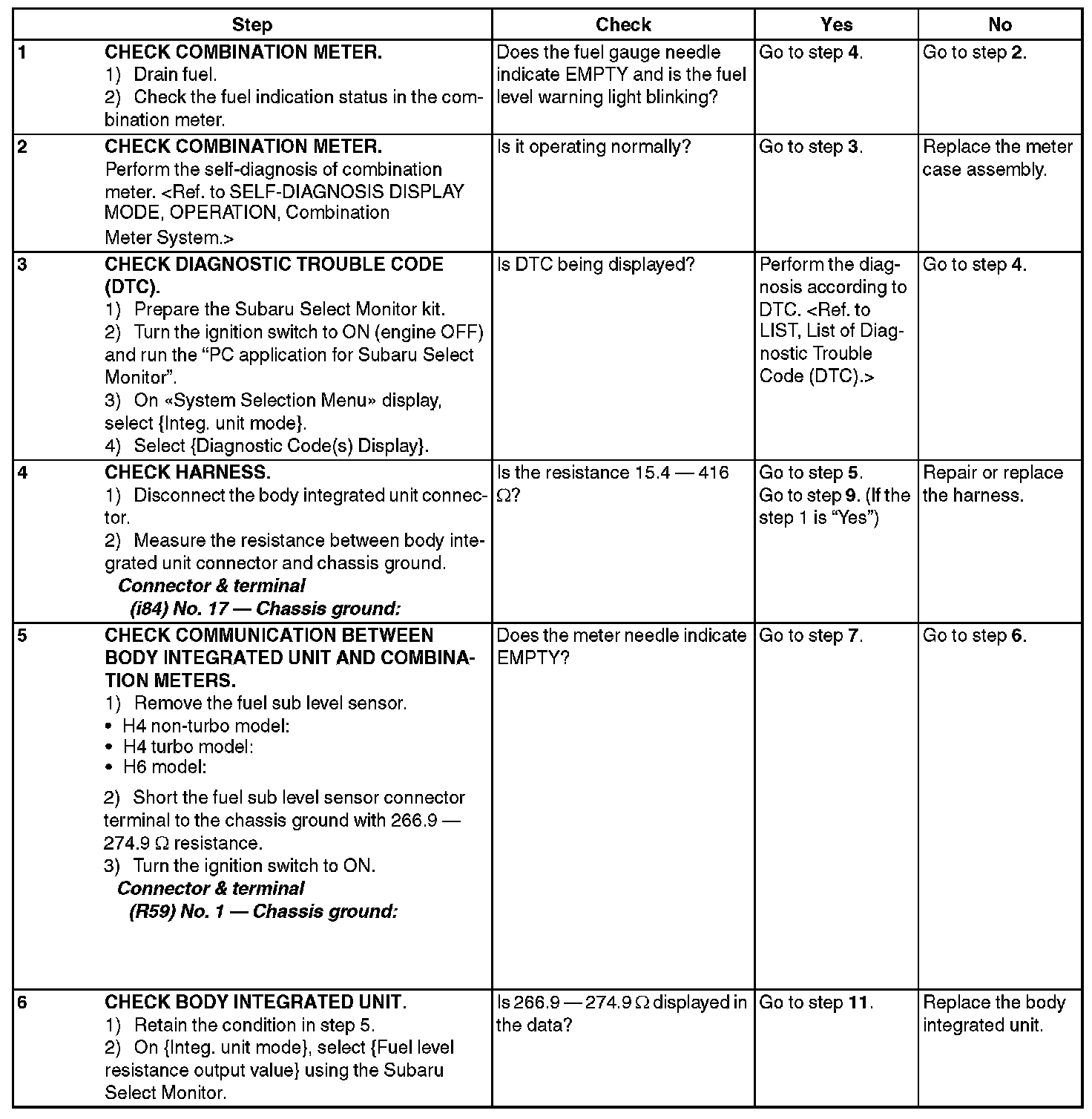

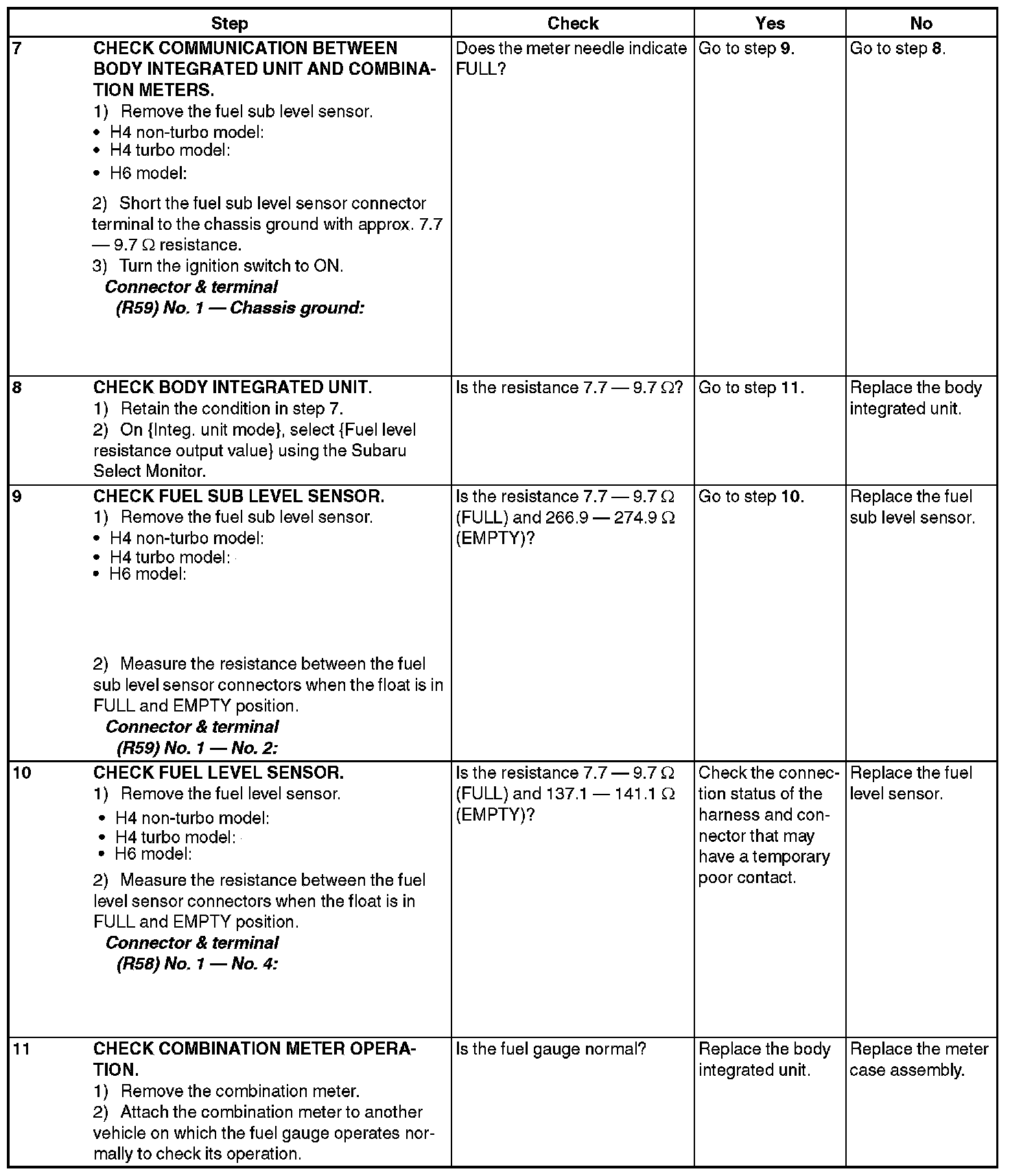

CHECK FUEL LEVEL SENSOR
