Rear
Rear Brake PadREMOVAL
1) Lift up the vehicle, and then remove the rear wheels.
2) Remove the rear brake pad.

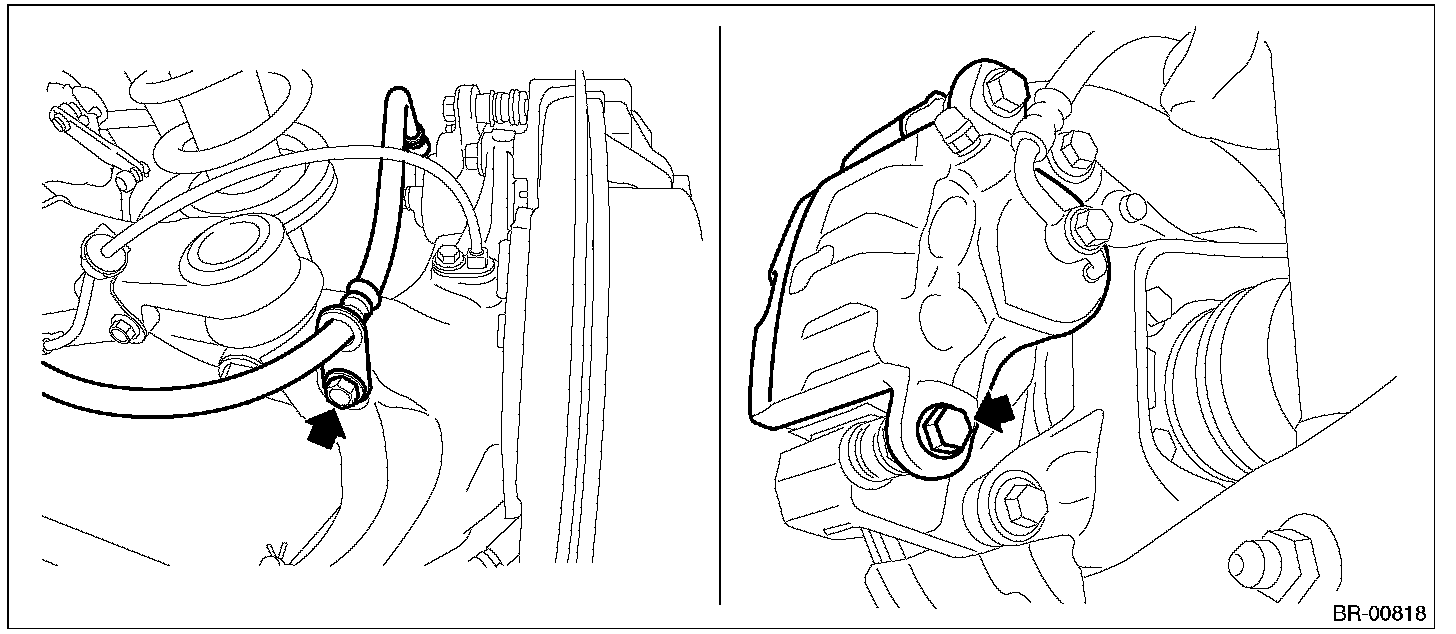

(1) Remove the bolts and remove the brake hose bracket.
(2) Remove the caliper bolt, and raise and hold the caliper body.
NOTE:
Do not disconnect the brake hose from the caliper body.
(3) Remove the brake pad from support.
INSTALLATION
NOTE:
Before installation, remove mud and foreign matter from the caliper body and support.
1) Before installation, check the brake pad.
2) Apply a thin coat of Molykote M7439 (Part No. 003602001) or grease contained in the pad kit to the pad clip.
3) Apply a thin coat of Molykote AS880N (Part No. K0777YA010) or grease contained in the pad kit between the outer pad and shim.
4) Apply a thin coat of Molykote AS880N (Part No. K0777YA010) or grease contained in the pad kit to both surfaces of the inner pad inner shim.
5) Install the brake pad to the support.
6) Install the caliper body to the support.
Tightening torque:
Caliper bolt: 27 Nm (2.75 kgf-m, 19.9 ft-lb)
7) Install the brake hose bracket.
Tightening torque:
Brake hose bracket: 33 Nm (3.36 kgf-m, 24.3 ft-lb)
8) Install the rear wheels.
INSPECTION
1) Check the pad thickness (A).
NOTE:
^ Always replace the pads of both wheels and both sides as a set.
^ Replace pad clips if they are twisted or worn.
^ Replace the pad if there is oil or grease on it.
^ A wear indicator is installed on the inner disc brake pad. If the pad is worn to the limit, the end of wear indicator contacts disc rotor, and a squeaking sound is heard as the wheel rotates. If the sound is heard, replace the pad.
2) If the wear limit is exceeded in the inspection, replace the brake pad.
