P0976

DTC P0976 PRIMARY SOLENOID SYSTEM B CIRCUIT (LOW)

DTC DETECTING CONDITION:
Output signal circuit of primary DOWN solenoid is shorted.

TROUBLE SYMPTOM:
Gear is not changed. (No down-shift)

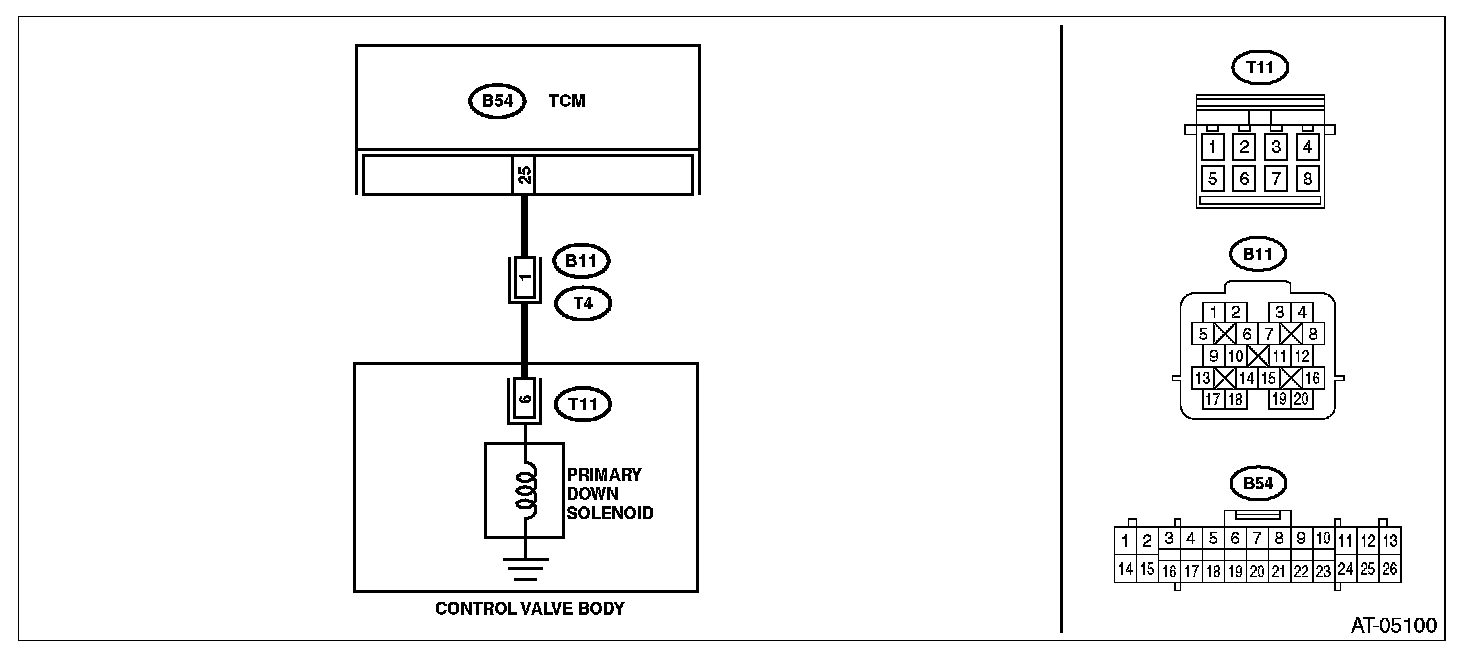

WIRING DIAGRAM:
