P0890

DTC P0890 AT SELF-SHUT RELAY DIAGNOSIS (LOW)

DTC DETECTING CONDITION:
^ Power supply circuit of TCM is open or shorted.
^ Self shut relay malfunction

TROUBLE SYMPTOM:
Gear is not changed.

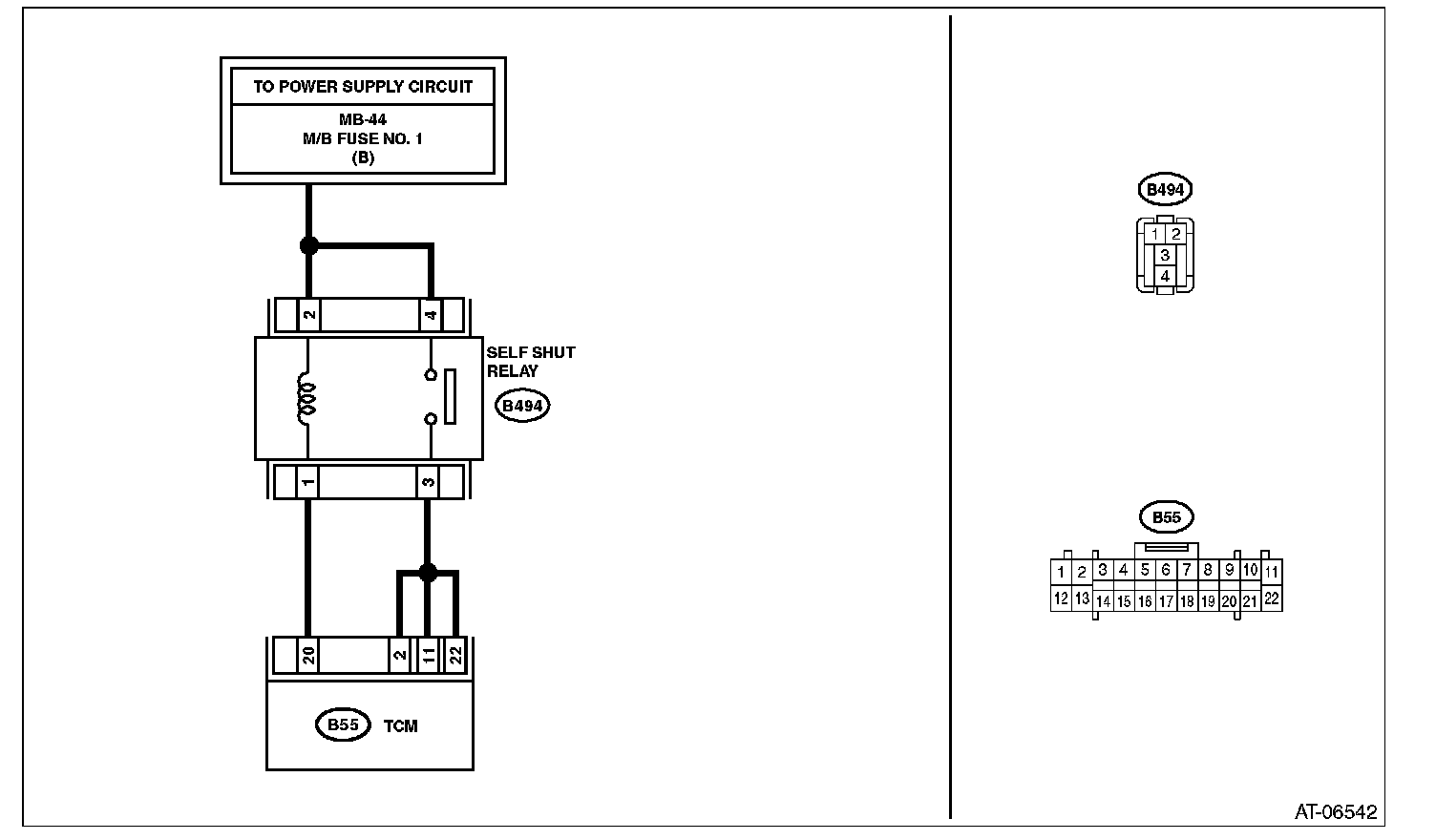

WIRING DIAGRAM:
