A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1405
B1405

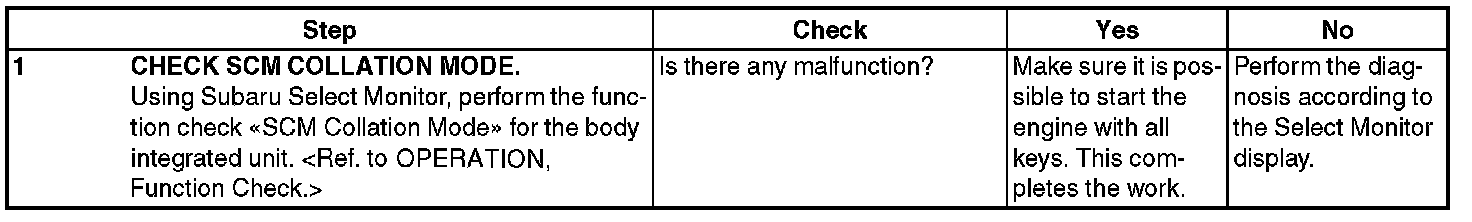

DTC B1405 SCU COLLATION NG
DTC DETECTING CONDITION:
Reference code incompatibility between security control module and body integrated unit
