Airbag System (Diagnostics)

AIRBAG CONTROL MODULE I/O SIGNAL

ELECTRICAL SPECIFICATION

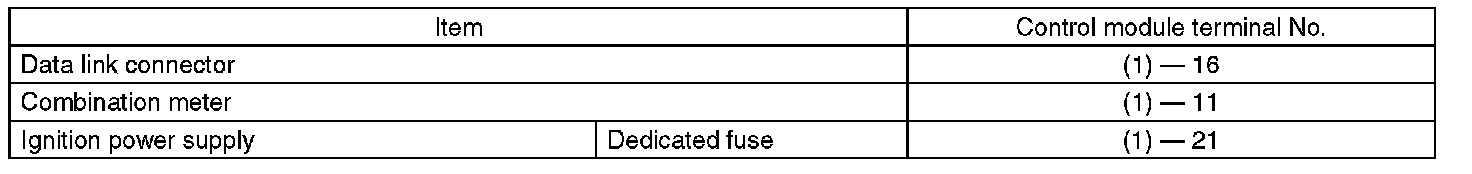

- Type A

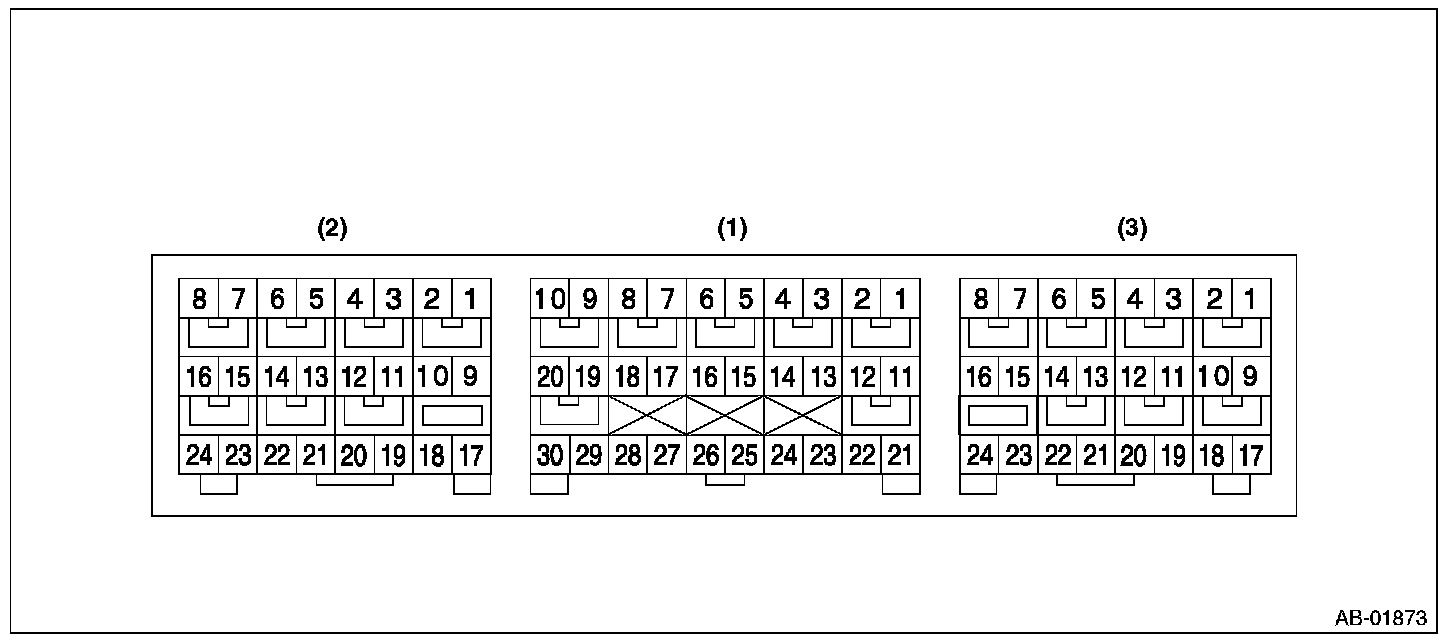

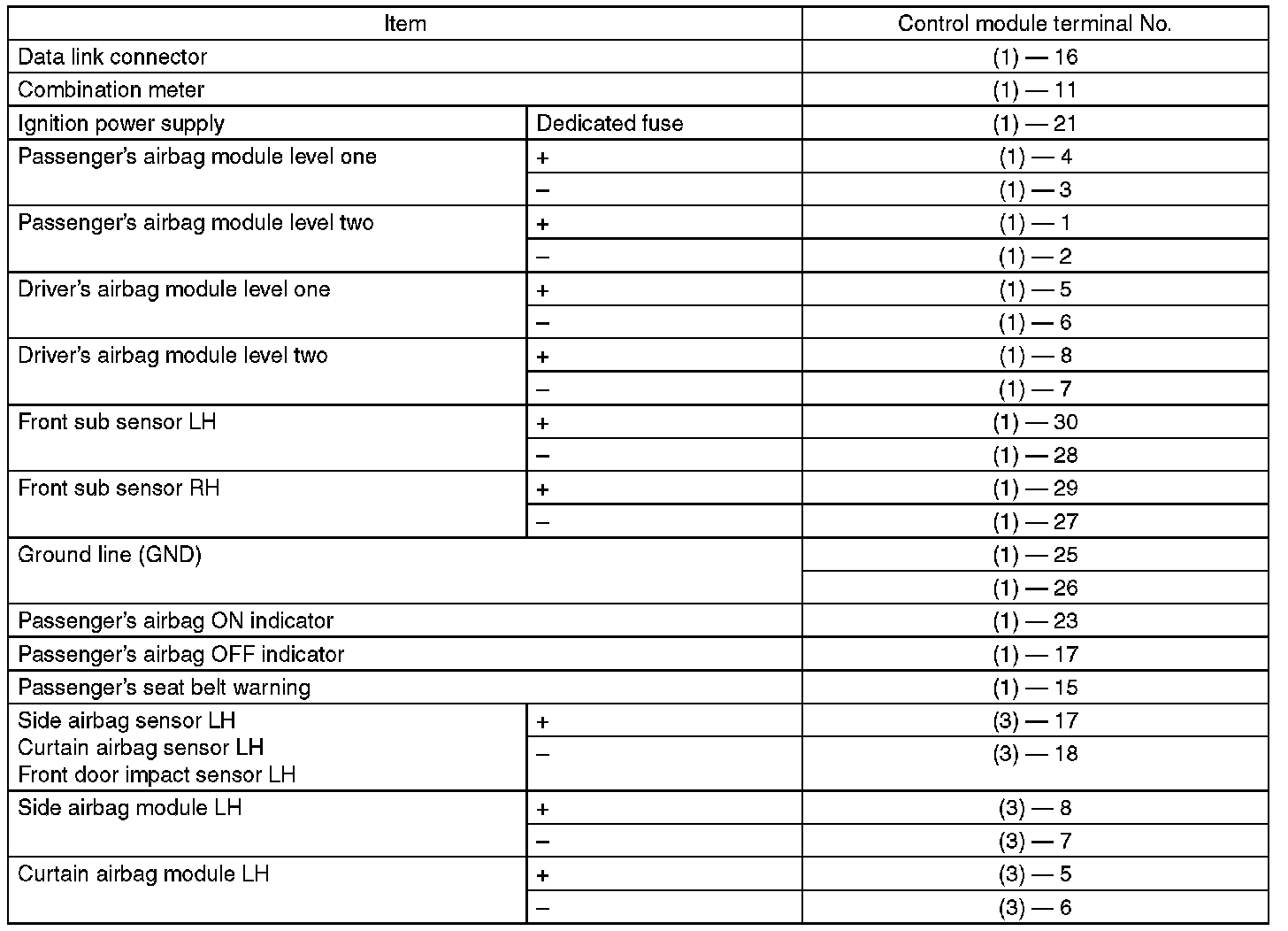

- Terminal numbers in airbag control module connector are shown in the figure.
- The airbag warning light illuminates when the connector is removed from the airbag control module.









- Type B (OUTBACK model)

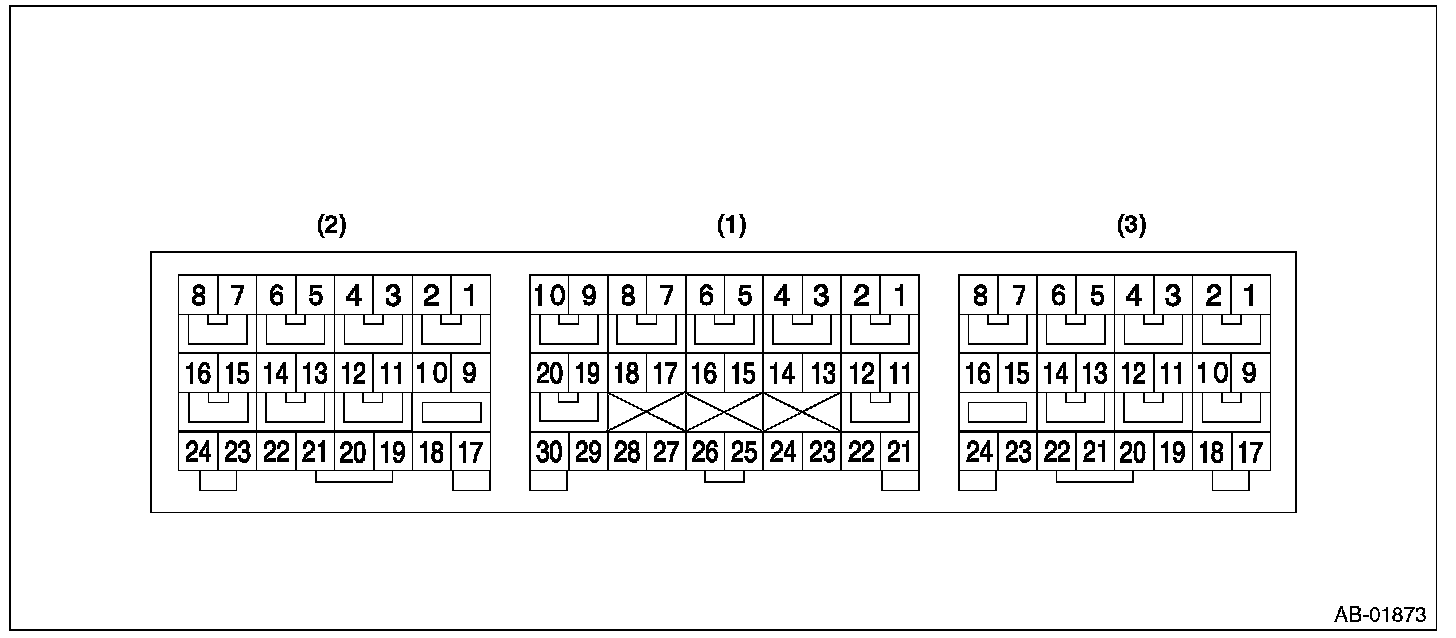

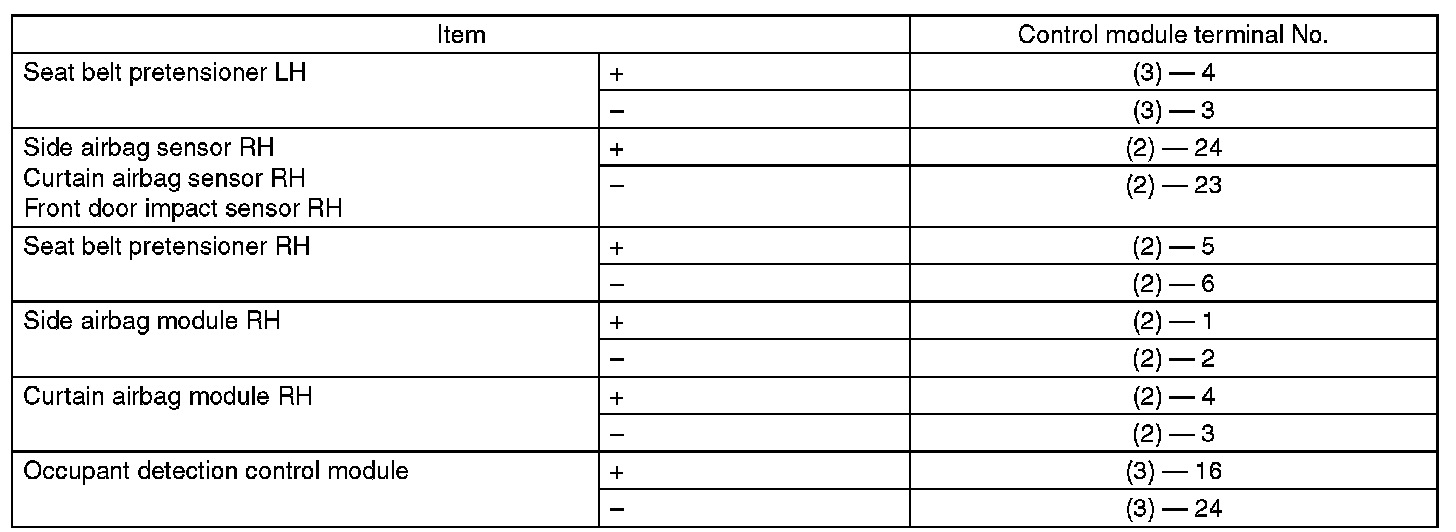

- Terminal numbers in airbag control module connector are shown in the figure.
- The airbag warning light illuminates when the connector is removed from the airbag control module.









- Type B (Sedan model)

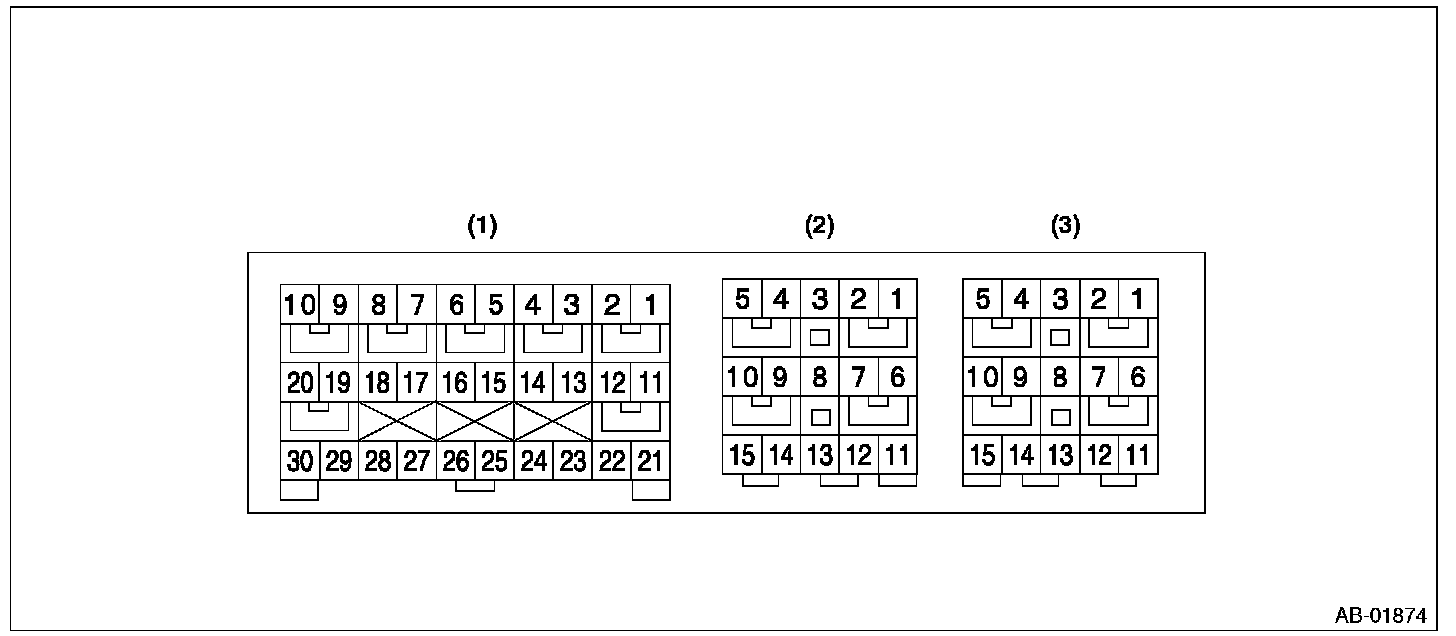

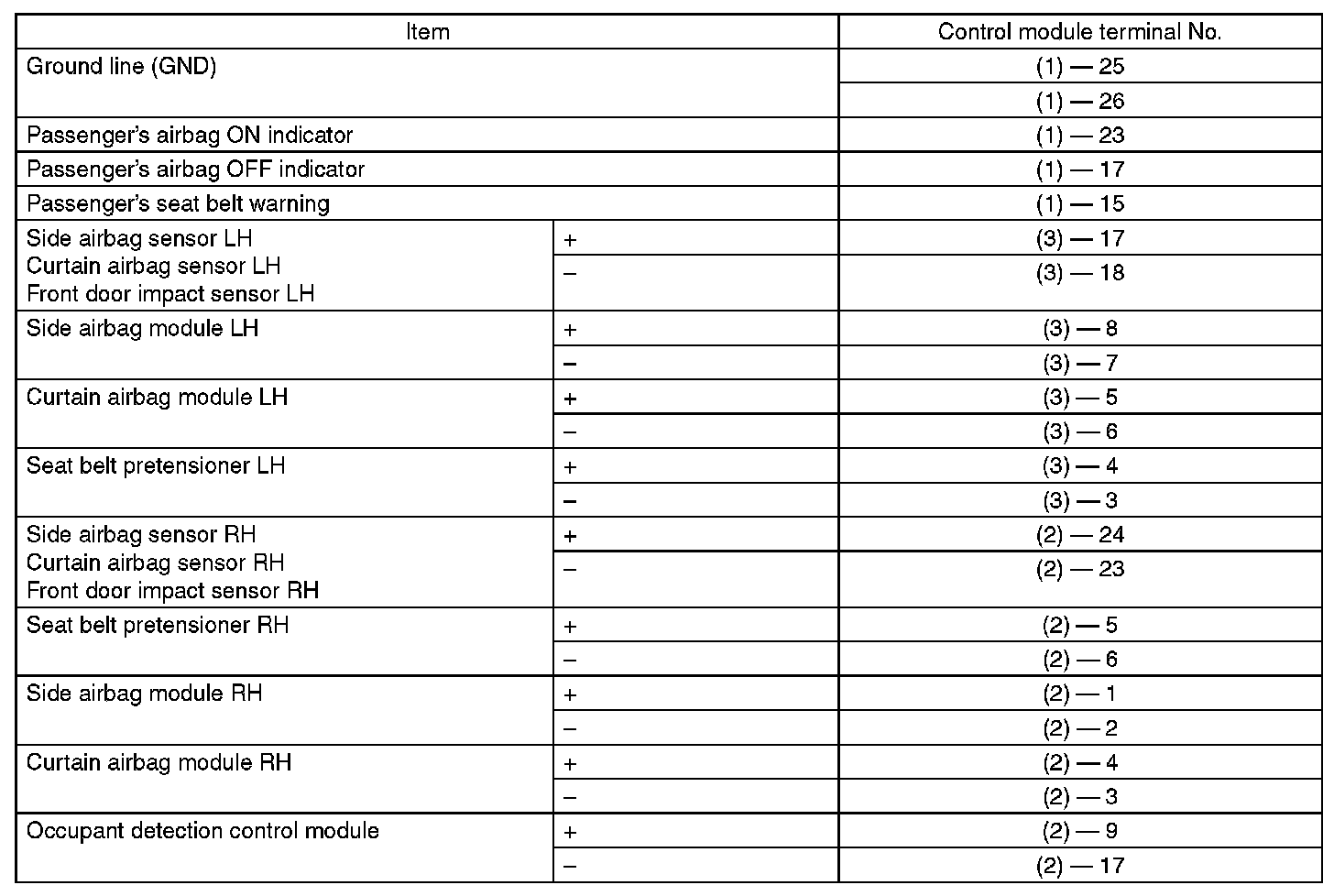

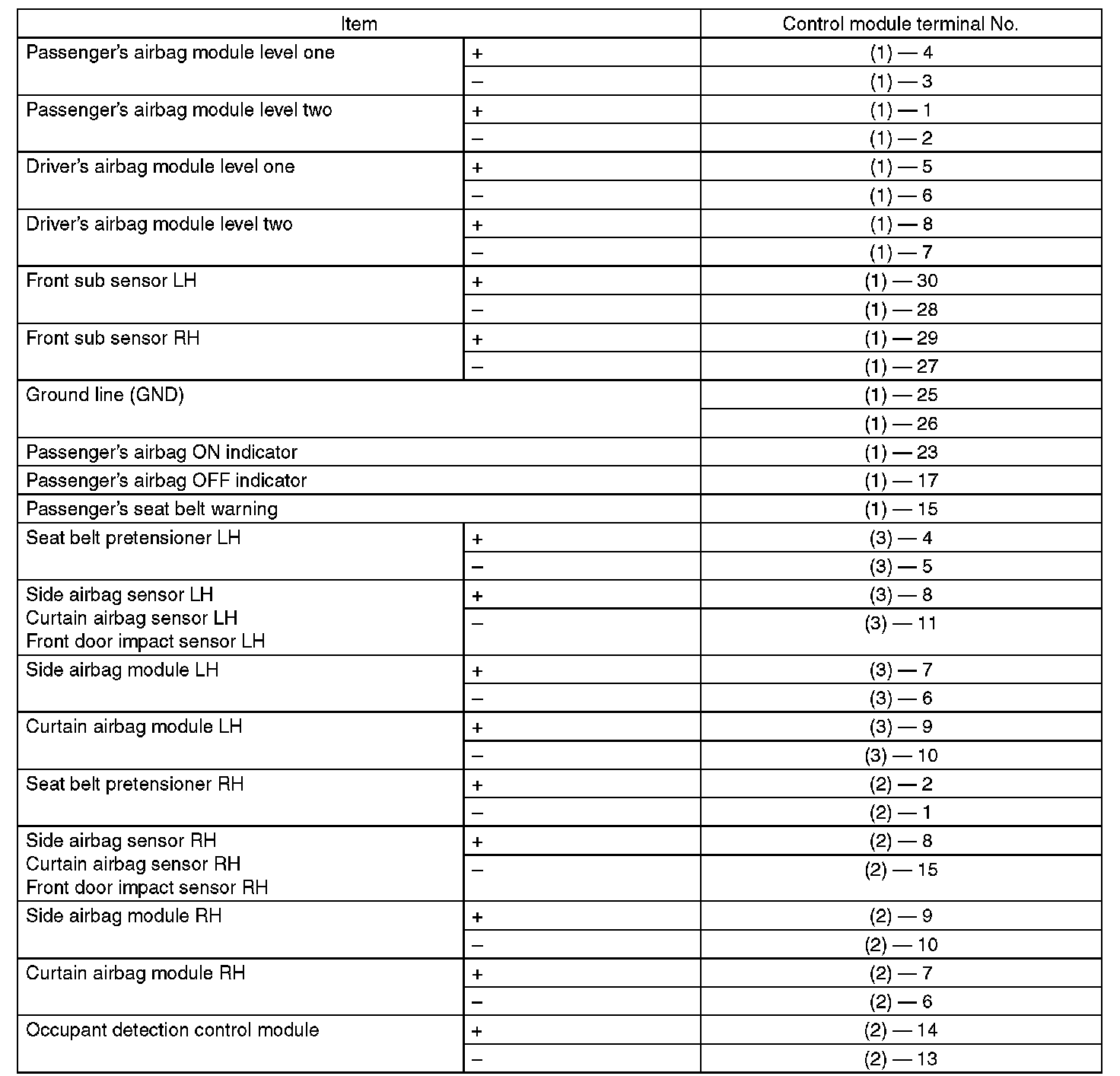

- Terminal numbers in airbag control module connector are shown in the figure.
- The airbag warning light illuminates when the connector is removed from the airbag control module.
