Daytime Running Lamp Resistor: Service and Repair

DAY TIME RUNNING RESISTOR

REMOVAL
1. Remove the front bumper face assembly.

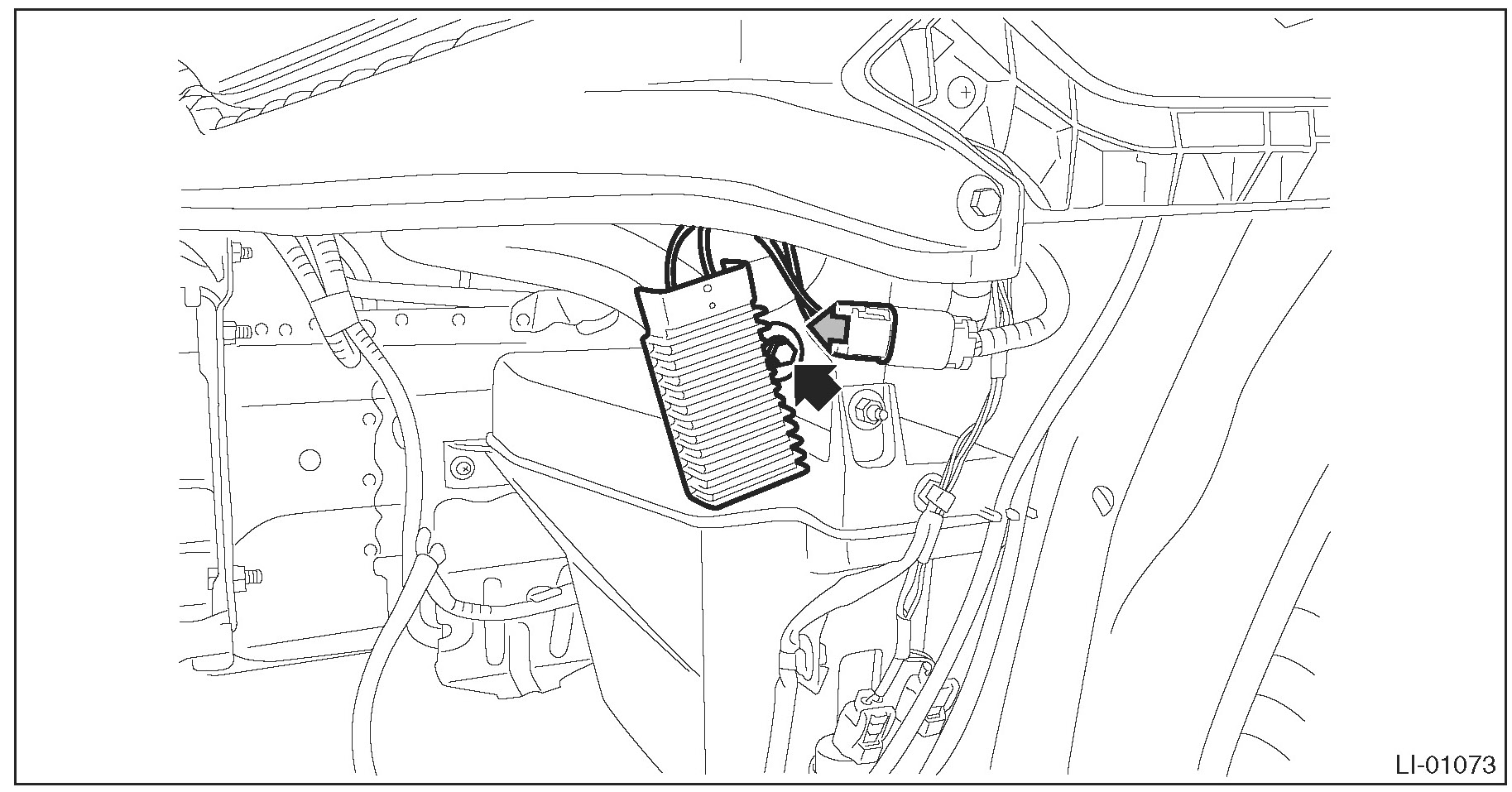

2. Remove the daytime running resistor.
1. Disconnect the connector.
2. Remove the bolt, and remove the daytime running resistor.






INSTALLATION
1. Install each part in the reverse order of removal.

Tightening torque:
Daytime running resistor: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

2. Adjust the fog light beam. (Model with fog light)
