System Diagram



COMPONENT

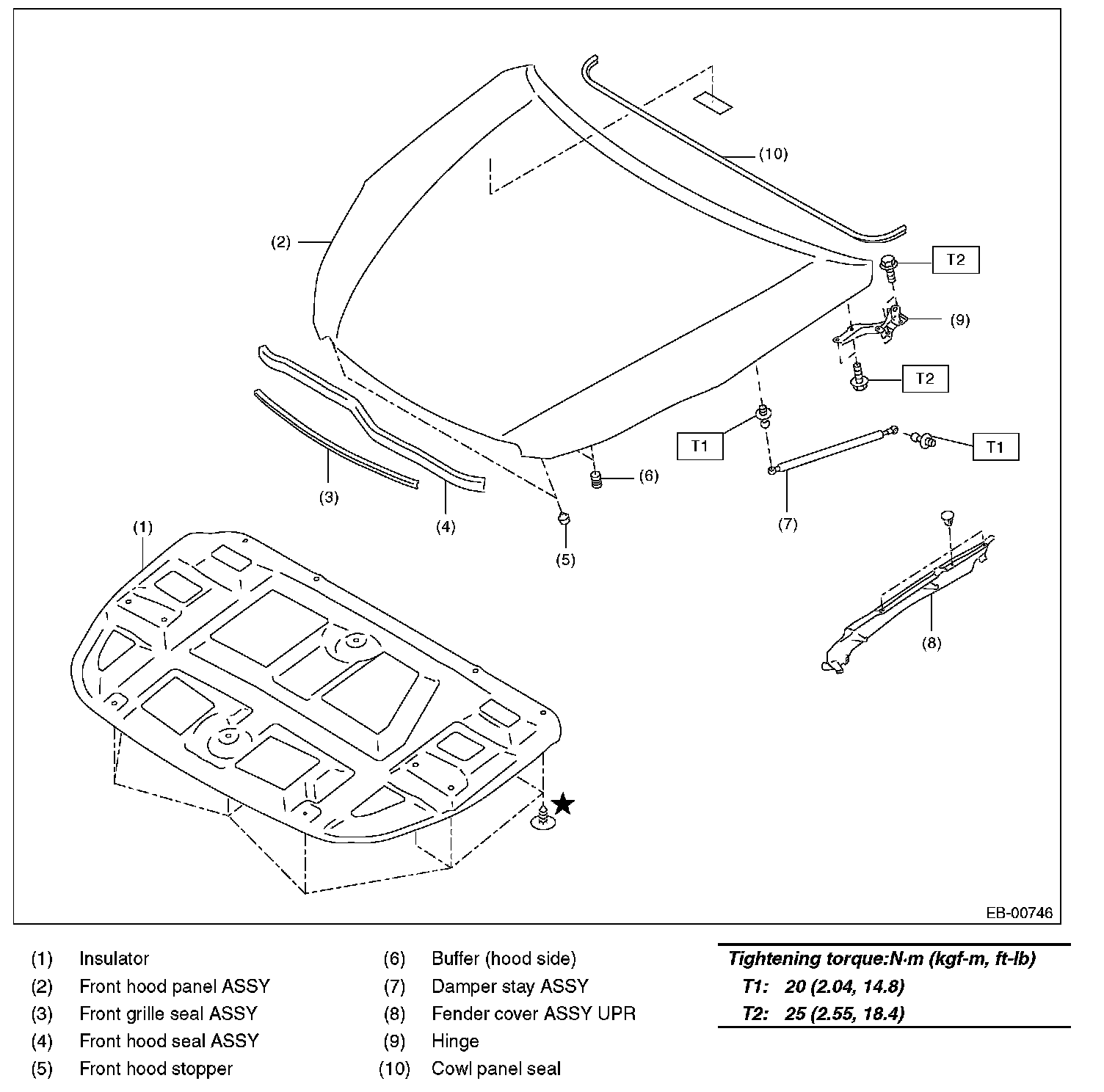

1. FRONT HOOD

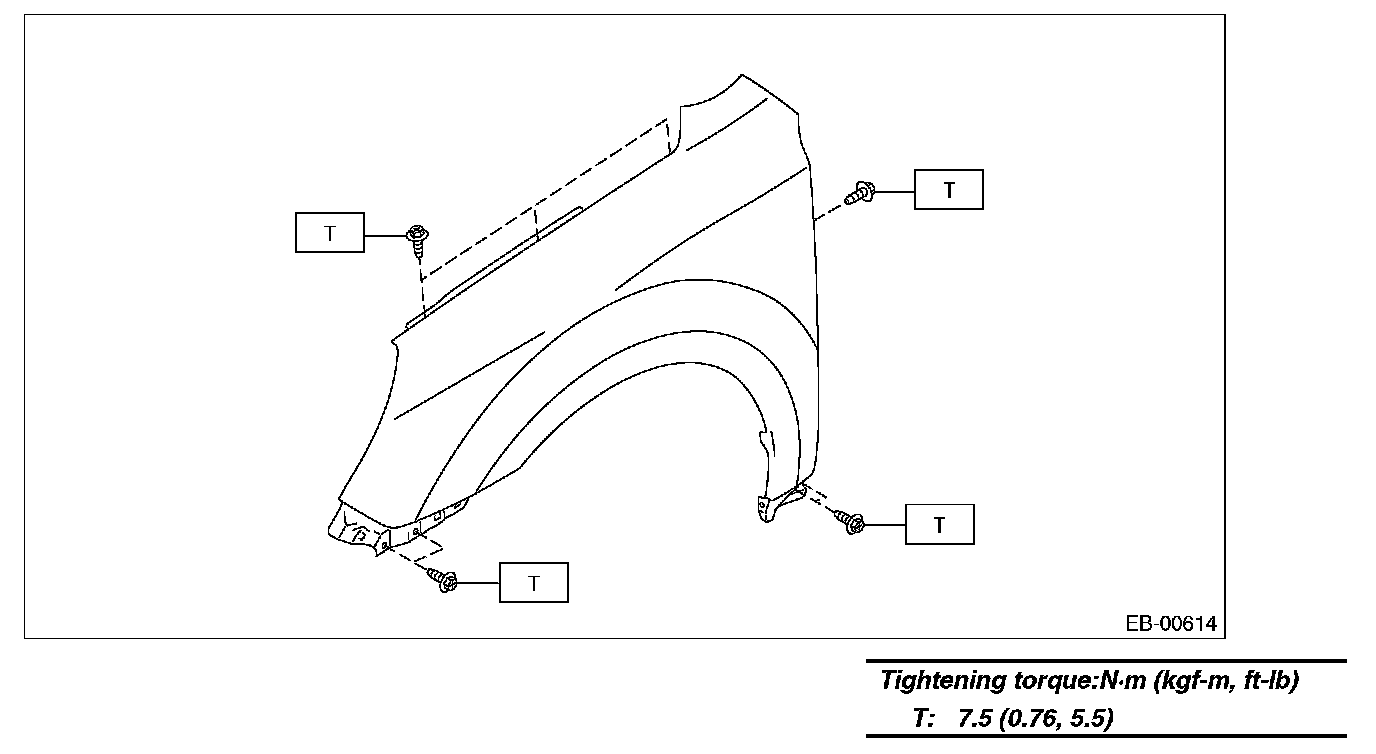

2. FRONT FENDER

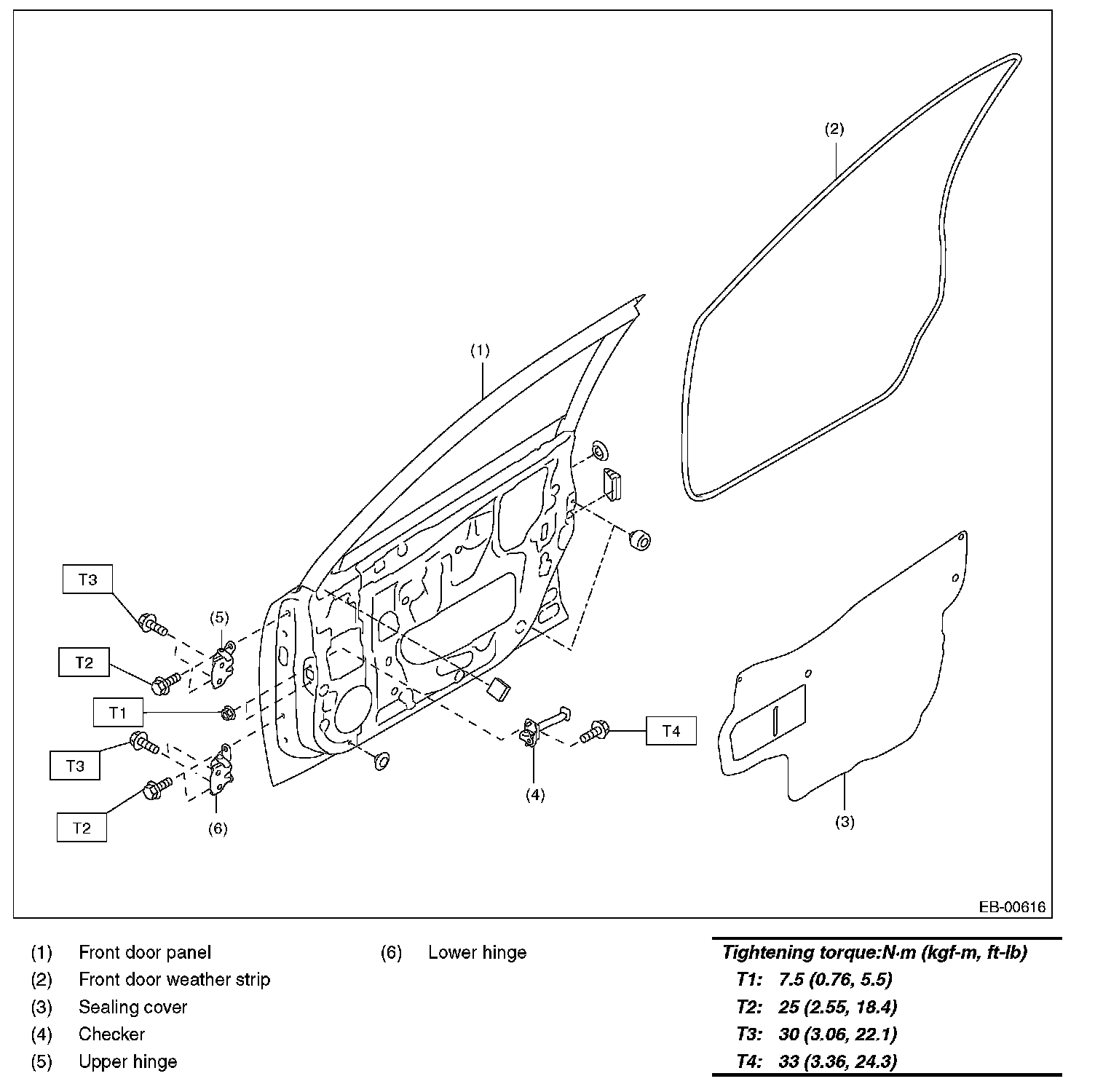

3. FRONT DOOR

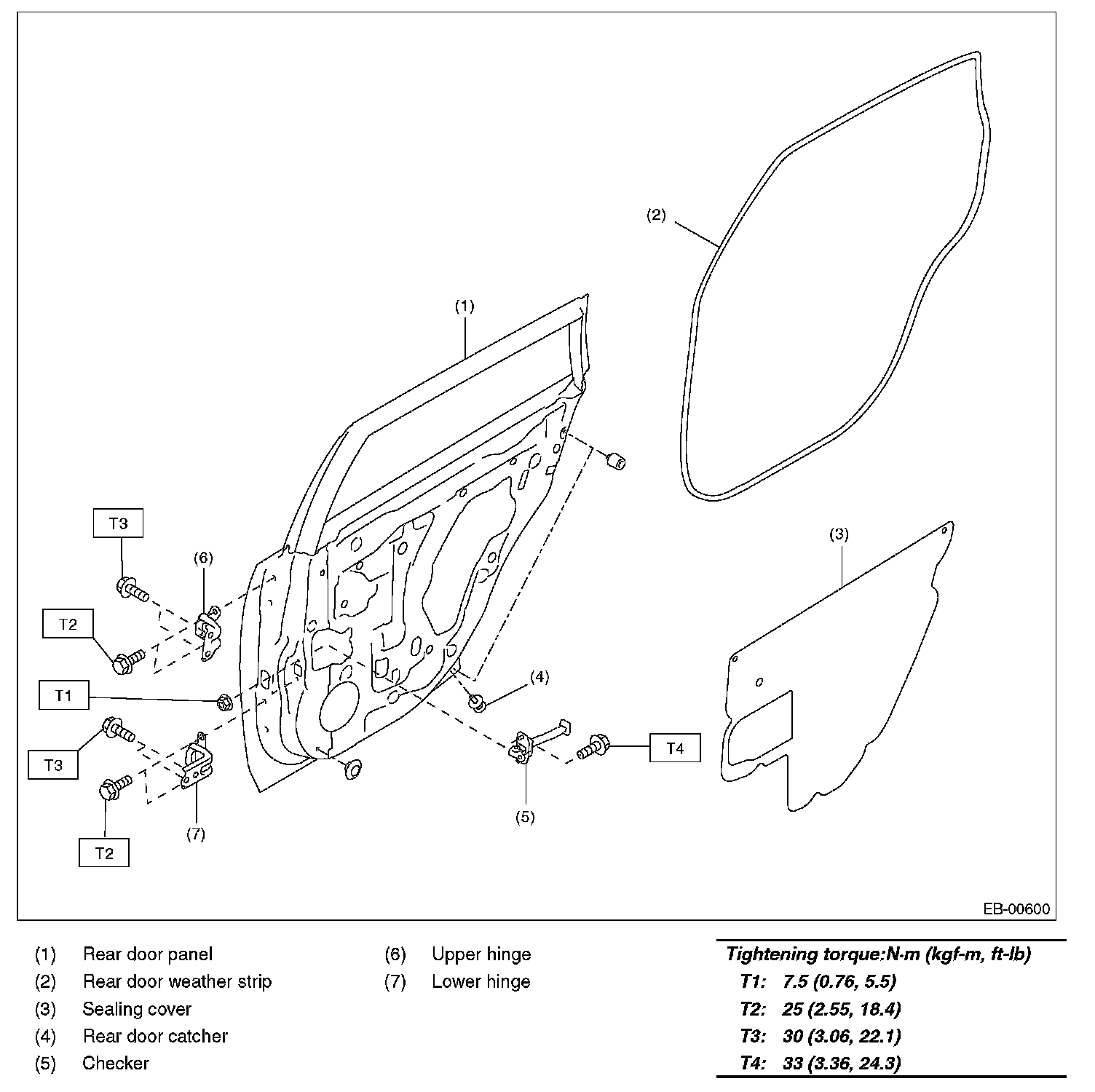

4. REAR DOOR

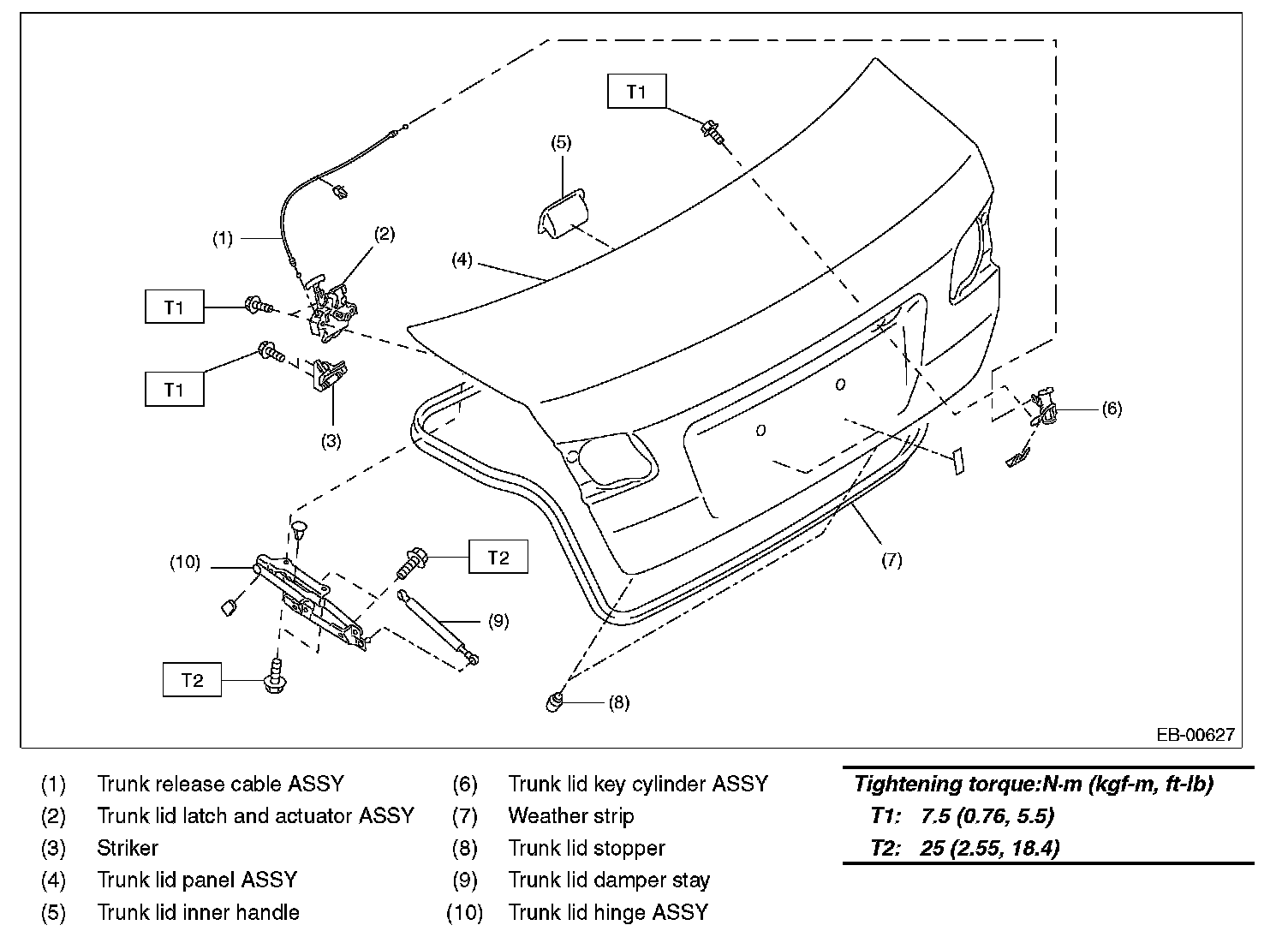

5. TRUNK LID PANEL

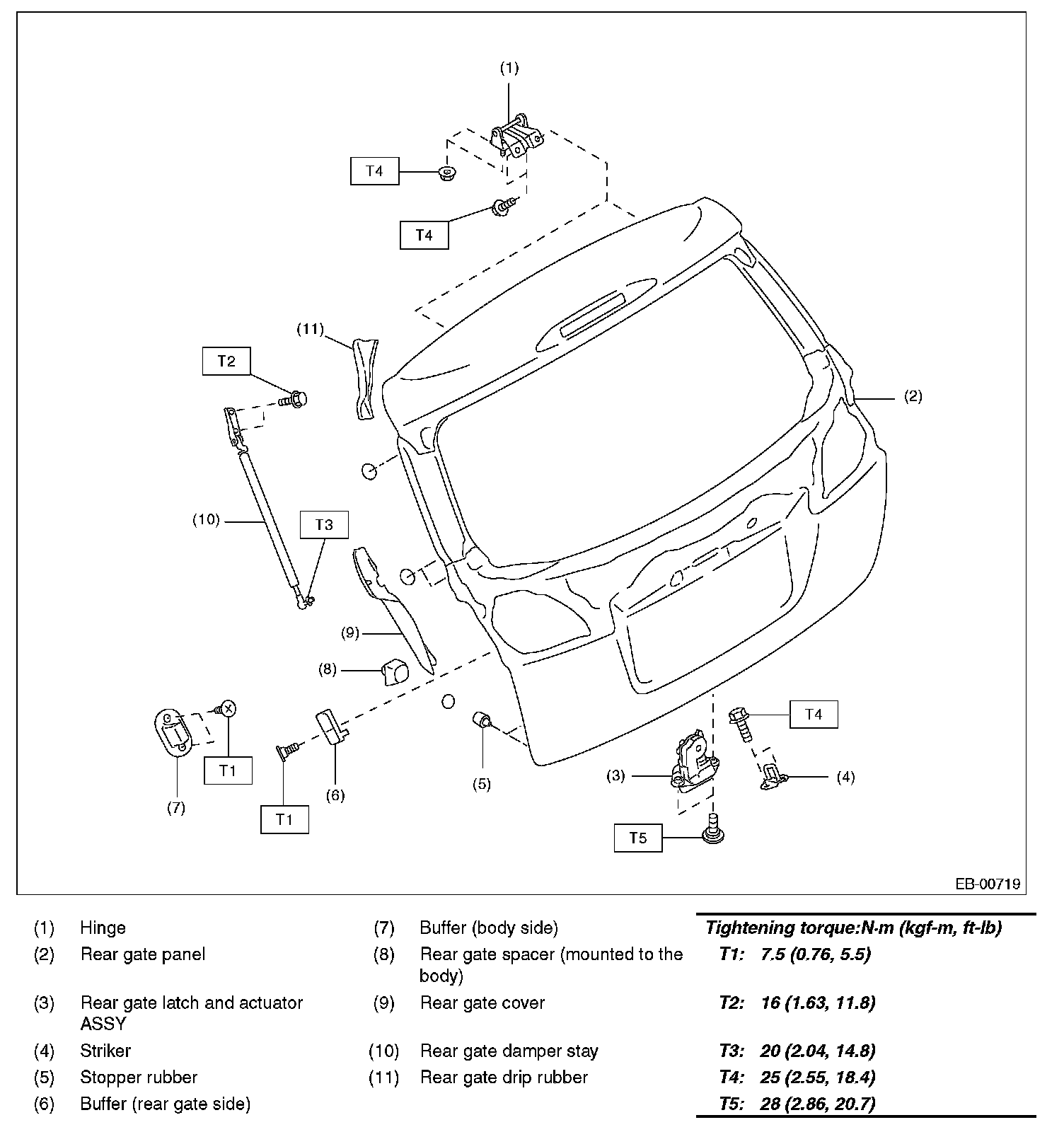

6. REAR GATE
