DTC 61 Belt Pretensioner RH Failure

DTC 61 BELT PRETENSIONER RH FAILURE

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

TYPE A

DTC DETECTING CONDITION:
- Seat belt pretensioner (RH) circuit is open, shorted or shorted to ground.
- Airbag control module is faulty.
- Pretensioner is faulty.
- Pretensioner harness is faulty.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Caution

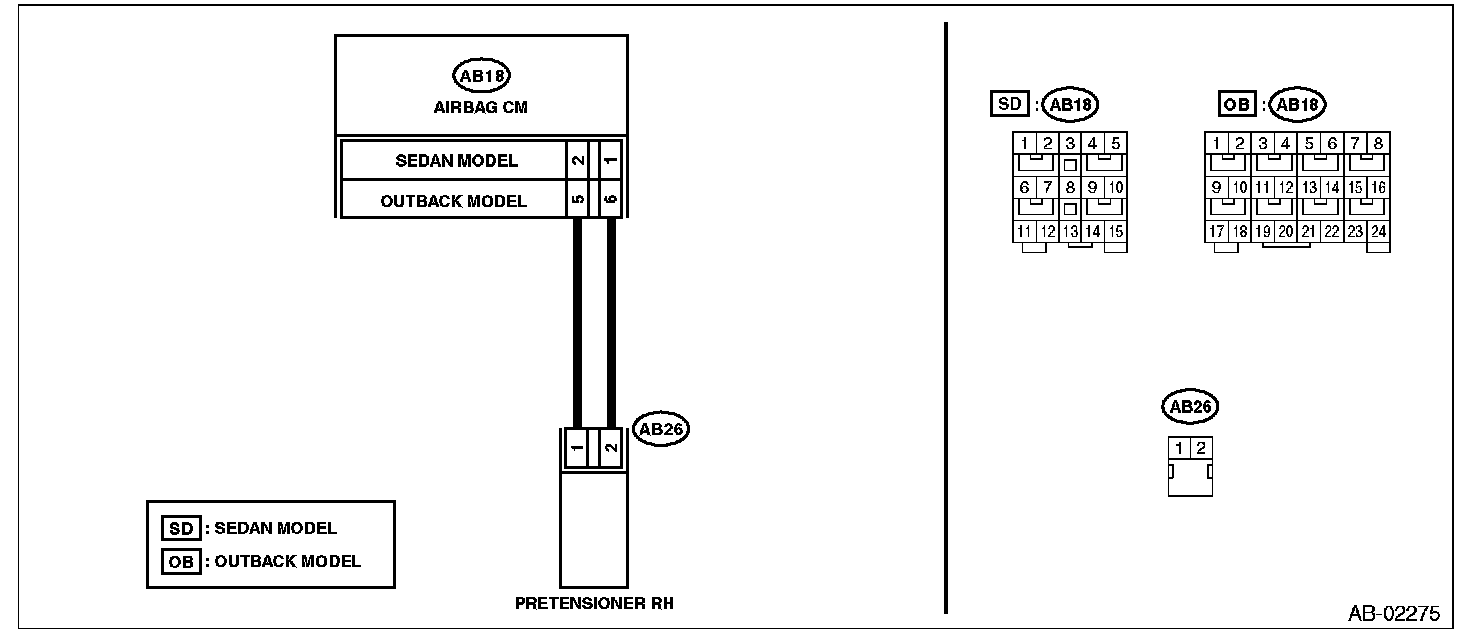

WIRING DIAGRAM:













TYPE B

DTC DETECTING CONDITION:
- Seat belt pretensioner (RH) circuit is shorted to ground.
- Pretensioner (RH) is faulty.
- Pretensioner harness is faulty.
- Airbag control module is faulty.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Caution

WIRING DIAGRAM:
