Home >> Subaru >> 2012 >> Legacy F6-3.6L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 16 >> Cruise Control

Cruise Control

DTC 16

Detected when ignition switch is turned to OFF or malfunction related to the ignition switch occurs.

TROUBLE SYMPTOM:
Cruise control cannot be set.

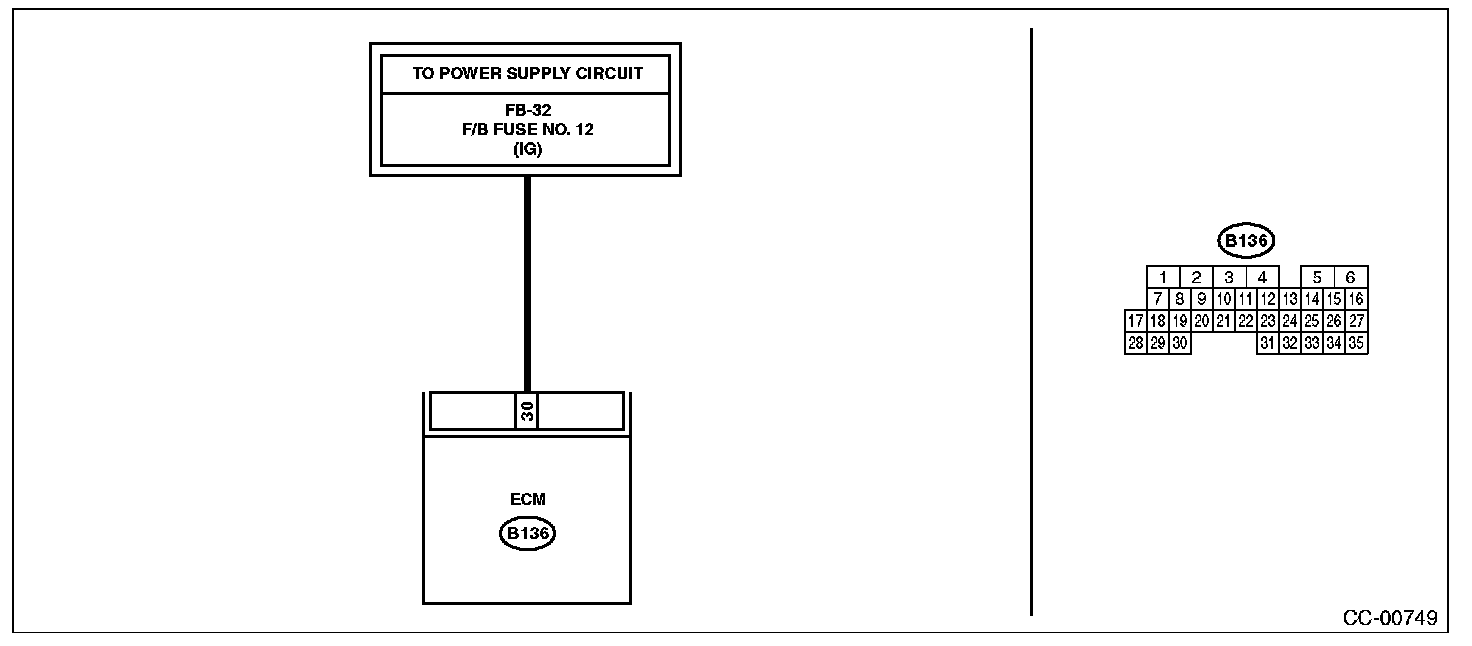

WIRING DIAGRAM:
