Disassembly

Front Arm

DISASSEMBLY

FRONT BUSHING

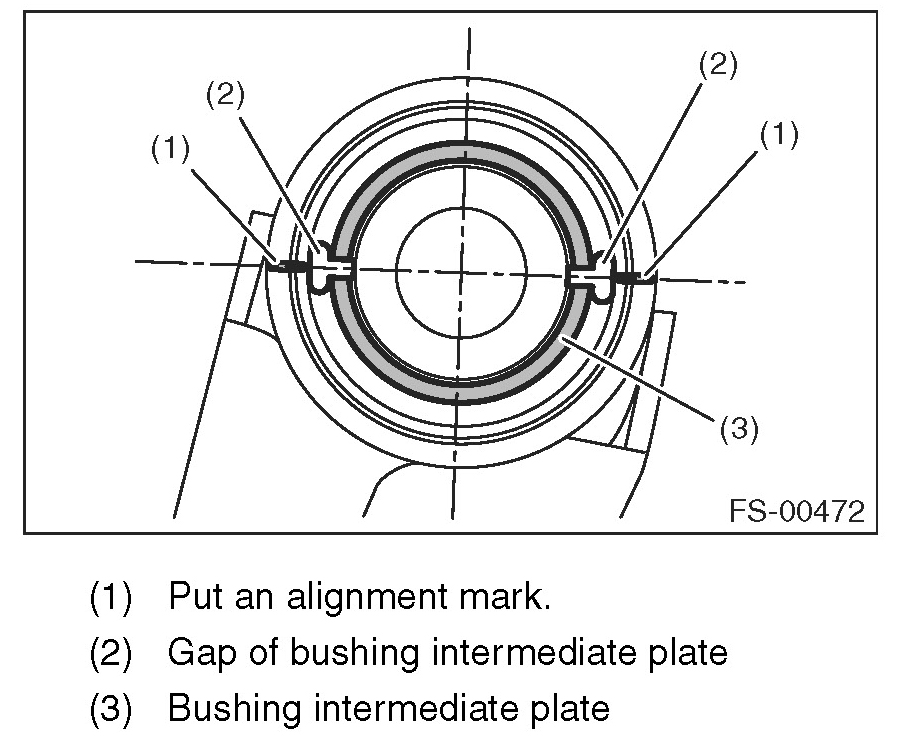

1) Put an alignment mark on the front arm based on the gap of bushing intermediate plate for front bushing.

CAUTION:
Always put an alignment mark for aligning the position on bushing installation.

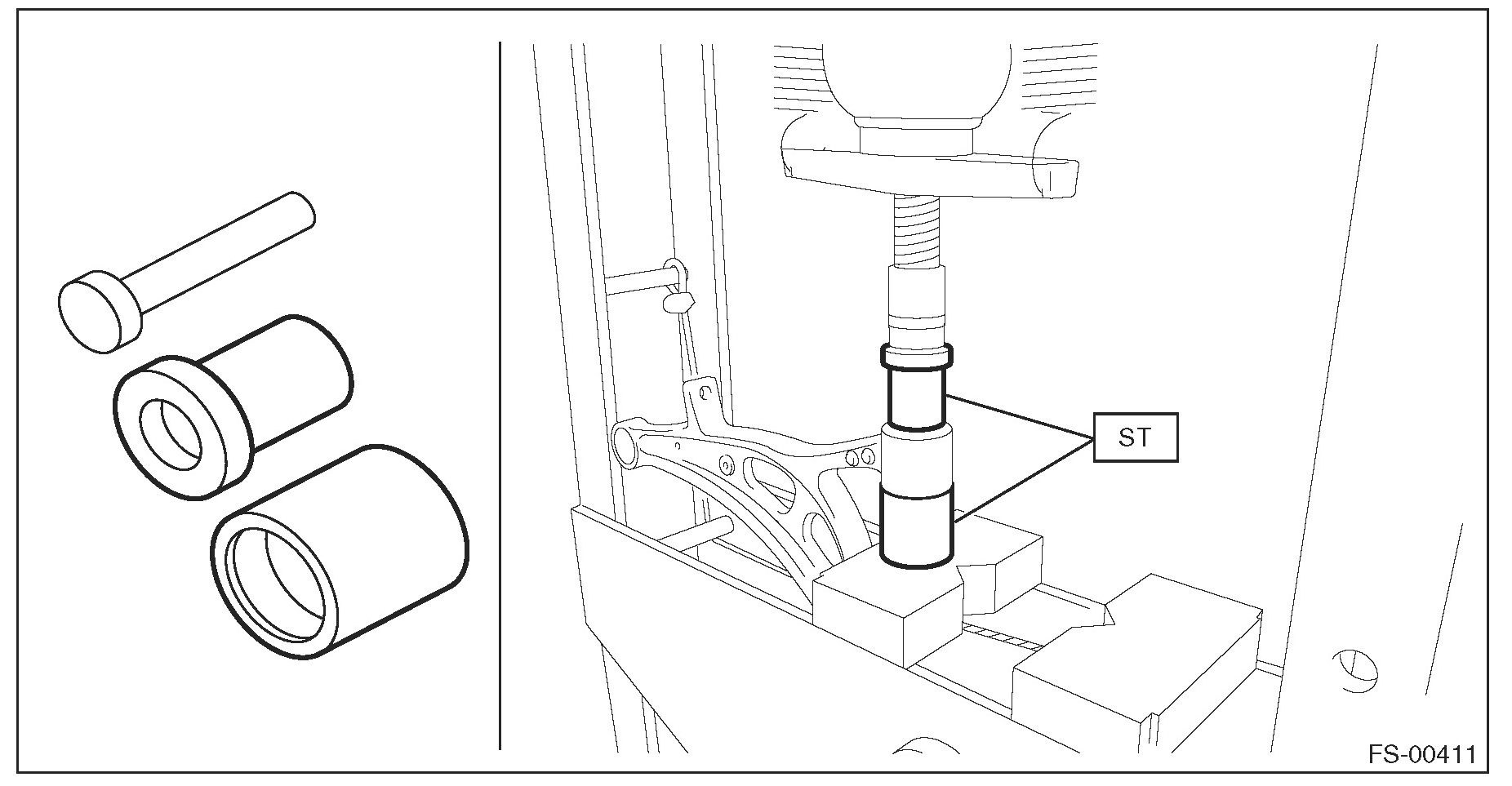

2) Using the ST and a press, remove the front bushing.

PREPARATION TOOL:
ST: INSTALLER & REMOVER SET (927680000)





REAR BUSHING

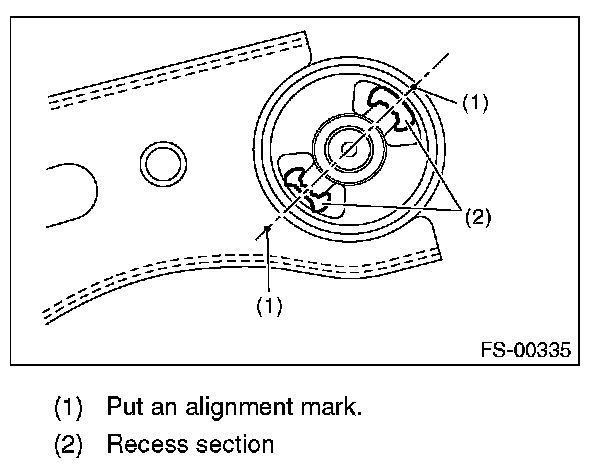

1) Put an alignment mark on the front arm based on the center of rear bushing recess portion.

CAUTION:
Always put an alignment mark for aligning the position on bushing installation.

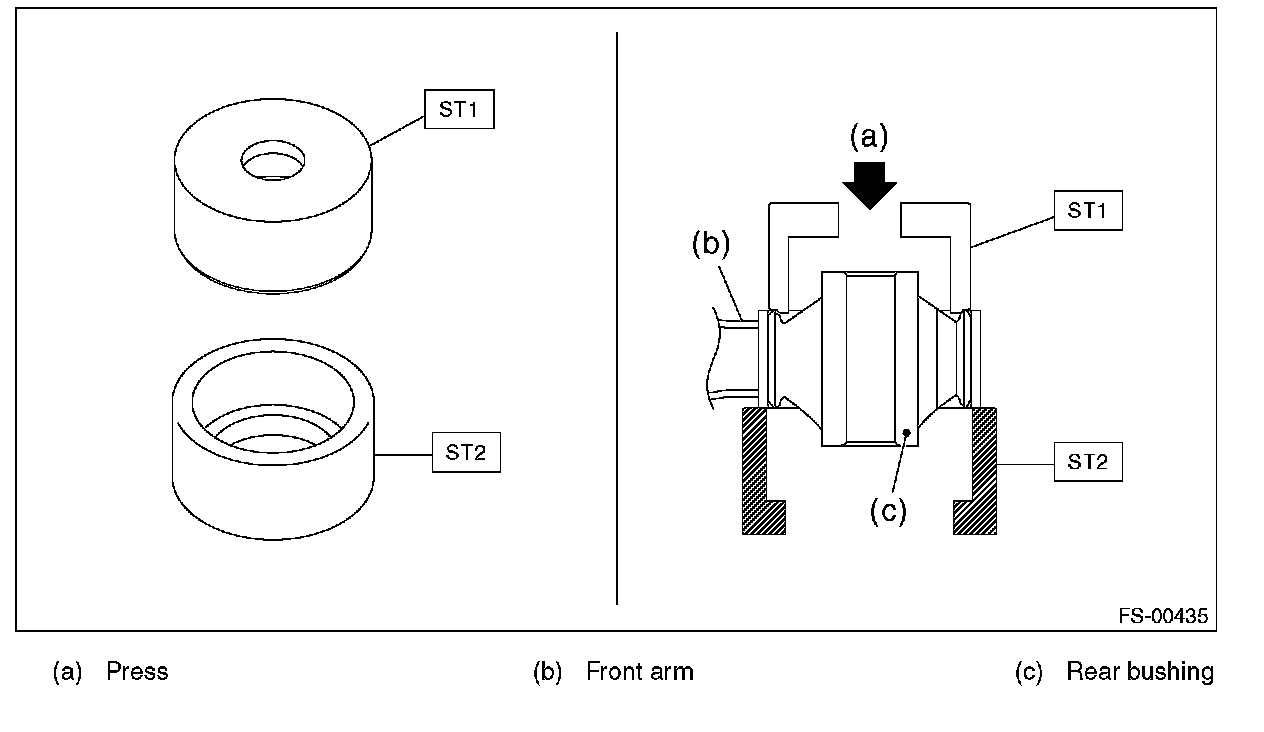

2) Using the ST and a press, remove the rear bushing.

PREPARATION TOOL:
ST1: REMOVER (20299AG000)
ST2: BASE (20299AG010)
