Installation

Reservoir Tank

INSTALLATION

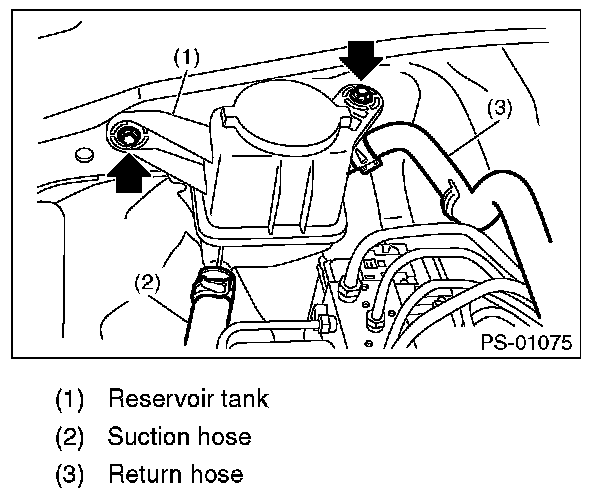

1) Install the reservoir tank to the body.

Tightening torque:
13 Nm (1.33 kgf-m, 9.6 ft-lb)

2) Connect the hose to the reservoir tank.





3) Replenish power steering fluid up to the specified level. Testing and Inspection
