Fuel Pressure: Testing and Inspection
Fuel PressureINSPECTION
CAUTION:
^ Before removing the fuel pressure gauge, release the fuel pressure.
^ Be careful not to spill fuel.
^ Catch the fuel from hoses using a container or cloth.
1) Remove the collector cover.
2) Release the fuel pressure.
3) Open the fuel filler lid and remove the fuel filler cap.
4) Disconnect the fuel delivery hose from the fuel delivery pipe, and connect the fuel pressure gauge.
CAUTION:
^ Be careful not to spill fuel.
^ Catch the fuel from hoses using a container or cloth.

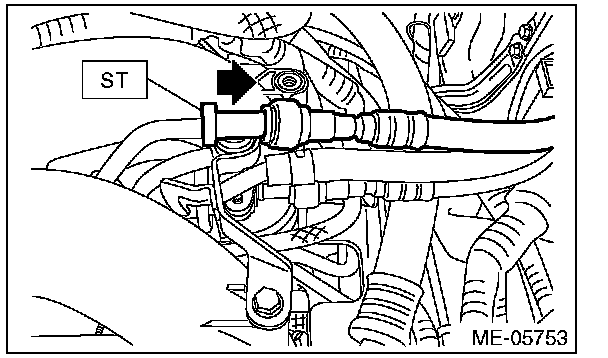

(1) Attach ST to the fuel delivery pipe and push ST in the direction of arrow mark to disconnect the quick connector of the fuel delivery hose.
ST 42099AE000 QUICK CONNECTOR RELEASE

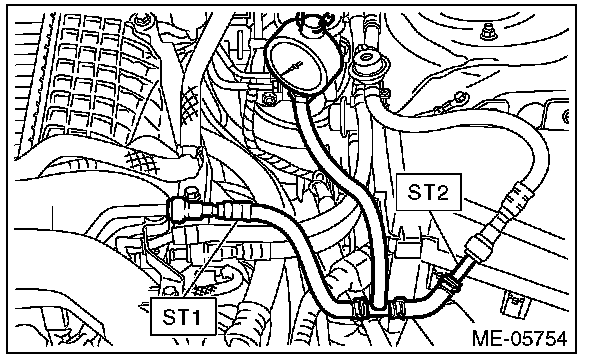

(2) Connect the fuel pressure gauge with ST1 and ST2.
NOTE:
ST1 is a SUBARU genuine part.
ST1 42075AG690 FUEL HOSE
ST2 18471AA000 FUEL PIPE ADAPTER
5) Start the engine.
6) Check the fuel pressure while disconnecting pressure regulator vacuum hose from intake manifold.
NOTE:
^ The fuel pressure gauge registers 10 to 20 kPa (0.1 to 0.2 kgf/cm2, 1 to 3 psi) higher than standard values during high-altitude operations.
^ If the fuel pressure is out of specification, check or replace the fuel pump, fuel line, pressure regulator and pressure regulator vacuum hose.
Fuel pressure:
Standard
328 - 358 kPa (3.3 - 3.7 kgf/cm2, 48 - 52 psi)
7) After connecting the vacuum hose to the pressure regulator, check the fuel pressure again.
NOTE:
^ The fuel pressure gauge registers 10 to 20 kPa (0.1 to 0.2 kgf/cm2, 1 to 3 psi) higher than standard values during high-altitude operations.
^ If the fuel pressure is out of specification, check or replace the fuel pump, fuel line, pressure regulator and pressure regulator vacuum hose.
Fuel pressure:
Standard
274 - 304 kPa (2.8 - 3.1 kgf/cm2, 40 - 44 psi)
8) After inspection, install the related parts in the reverse order of removal.
