Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Unit

REMOVAL

1. Disconnect the ground cable from battery.






2. Remove the trunk trim panel assembly - side on the RH side

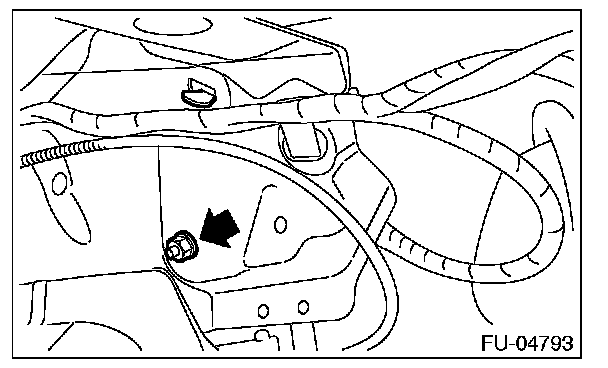

3. Remove the fuel pump control unit.






4. Disconnect the connector from fuel pump control unit.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: 5 N.m (0.5 kgf-m, 3.7 ft-lb)
