Wastegate Solenoid: Testing and Inspection
Wastegate Control Solenoid ValveINSPECTION
1. WASTEGATE CONTROL SOLENOID VALVE
1. Check that the wastegate control solenoid valve has no deformation, cracks or other damages.

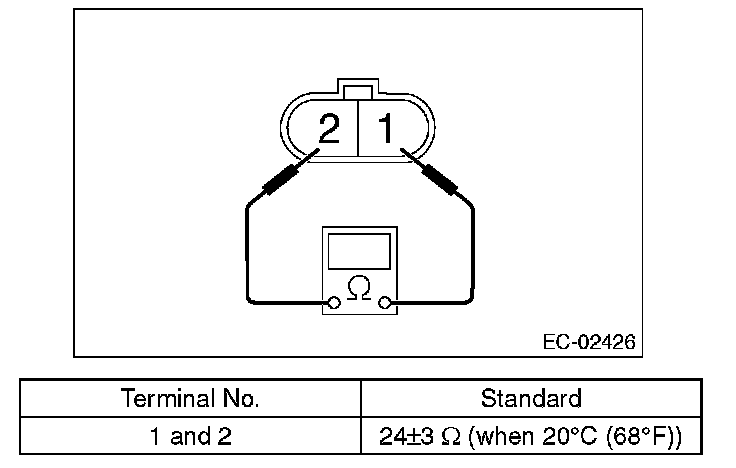

2. Check the resistance between the wastegate control solenoid valve terminals.

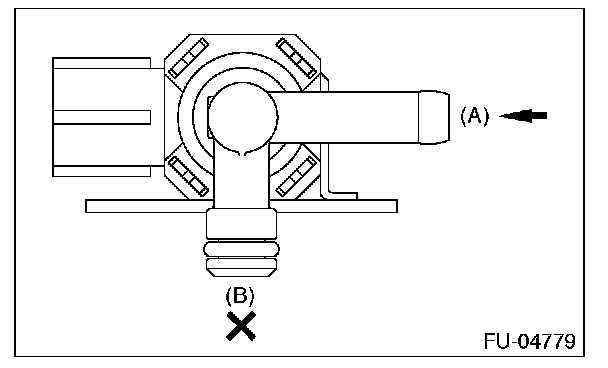

3. Check that air does not come out from (B) when air is blown into (A).
4. Connect the battery positive terminal to the terminal No. 1 and the battery negative terminal to the terminal No. 2. Check that air is discharged from (B), when supplying air to (A).
2. OTHER INSPECTIONS
Check that the air control hose has no cracks, damage or loose part.
