Removal and Replacement

Air Intake Boot

REMOVAL

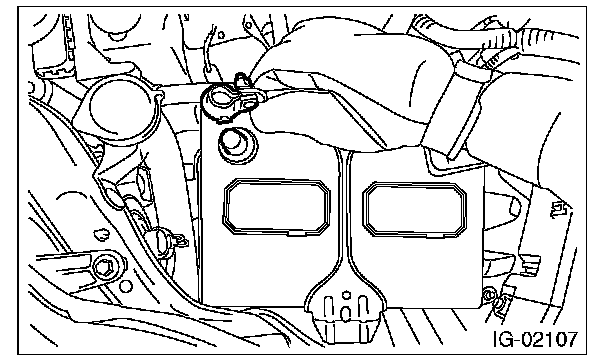

1. Disconnect the ground cable from battery.






2. Remove the air intake duct.
3. Remove the air cleaner case.
4. Lift up the vehicle.
5. Remove the under cover.

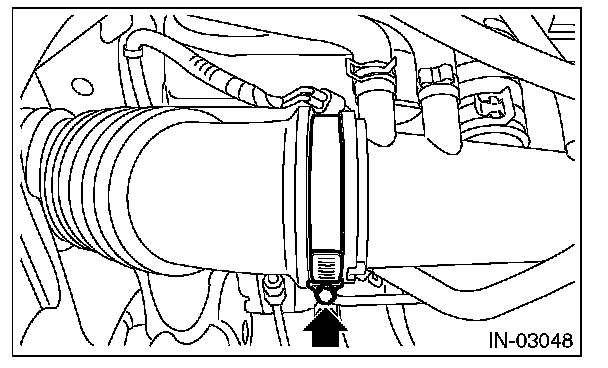

6. Remove the air intake boot from the intake duct.






7. Lower the vehicle.

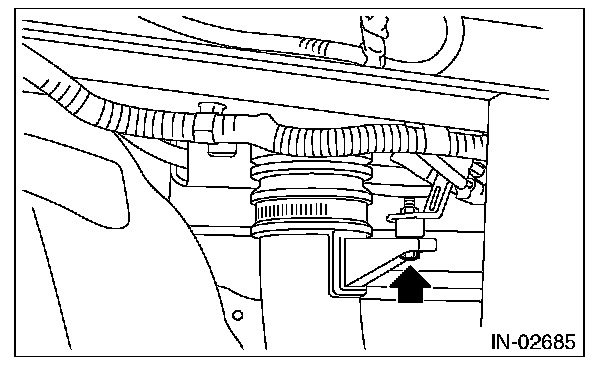

8. Remove the nuts which secure the air intake boot to the vehicle, and remove the air intake boot from the upper side of the vehicle.






INSTALLATION

Install in the reverse order of removal.

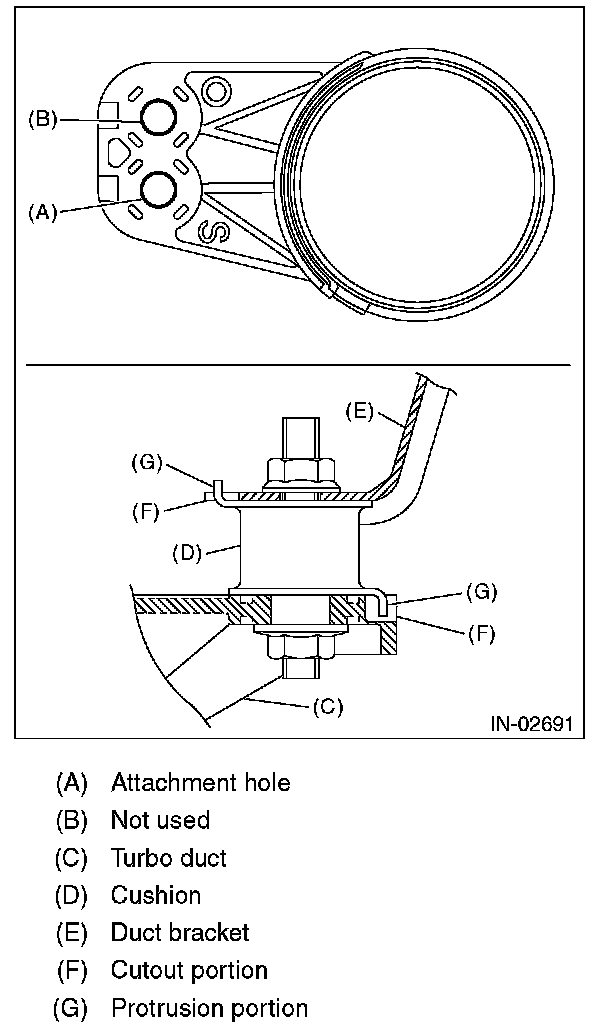

NOTE: When installing the air intake boot to the vehicle, pay attention to the mounting hole position, and align the protrusion for stopping rotation of cushion to the cutout portion on the turbo duct.






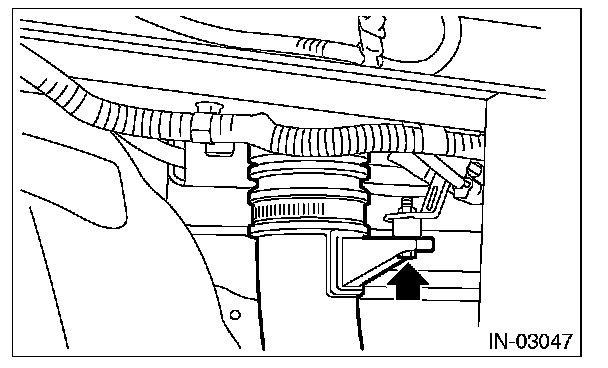

Tightening torque: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)






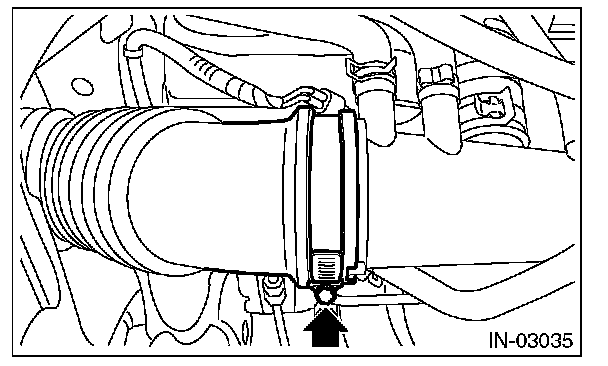

Tightening torque: 2.5 N.m (0.3 kgf-m, 1.8 ft-lb)
