Intake Air Duct: Service and Repair

Air Intake Duct

REMOVAL

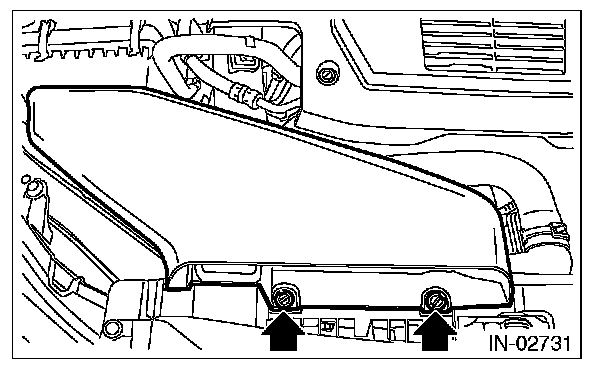

Remove the clip which secures air intake duct then remove the air intake duct.






INSTALLATION

Install in the reverse order of removal.
