Fuel Injection (Fuel Systems)
Fuel Injection (Fuel Systems)
Fuel Injector
INSPECTION
1.
Check that the
fuel injector
has no deformation, cracks or other damages.
2.

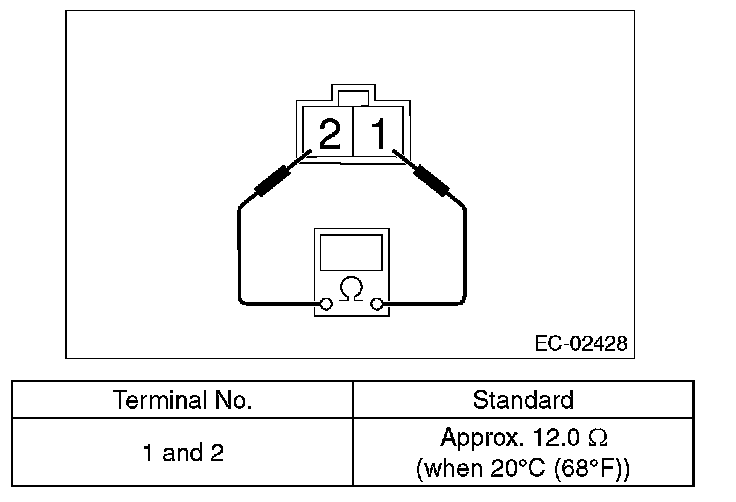

Measure the resistance between
fuel injector
terminals.
