Leak Detection Solenoid: Testing and Inspection
Pressure Control Solenoid Valve AssemblyINSPECTION
1. PRESSURE CONTROL SOLENOID VALVE ASSEMBLY
1. Check that the pressure control solenoid valve assembly has no deformation, cracks or other damages.

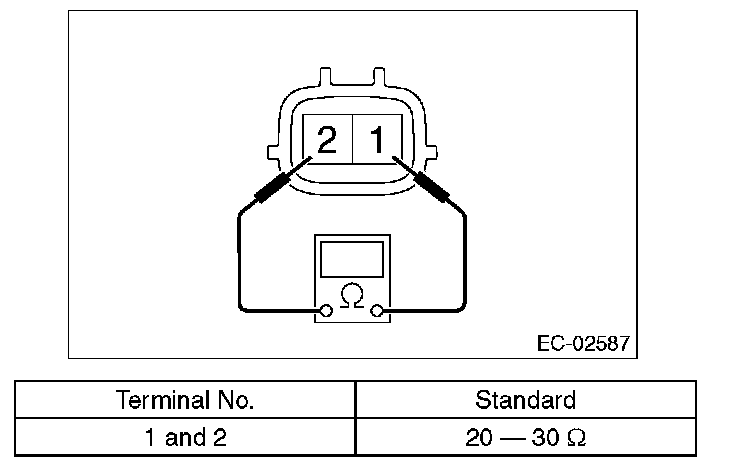

2. Check the resistance between the pressure control solenoid valve assembly terminals.
2. OTHER INSPECTIONS
Check that the hose has no cracks, damage or loose part.
