Leak Detection Solenoid: Service and Repair

Pressure Control Solenoid Valve Assembly

REMOVAL

1. Disconnect the ground cable from battery.






2. Lift up the vehicle.

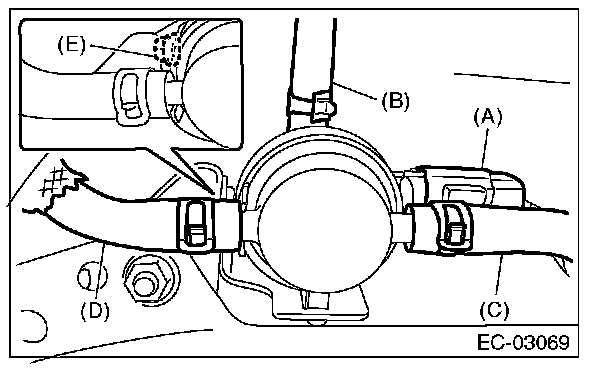

3. Disconnect connector (A) from the pressure control solenoid valve assembly.
4. Disconnect the PCV drain hose (B), PCV inlet hose (C) and PCV outlet hose (D) from the pressure control solenoid valve assembly.
5. Remove the nut (E) securing the bracket to the fuel tank and remove the pressure control solenoid valve assembly.

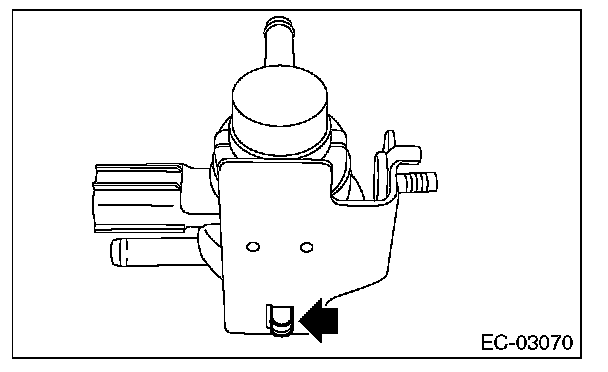

6. Remove the pressure control solenoid valve from the bracket.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: 2.5 N.m (0.3 kgf-m, 1.8 ft-lb)
