Canister Purge Solenoid: Service and Repair
Purge Control Solenoid ValveREMOVAL
1. PURGE CONTROL SOLENOID VALVE 1
1. Remove the collector cover.
2. Disconnect the ground cable from battery.
3. Remove the intercooler.
4. Remove the bolt securing the solenoid valve bracket assembly from intake manifold.

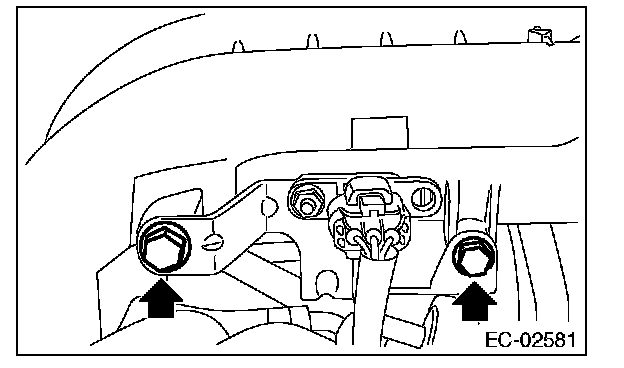

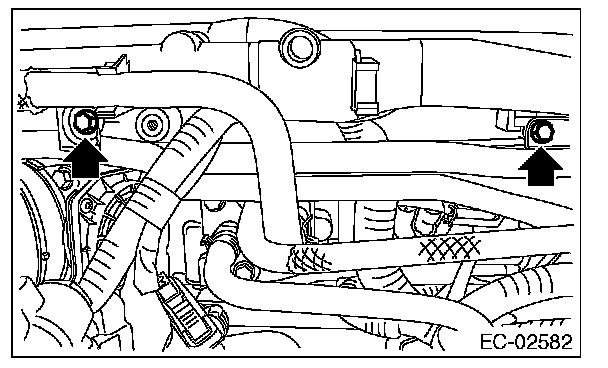

5. Remove the bolts securing the PCV pipe and engine harness from intake manifold.

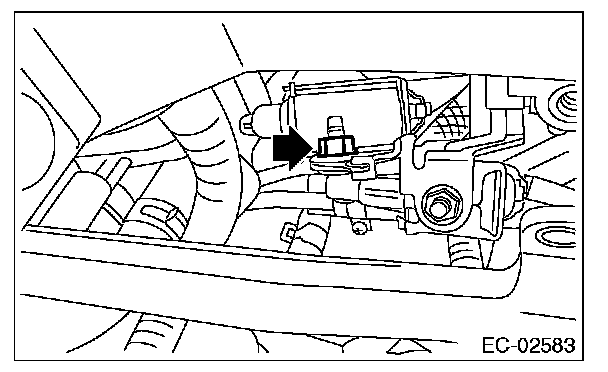

6. Remove the nut securing the purge control solenoid valve 1 to the solenoid valve bracket assembly.

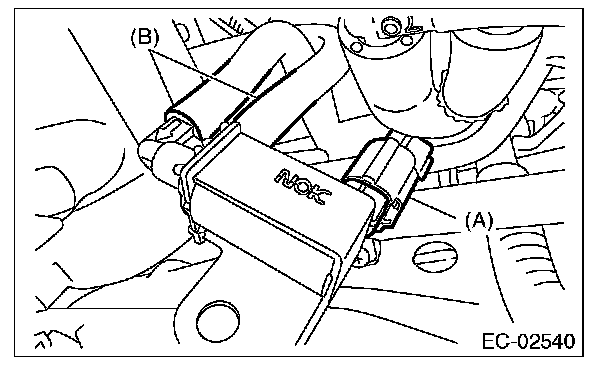

7. Disconnect the connector (A) and vacuum hose (B) from the purge control solenoid valve 1, and remove the purge control solenoid valve 1.
2. PURGE CONTROL SOLENOID VALVE 2
1. Remove the collector cover.
2. Disconnect the ground cable from battery.
3. Remove the intercooler.

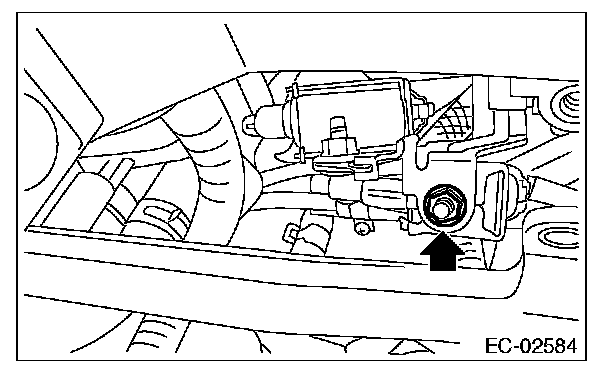

4. Remove the bolt securing the solenoid valve bracket assembly from intake manifold.

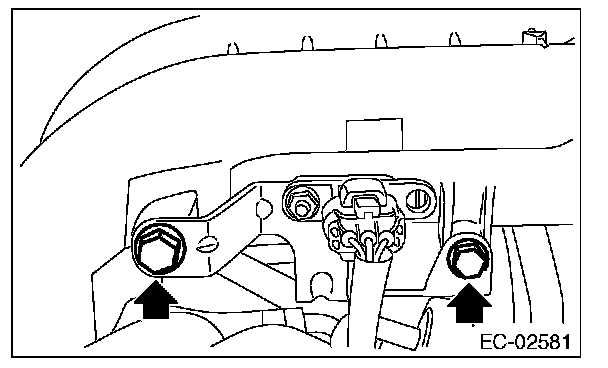

5. Remove the bolts securing the PCV pipe and engine harness from intake manifold.

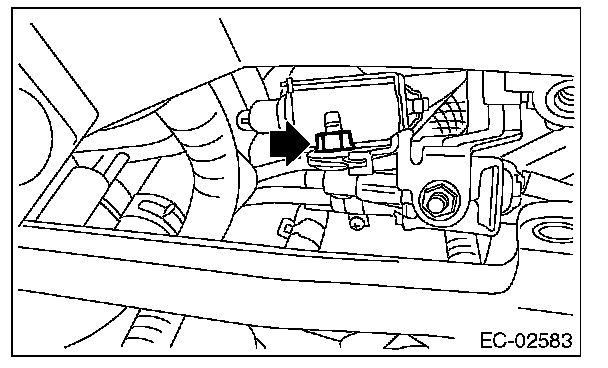

6. Remove the nut securing the purge control solenoid valve 2 to the solenoid valve bracket assembly.

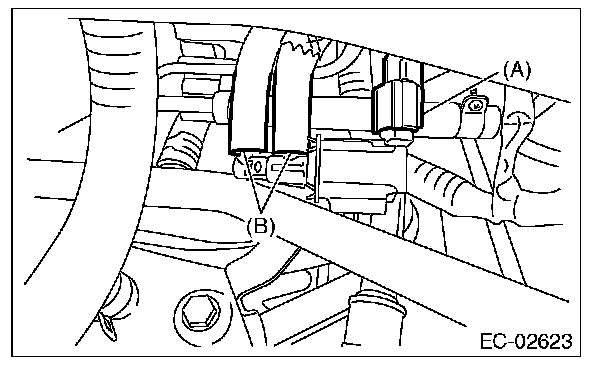

7. Disconnect the connector (A) and vacuum hose (B) from the purge control solenoid valve 2, and remove the purge control solenoid valve 2.
INSTALLATION
1. PURGE CONTROL SOLENOID VALVE 1
Install in the reverse order of removal.
NOTE: Connect the vacuum hose as shown in the figure.
Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Tightening torque: 19 N.m (1.9 kgf-m, 14.0 ft-lb)
2. PURGE CONTROL SOLENOID VALVE 2
Install in the reverse order of removal.
NOTE: Connect the vacuum hose as shown in the figure.
Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Tightening torque: 19 N.m (1.9 kgf-m, 14.0 ft-lb)
