Intake (Induction)
Intake DuctREMOVAL
CAUTION: Do not remove except when the intake duct is broken.
1. Remove the collector cover.

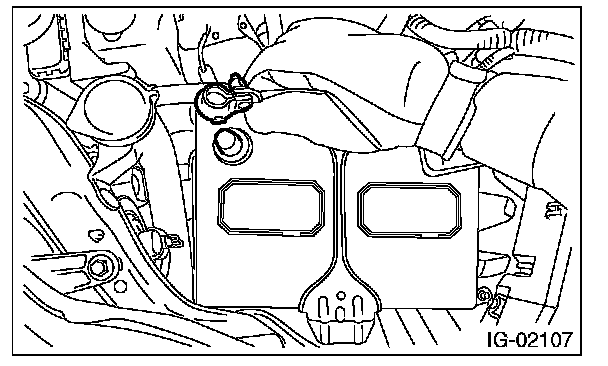

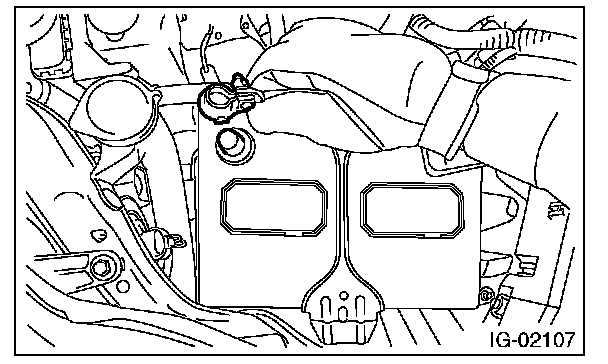

2. Disconnect the ground cable from battery.
3. Disconnect the vacuum hose from PCV pipe.

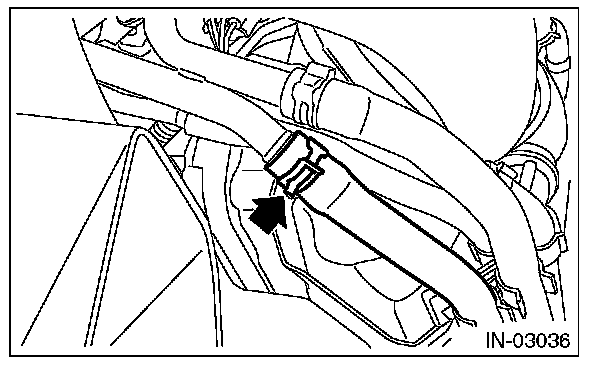

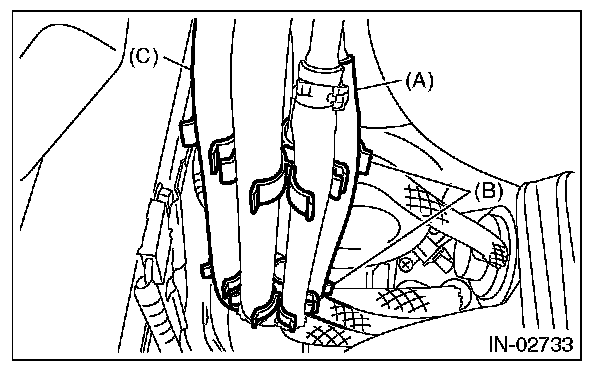

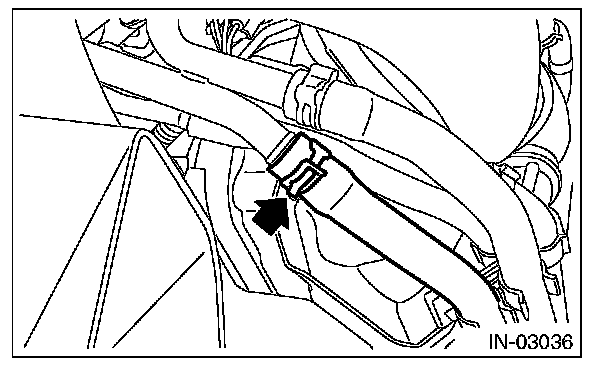

4. Disconnect the vacuum hose (A) from blow-by pipe and remove the vacuum hose (A) and vacuum hose (C) from clip (B).
5. Lift up the vehicle.
6. Remove the under cover.
7. Disconnect the connector from the wastegate control solenoid valve.

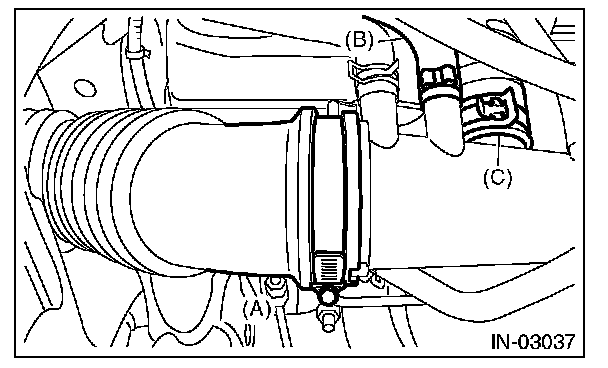

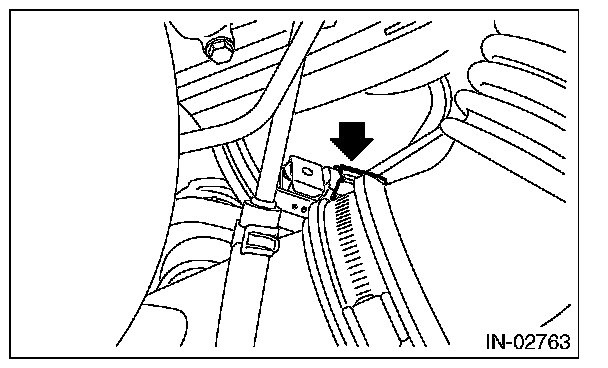

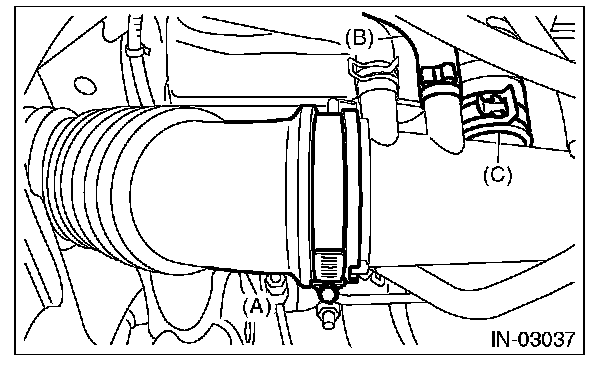

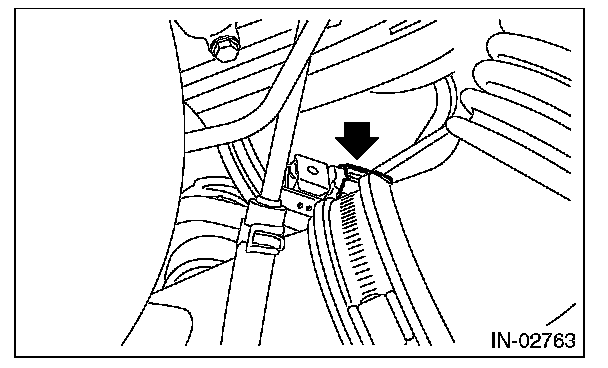

8. Loosen the clamp securing the air intake boot (A) to the intake duct, and remove the air intake boot (A) from intake duct.
9. Disconnect the vacuum hose (B) from intake duct, and unlock the clip securing the air by-pass valve (C) to the intake duct.

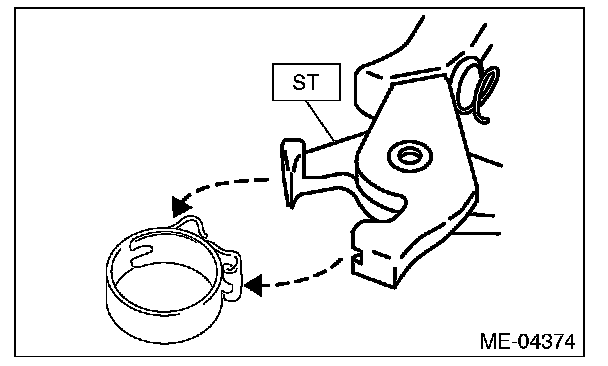

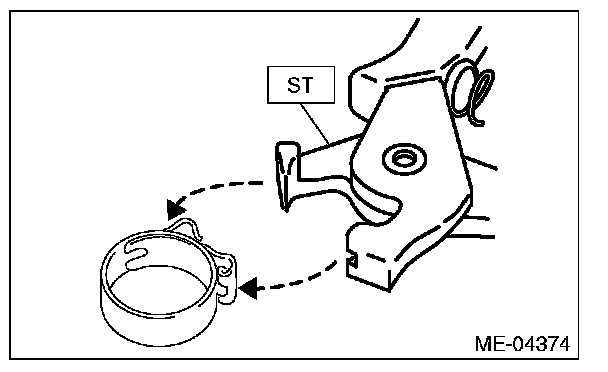

NOTE: Pinch the clamp of the vacuum hose (B) by fitting the cut out in the ST with the protrusion on the clamp as shown in the figure, and unlock the clamp.
ST 18353AA000 CLAMP PLIERS
10. Disconnect the air control hose (A).

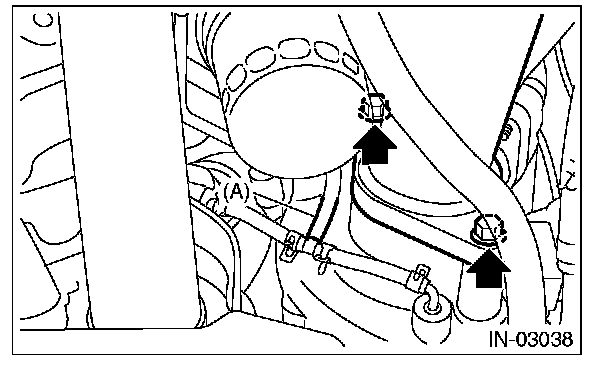

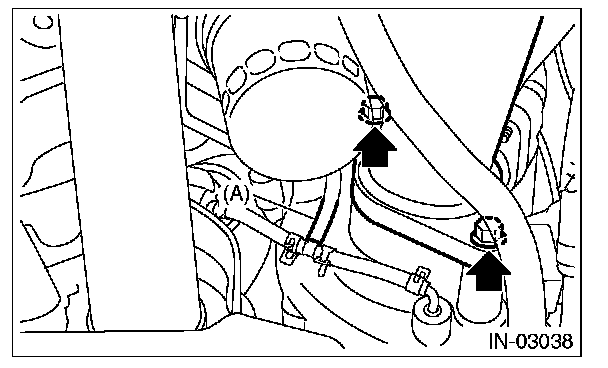

11. Remove the bolts which secure the intake duct to the turbocharger, and remove the intake duct.
INSTALLATION
1. Install the bolts which secure the intake duct to the turbocharger, and connect the air control hose (A).
NOTE:
- Use new O-rings.
- Be careful not to pinch the O-ring.
Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
2. Install the air by-pass valve (C) and air intake boot (A) to the intake duct, and connect the vacuum hose (B) to the intake duct.
NOTE: Use a new clamp for the vacuum hose (B), fit the cut out in the ST with the protrusion on the clamp as shown in the figure, and lock the clamp.
ST 18353AA000 CLAMP PLIERS
Tightening torque: 2.5 N.m (0.3 kgf-m, 1.8 ft-lb)
3. Connect the connector to the wastegate control solenoid valve.
4. Install the under cover.
5. Lower the vehicle.

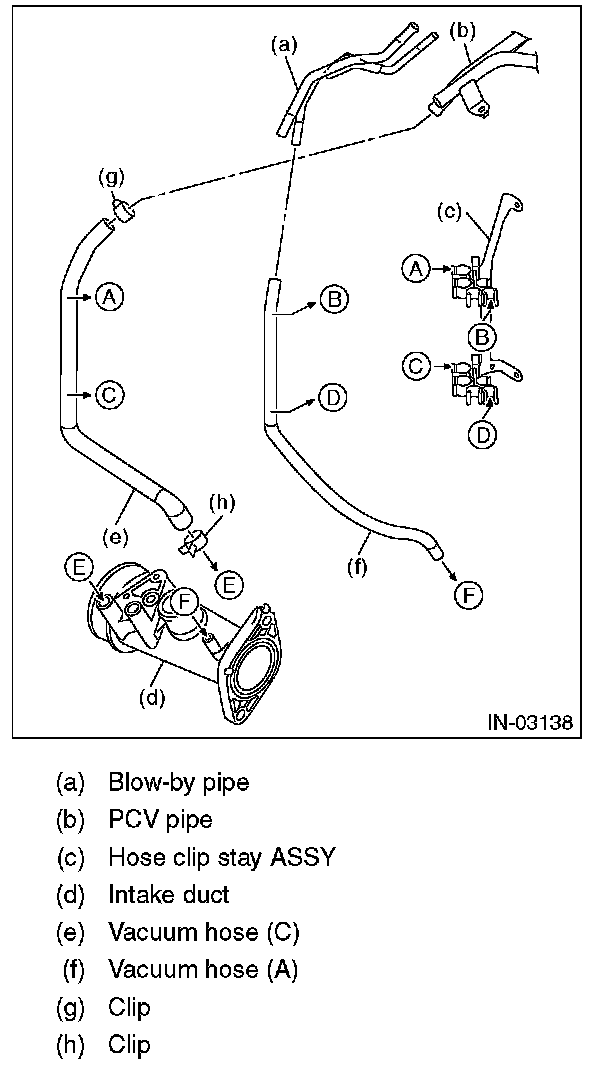

6. Install the vacuum hose (A) and vacuum hose (C) to the clip (B), and connect the vacuum hose (A) to the blow-by pipe.
NOTE: Install the vacuum hose as shown in the figure.
7. Connect the vacuum hose to PCV pipe.
8. Connect the battery ground terminal.
9. Install the collector cover.
