Cylinder Head Assembly: Specifications

Cylinder Head

In alphabetical order
Tighten all bolts 40 Nm (4.1 kgf-m, 29.5 ft-lb)
Retighten all bolts 95 Nm (9.7 kgf-m, 70.1 ft-lb)

Loosen all bolts in the reverse order of installing 180°
Loosen them further 180°.

Tighten all bolts 10 Nm (1.0 kgf-m, 7.4 ft-lb)
Retighten all bolts 30 Nm (3.1 kgf-m, 22.1 ft-lb)
Retighten all bolts 70 Nm (7.1 kgf-m, 51.6 ft-lb)
Retighten all bolts 80 - 90°
Retighten all bolts 40 - 45°

Tightening angle of the bolt not to exceed 45°

Retighten bolts (A) and (B) 40 - 45°.

Total "tightening angle" not to exceed 90°






Warping limit 0.035 mm (0.0014 in)

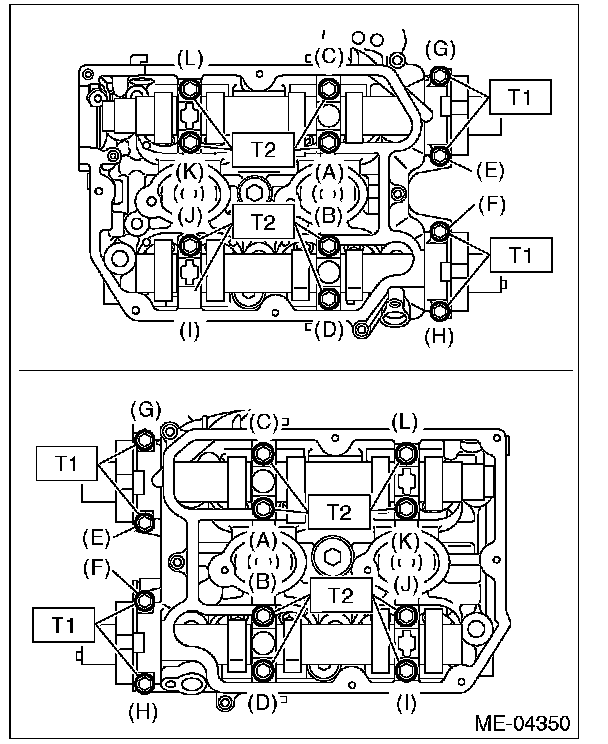

Camshaft cap





T1 9.75 Nm (1.0 kgf-m, 7.2 ft-lb)
T2 20 Nm (2.0 kgf-m, 14.8 ft-lb)
