Home >> Subaru >> 2012 >> Legacy F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Connectors >> E2-E130 & T1-T2

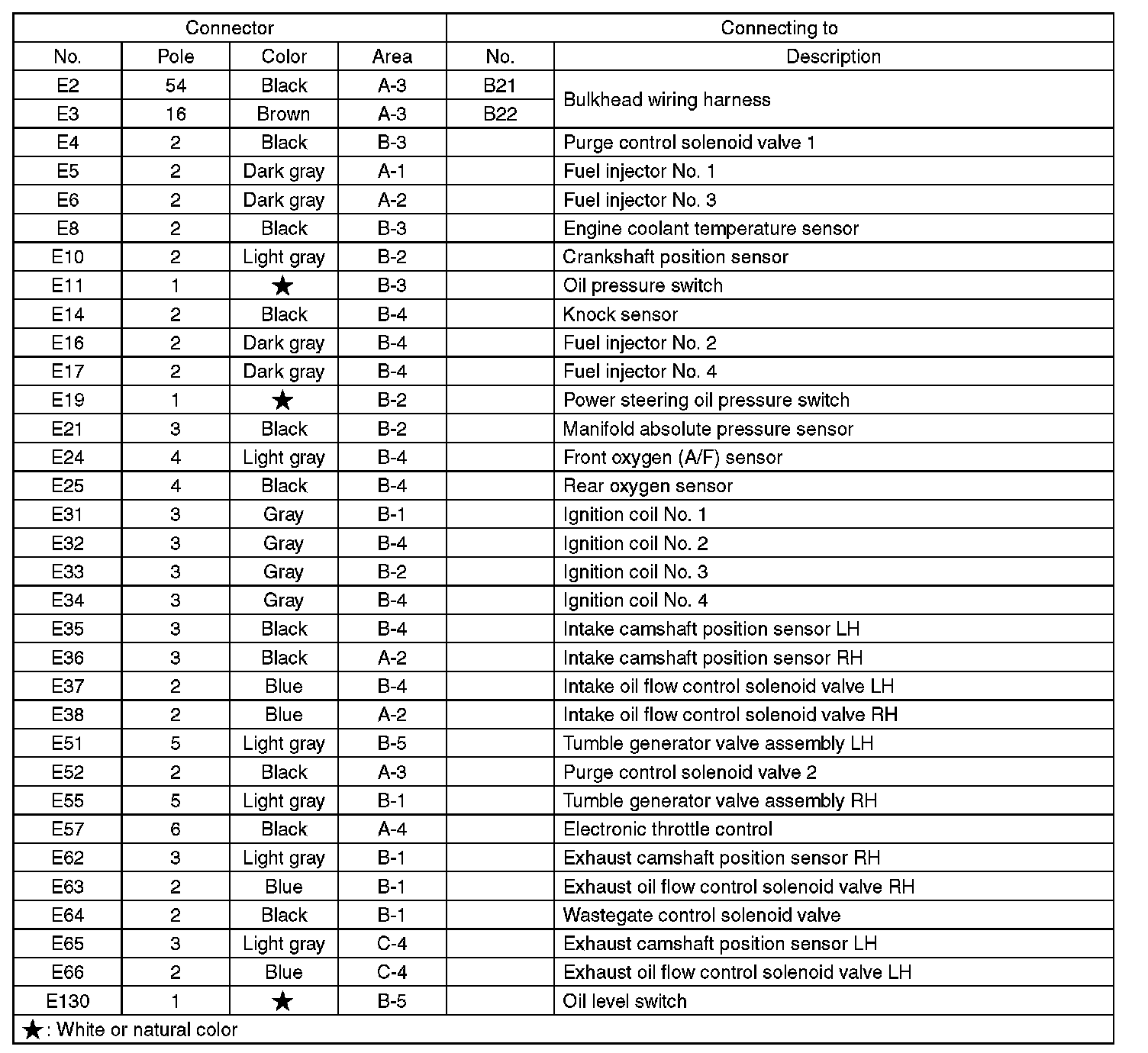

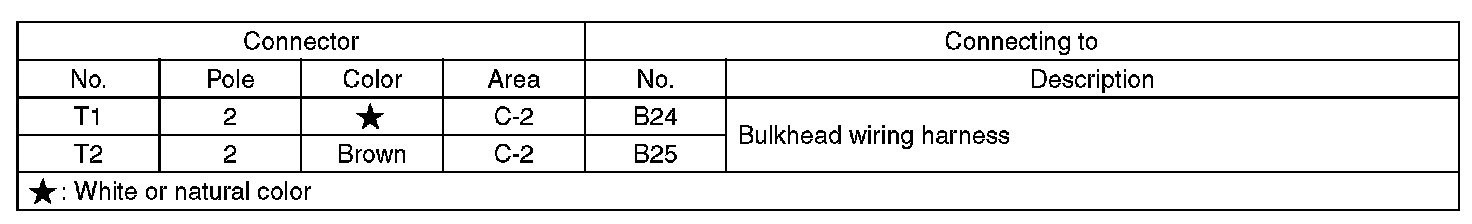

E2-E130 & T1-T2

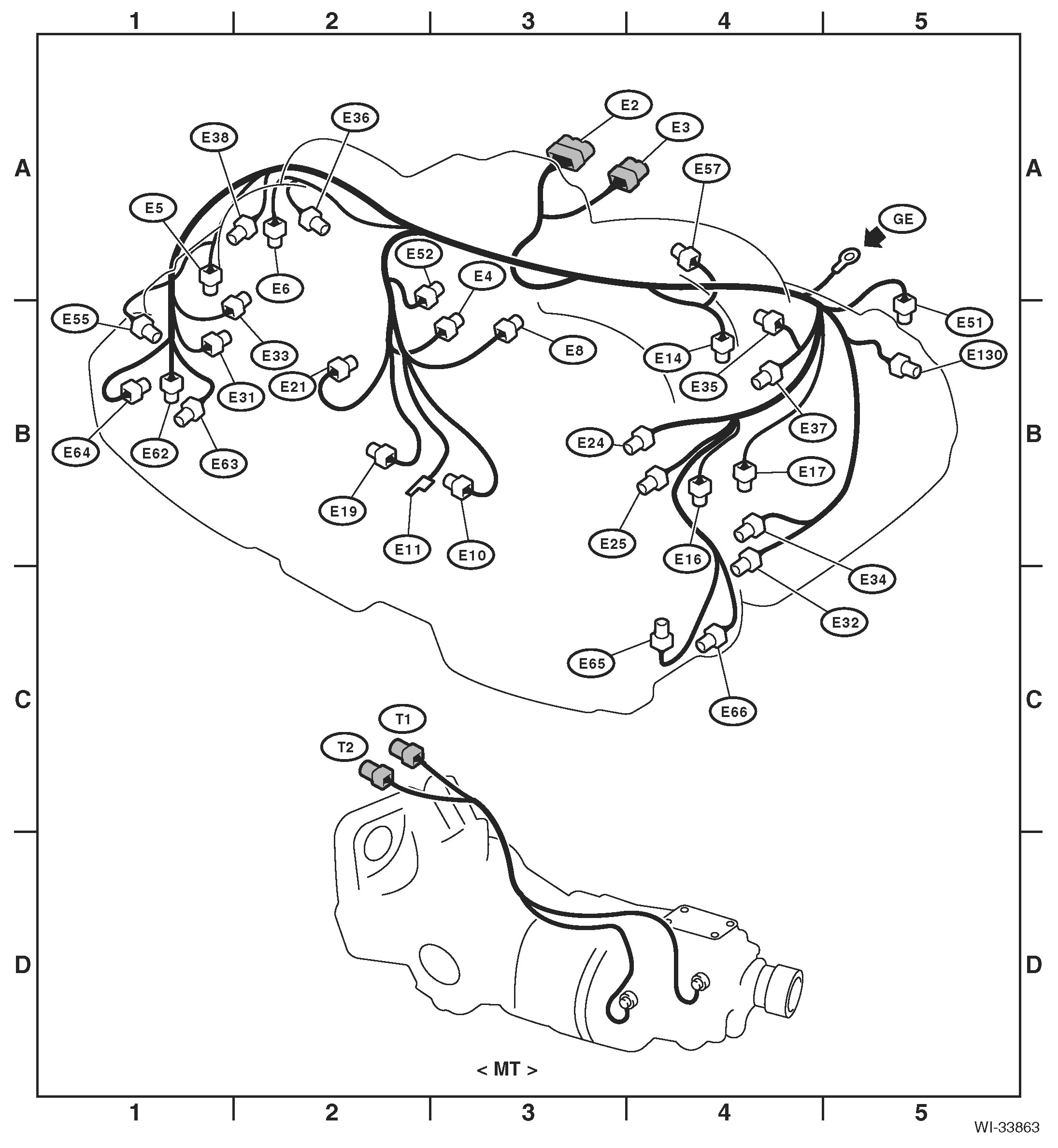

ENGINE WIRING HARNESS AND TRANSMISSION CORD
