Antenna, Radio: Testing and Inspection
AntennaINSPECTION
CAUTION: When wiping dirt off of the glass to avoid heat wire damage, be careful of the following.
- Use a dry and soft cloth.
- Move the cloth along the heat wire.

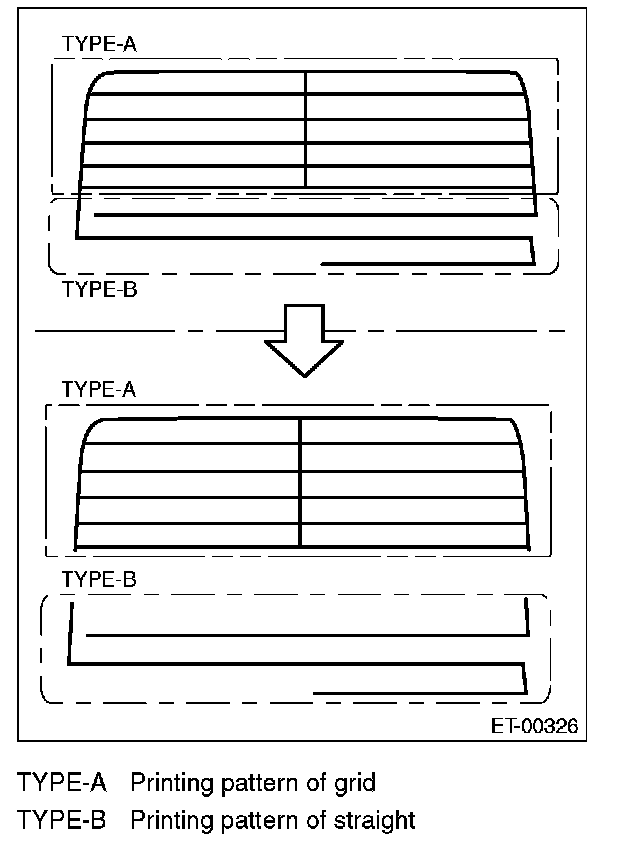

Inspection method of antenna, it is different from printing pattern of antenna.
TYPE A
1. Disconnect the ground cable from battery.
2. Remove the trim.
Sedan model: Remove the rear quarter trim rear on both sides.
OUTBACK model: Remove the rear gate trim.
3. Disconnect the antenna harness connector and antenna terminals.

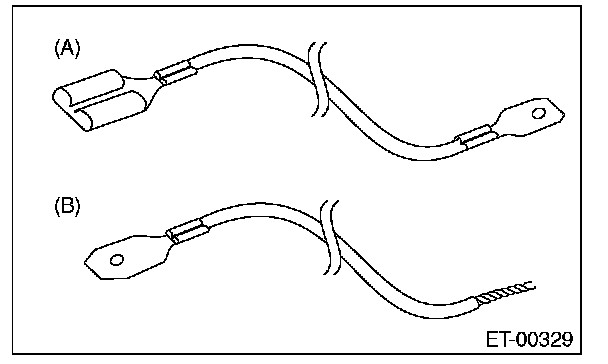

4. Prepare the extension harness (A), (B).
(A) Attach the flat terminals (male and female) to both ends of the harness of 2,000 mm (78.7 in) length (electrical wire unit dimensions approx. 2.0 sq.mm (0.0032 sq in)).
(B) Attach the flat terminal (female) to one side of the harness, another side to twist the harness of 2,000 mm (78.7 in) length (electrical wire unit dimensions approx. 2.0 sq.mm (0.0032 sq in)).

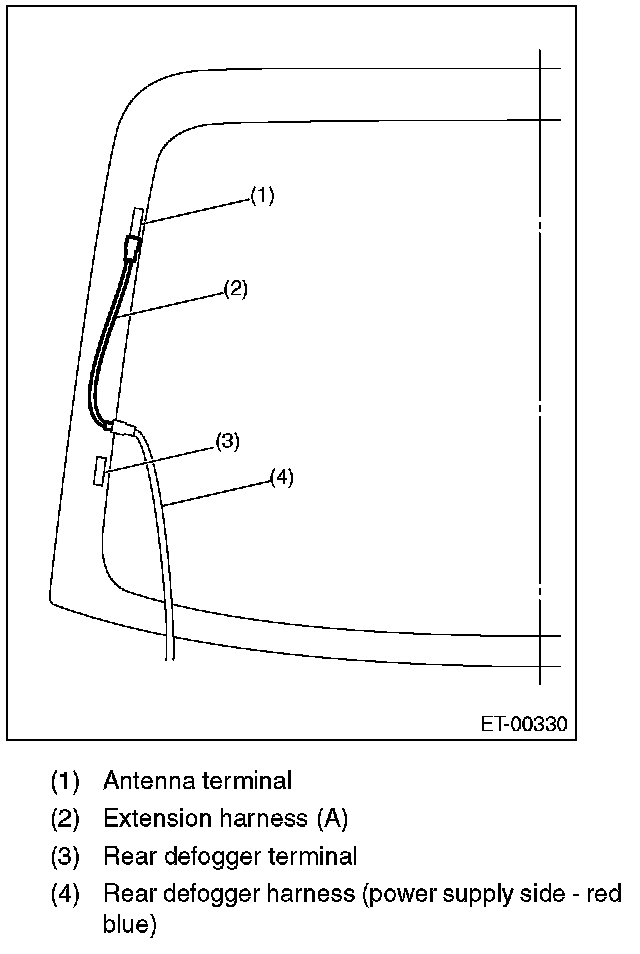

5. Connect the extension harness (A) to rear defogger harness (power supply side) terminal and antenna terminal.

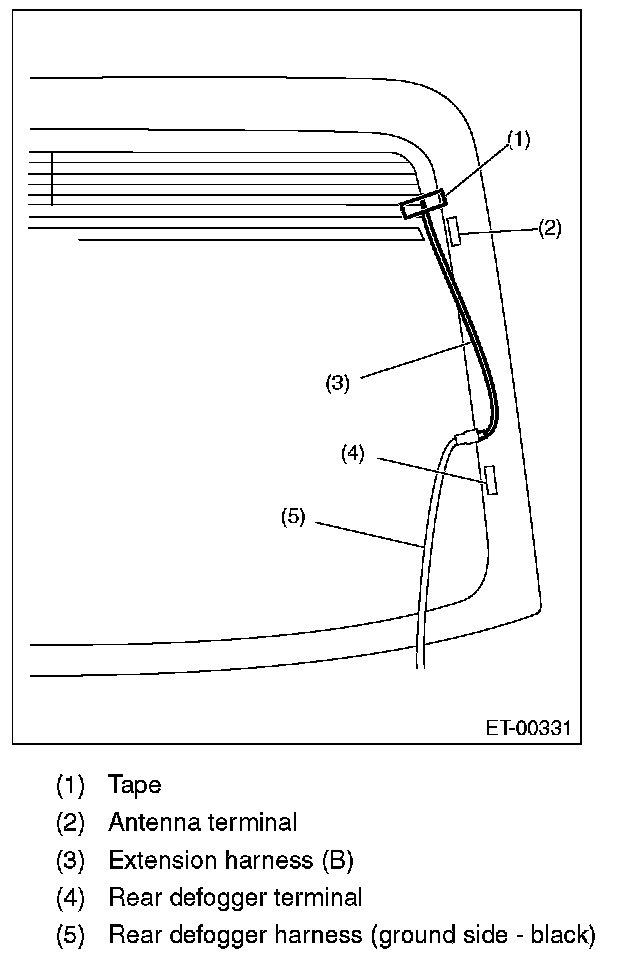

6. Connect the extension harness (B) to rear defogger harness (ground side) terminal.
7. Fasten the another side of extension harness (B) to end of antenna pattern of grid with tape.
8. Connect the ground cable to battery.
9. Turn the ignition switch to ON.
10. Turn the rear defogger switch to ON.

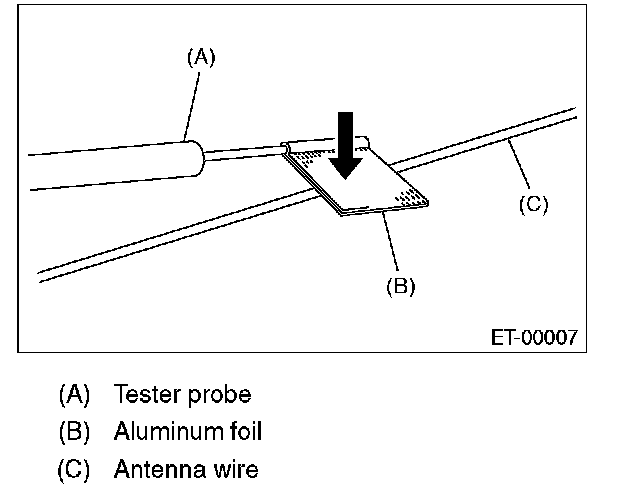

11. Wrap a piece of aluminum foil around the tip of tester probe and press foil against antenna wire with your finger.

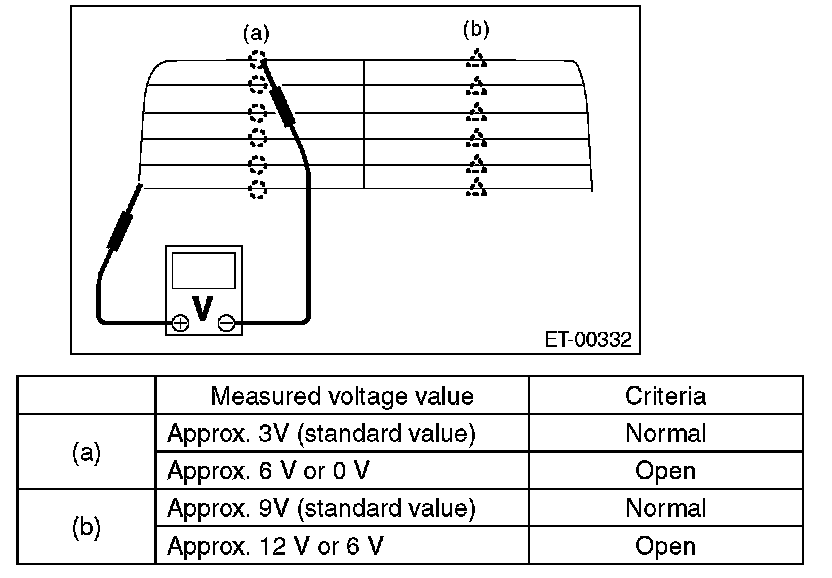

12. Measure the voltage around an antenna wire (a) and (b).
NOTE: Measuring point (a)
- If the measured value is 6 V, heat wire is open between antenna wire center and positive (+) terminal of probe.
- If it is 0 V, the circuit is open between antenna wire center and ground.Measuring point (b)
- If the measured value is 12 V, heat wire is open between antenna wire center and positive (+) terminal of probe.
- If it is 6 V, the circuit is open between antenna wire center and ground.

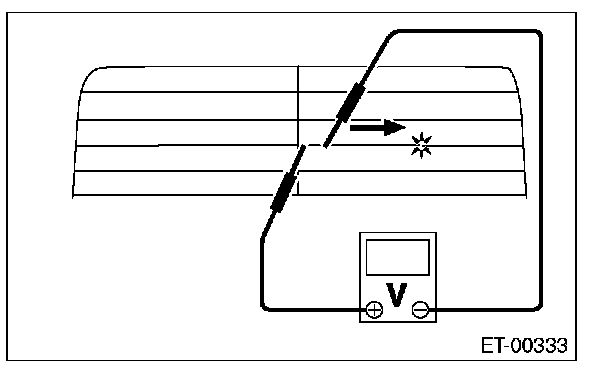

13. Fasten the voltmeter positive (+) side and negative (-) side to end of open harness positive side of step 12).
14. Search a point the voltage changes from 0 V, and move the negative (-) probe along antenna wire slowly.
15. Repair the antenna wire if the place of the open circuit is identified.
TYPE B

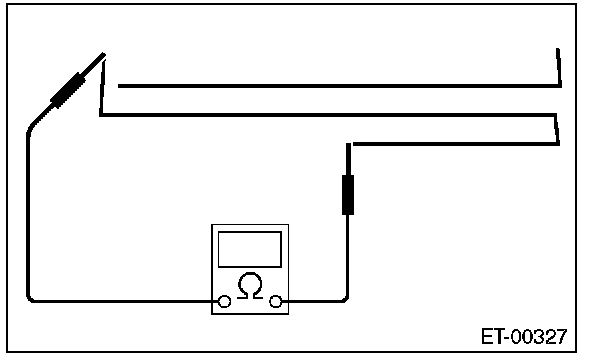

Measure the resistance between the antenna terminal and each antenna wire.
1. Disconnect the ground cable from battery.
2. Wrap a piece of aluminum foil around the tip of probe and press foil against antenna wire with your finger.

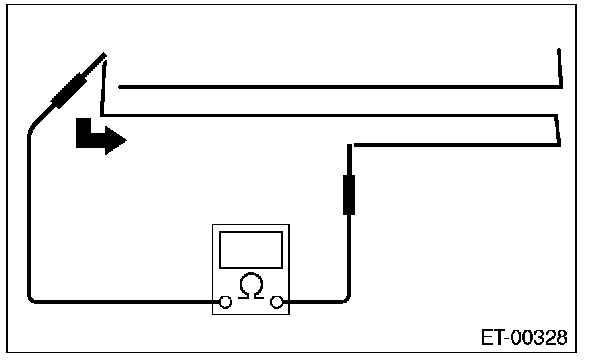

3. To locate the broken point, move the probe along antenna wire.
NOTE:
- If an antenna wire is OK, resistance will be less than 20 ohms.
- If an antenna wire is broken, resistance will be more than 1 M Ohms.
4. Repair the antenna wire if the place of the open circuit is identified.
