Removal

Air Breather Hose

REMOVAL

1) Remove the collector cover.

NOTE:

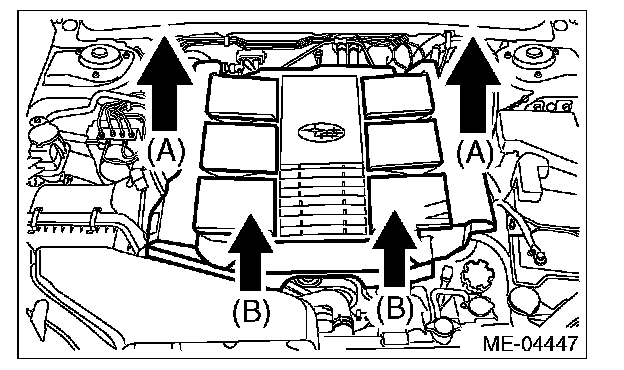

Follow the steps below when removing the collector cover.

(1) Pull up the two points at the rear (A).
(2) Pull up the two points at the front (B) while moving them forward.





2) Remove the air intake boot.

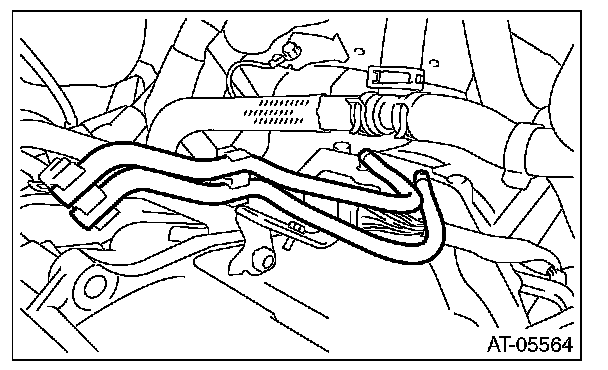

3) Remove the air breather hose.
