Ignition Control System

Diagnostics for Engine Starting Failure

IGNITION CONTROL SYSTEM

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode, Clear Memory Mode and Inspection Mode. Inspection Mode

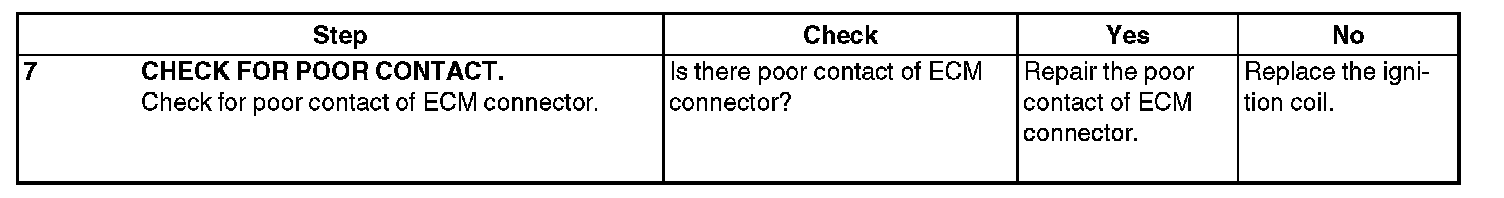

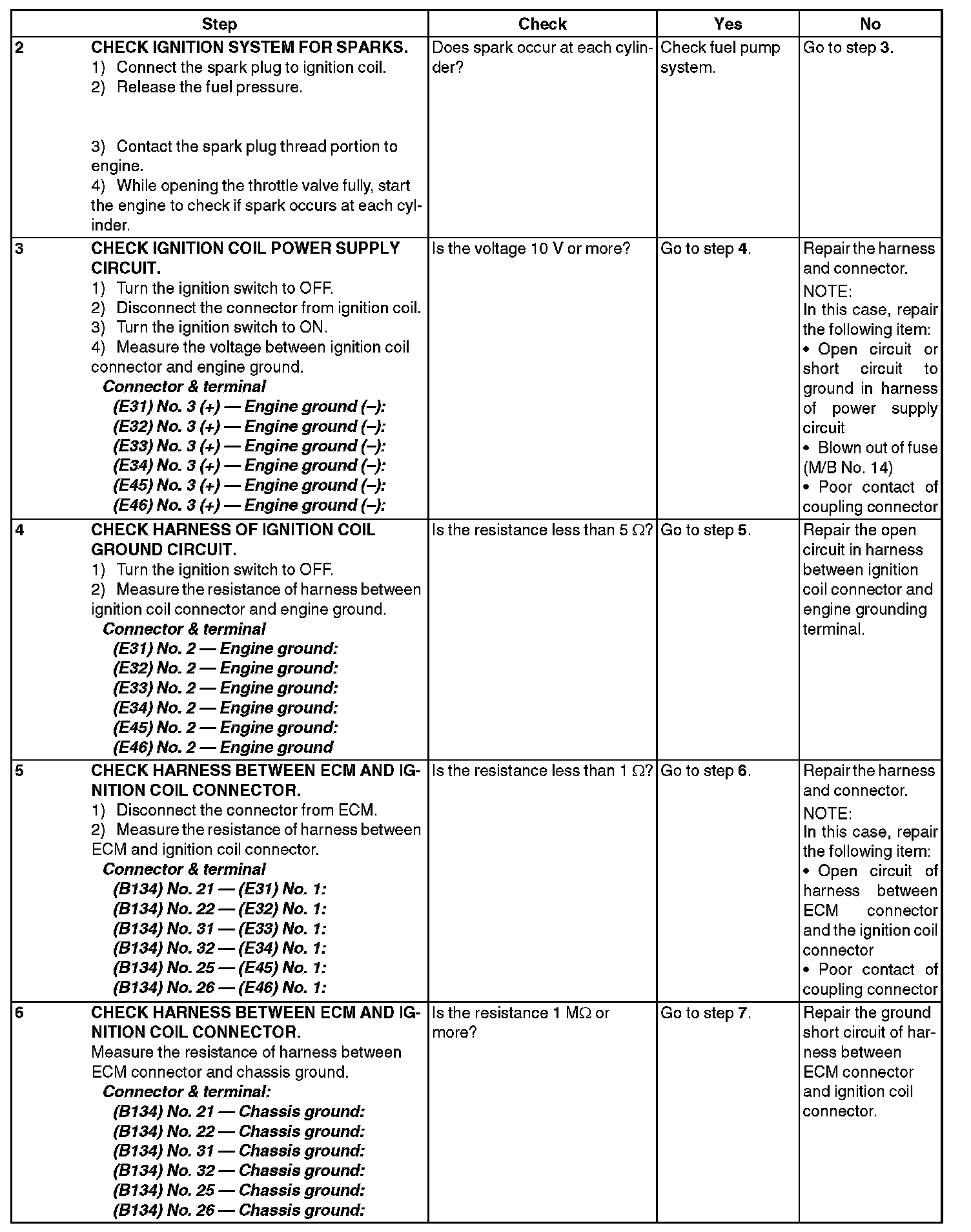

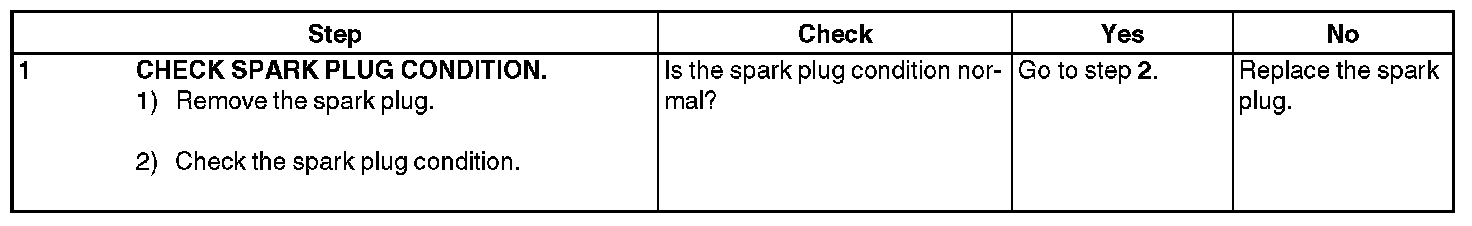

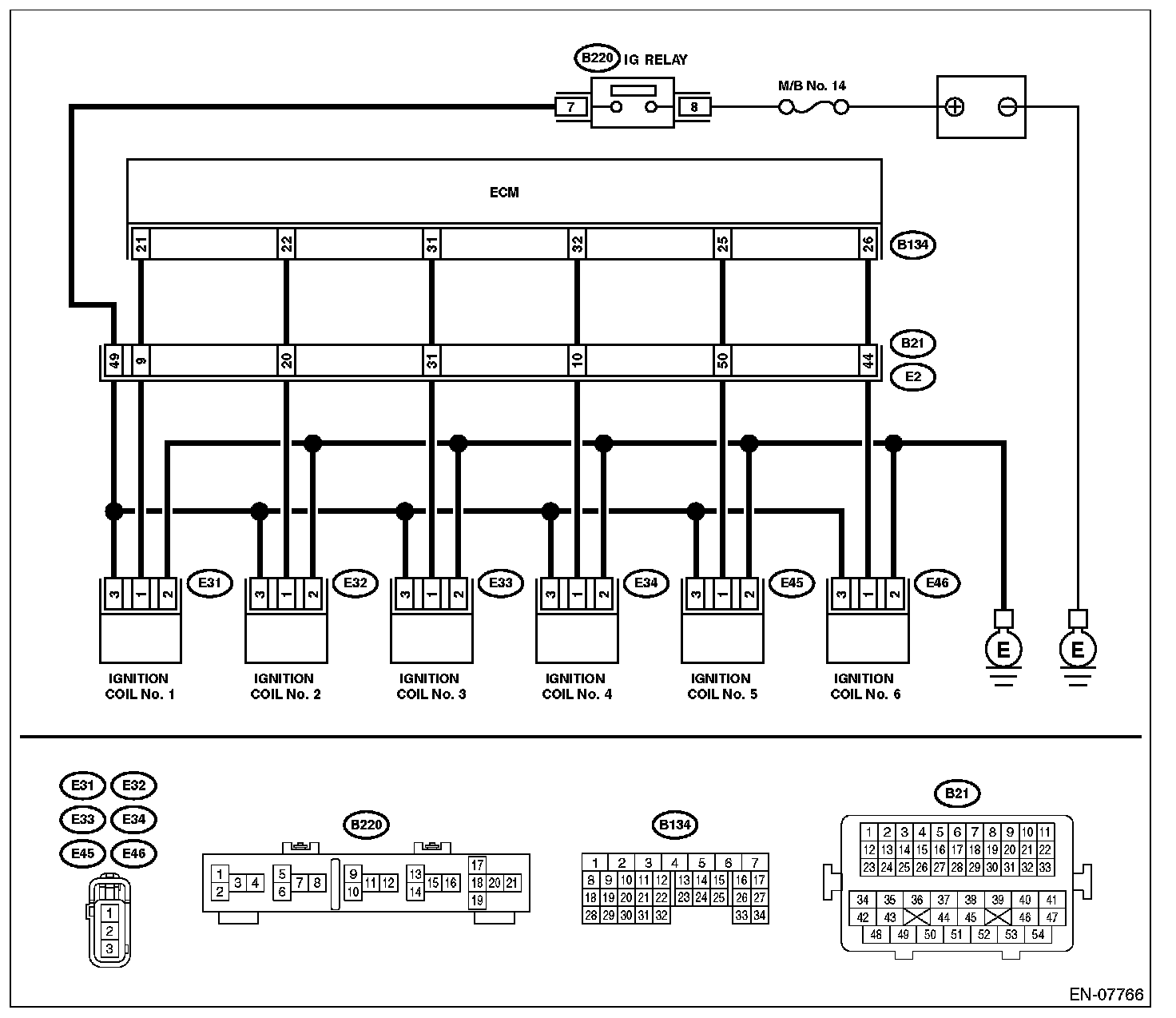

WIRING DIAGRAM:
